EM -22 ENGINE DOHC
TIMING SYSTEM
TIMING B ELT

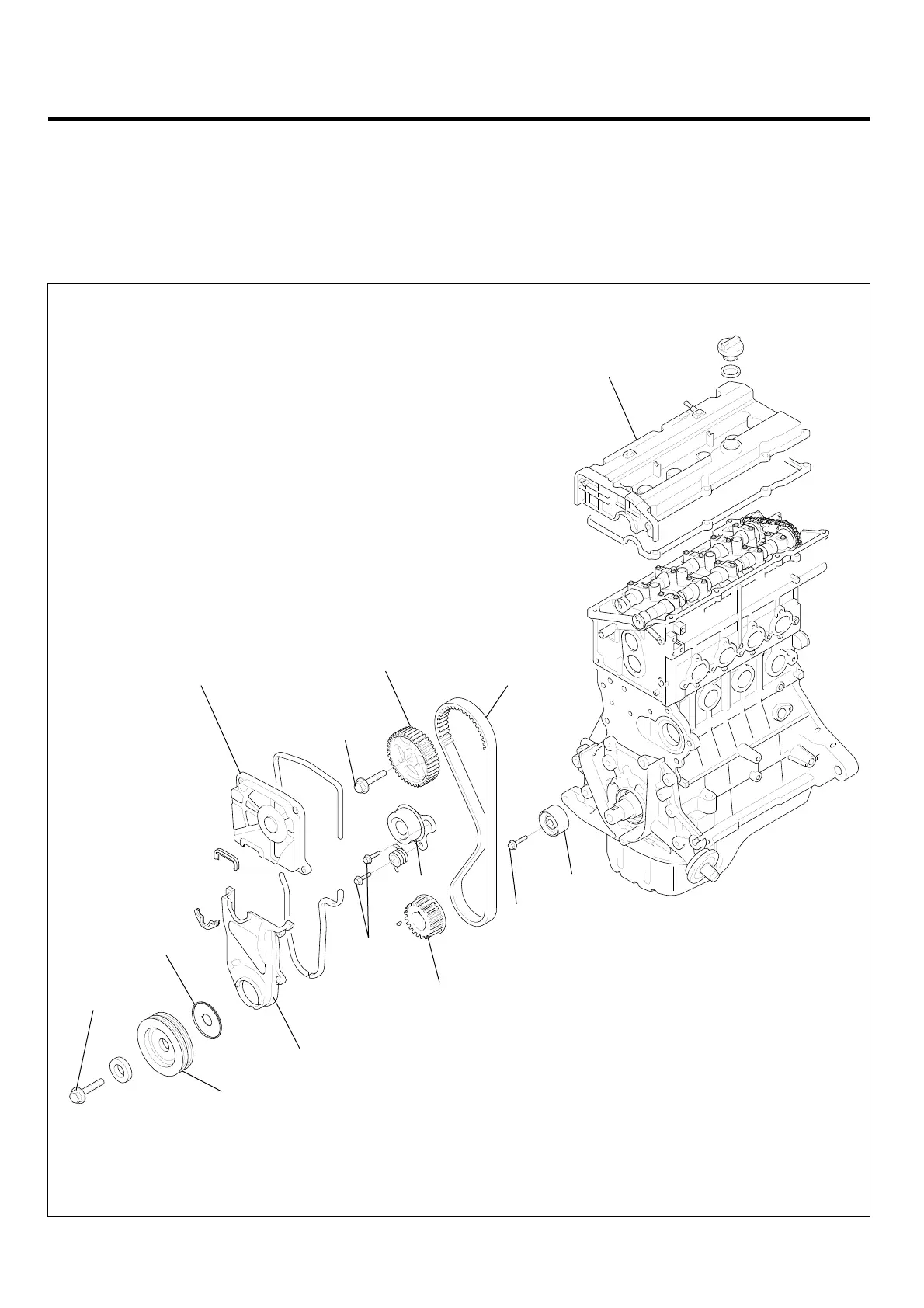

COMPONENTS E4B24FDE
Cylinder head cover
Timing belt
Idler
43 ~ 55 (430 ~ 550, 32 ~ 40)
Crankshaft sprocket
Ten sioner
20 ~ 27
(200 ~ 270,
15 ~ 20)
Timing belt lower cover
Crankshaft pulley
140 ~ 150
(1400 ~ 1500,
103 ~ 111)
Flange
Timing belt upper cover
80 ~ 100
(800 ~ 1000,
59 ~ 74)
Camshaft sprocket
TORQUE : Nm (kgf·cm, lbf·ft)
