Zenith ZPP 416 - Fly Wheel

EM -48 ENGINE DOHC
FLY WHE
EL

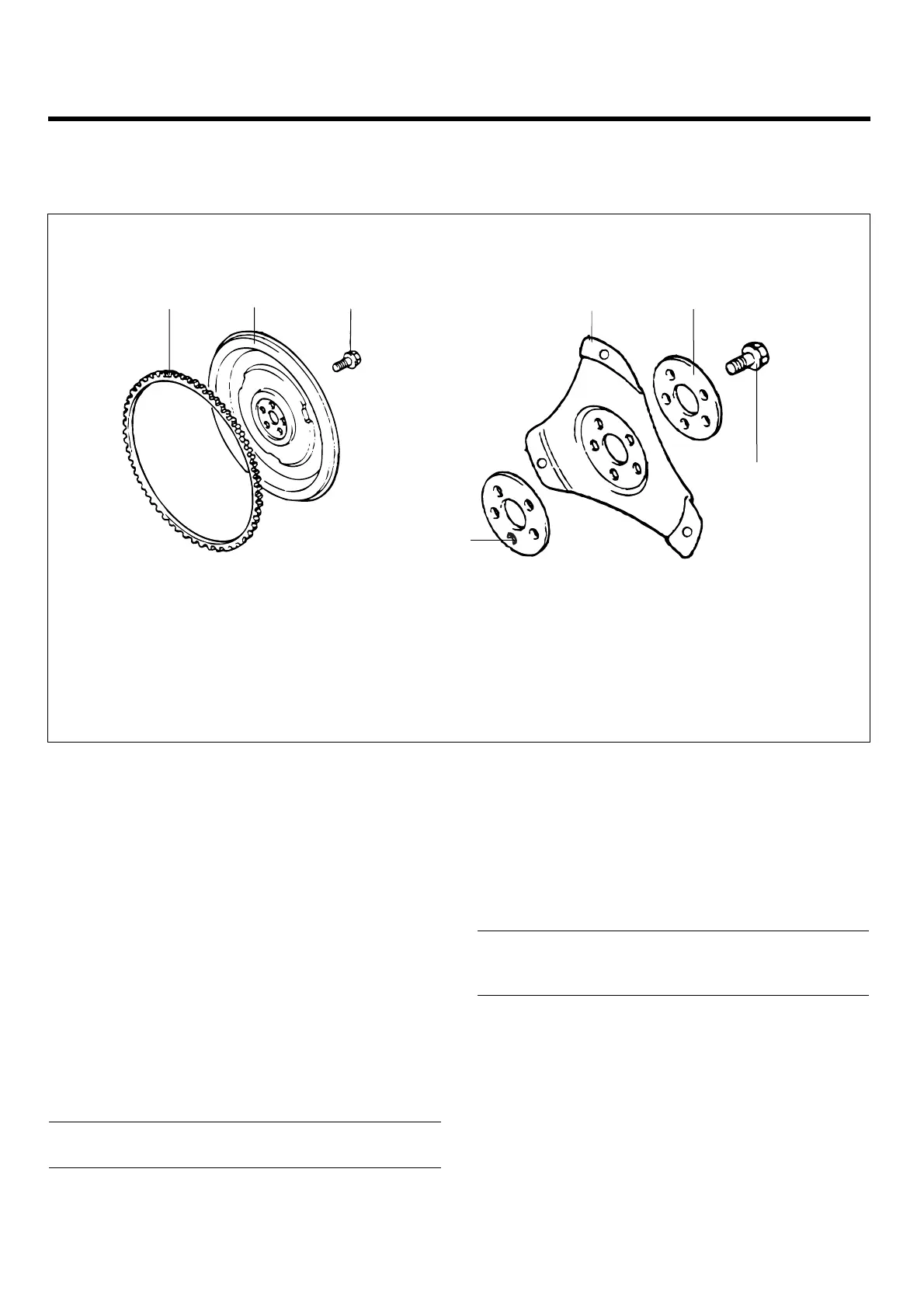

COMPONENTS E3FB04C9
Ring gear
Flywheel
120 ~ 130 (1200 ~ 1300, 89 ~ 96)
Drive plate
Adaptor plate
120-130
(1200-1300, 89-96)
Adaptor plate
TORQUE : Nm (kg.cm, lb.ft)
M/T
A/T
EDDA030A
M/T : Manual Transmission Vehicles
A/T : Automatic Transmission Vehicles
DISASSEMBLY E543FBCD
1. Remove the Transmission and clutch.
2. Remove the flywheel.
INSPECTION EB2E8F43
1. Check the clutch disc contacting surface of the fly-
wheel for damage and wear. Replace the flywheel if
excessively damaged or worn.
2. Check the clutch disc contacting surface of the fly-
wheel for runout.
Standard value
Flywheel run - out : 0.1 mm (0.0039 in.)
3. Check the ring gear for damage, cracks, and wear,
and replace if necessary.
REASSEMBLY E650BE51
Install the flywheel assembly and tighten the bolts to the
specified torque.
Tightening torque
Flywheel bolt :
120 ~ 130 Nm (1200 ~ 1300 kg.cm, 89 ~ 96 lb.ft)
ZENITH POWER PRODUCTS - 416
