EM -14 ENGINE DOHC
11. Crank the engine and read the gauge.
Standard value : 1500kpa (15Kg/cm², 218 psi)
Limit : 1400kpa (14Kg/cm², 203 psi)
12. Repeat steps 9 to 11 over all cylinders, ensuring that
the pressure differential for each of the cylinders is
within the specified limit.
Limit
Max 100 kpa (1.0 kg/cm², 14 psi) between cylinders
13. If a cy
linder’s compression or pressure differential is
outsi
de the specification, add a small amount of oil
throu
gh the spark plug hole, and repeat steps 9 to 12.
1) If the addition of oil makes the compression to
rise, it is likely that there may be wear between
the piston ring and cylinder wall.
2) If compression remains the same, valve seizure,
poor valve seating or a compression leak from
the cylinder head gasket are all possible causes.
Tightening torque
Spark plug : 20 ~ 30 Nm (200 ~ 300 kg.cm, 14 ~ 22 lb.ft)

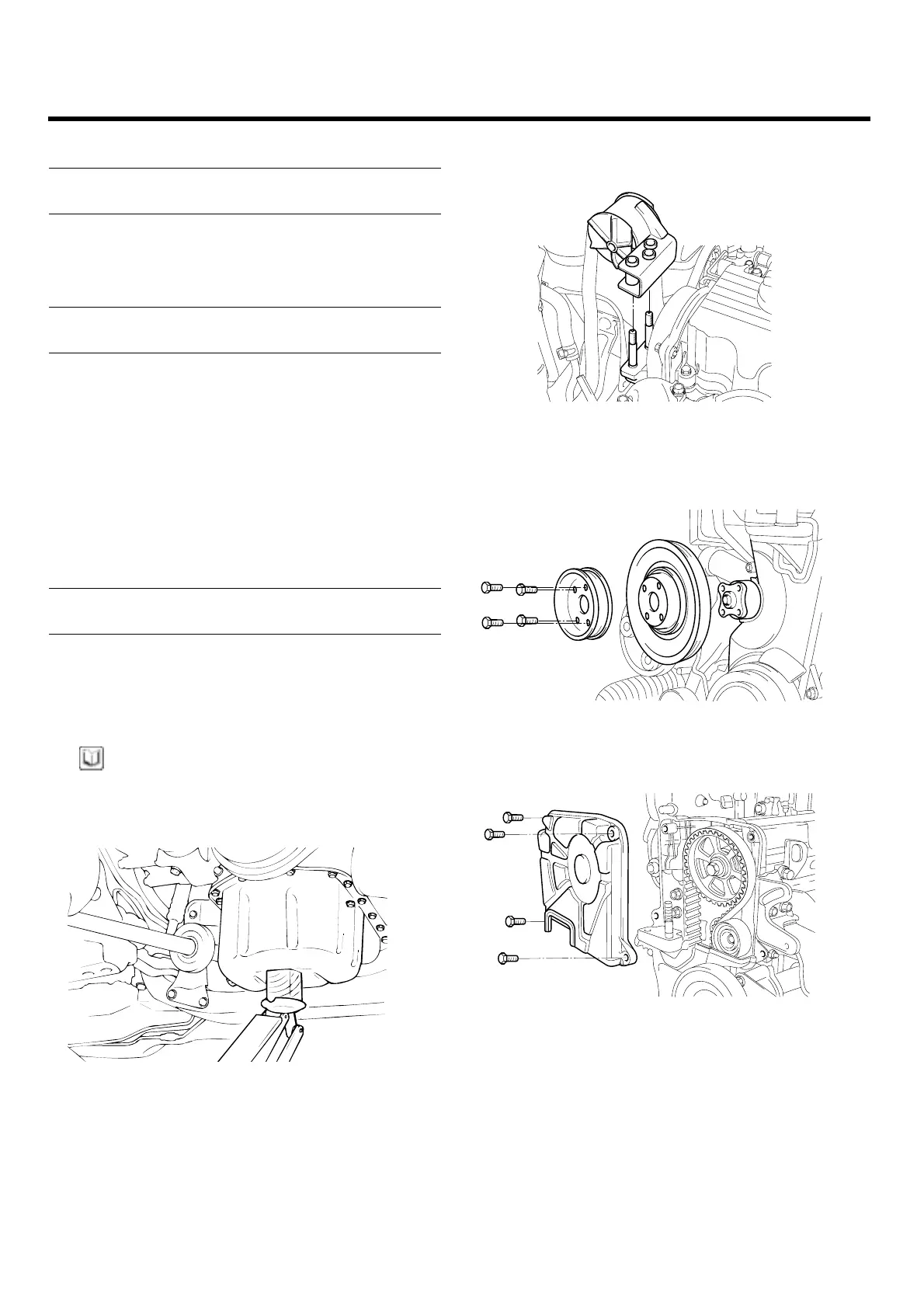

ADJUSTING TIMING BELT TENS ION
1. Rotate the steering wheel counter-clockwise
throughly.
NOTE
Do watch not to over load.
2. Lift the vehicle by using of jack.
KCDA125K
3. Remove the engine support bracket. (14mm bolt and
2nuts, 17mm bolt)
KDDC003B
4. Remove the drive belts and the water pump pulley.
(10 mm 4 bolts)
KD
DC004B
5. Remove the timing belt upper cover. (10 mm 4 bolts)
KCDC002C
