TIMING SYSTEM EM -25
INSPECTION E193FC6F

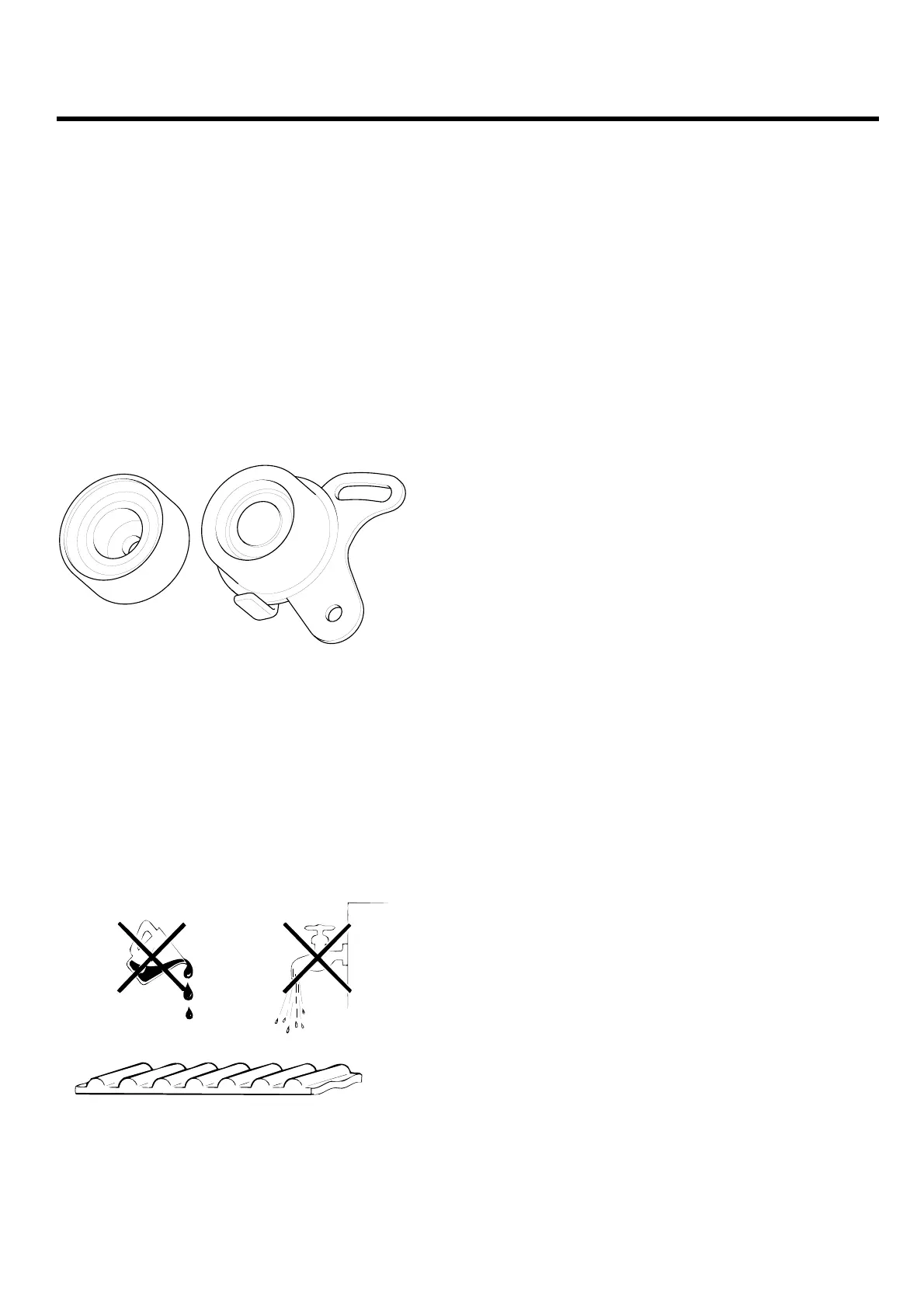

SPROCKETS TENSIONER PULLEY, AND IDLER
PULLEY
1. Check the camshaft sporcket, crankshaft sprocket,
tensioner pulley, and idler pulley for abnormal wear,
cracks, or damage.
Replace as necessary.
2. Inspect the tensioner pulley and the idler pulley for
easy and smooth rotation and check for play or noise.
Replace as necessary.
3. Replac
e the pulley if there is a grease leak from its
bearin
g.
EDKD
106A
TIMING BELT
1. Chec
k the belt for oil or dust deposits. Replace, if
nec
essary.
Smal
l deposits should be wiped away with a dry cloth
or p
aper. Do not clean with solvent.
2. When the engine is overhauled or belt tension ad-
justed, check the belt carefully. If any of the following
flaws a re evident, replace the belt with a new one.
OIL
WATER
EDDA093B
ZENITH POWER PRODUCTS - 416
