EM -24 ENGINE DOHC

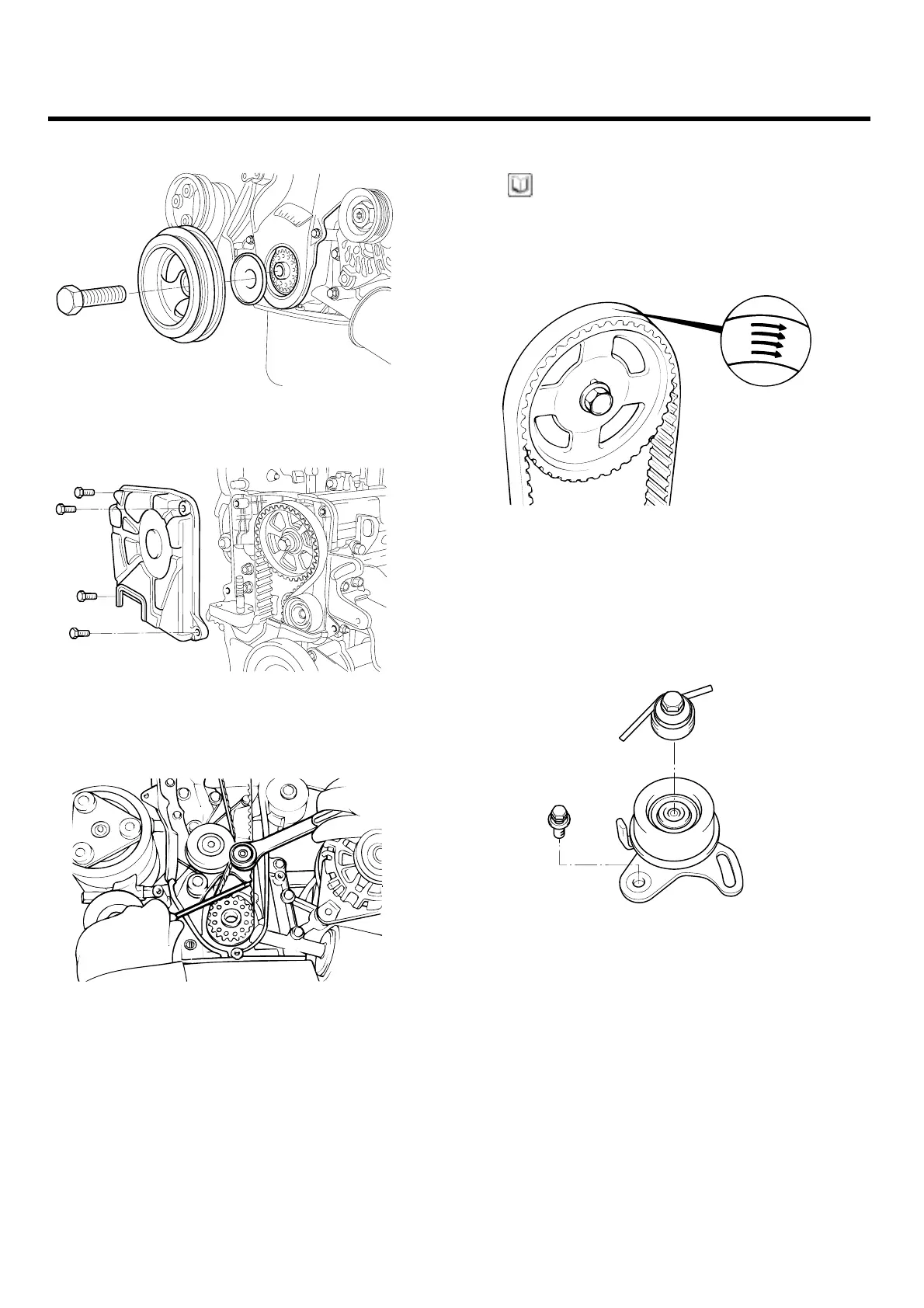

7. Remove the crankshaft pulley.
KDDC007B
8. Remove the timing belt cover.
KCDC002C
9. Move the timing belt tensioner pulley toward the
coolant pump and temporarily secure it.
EDDA092A
10. Remove the timing belt.
NOTE
If the timing belt is reused, mark with an arrow to in-
dicate direction of rotation (on the front of the engine)
to make sure that the belt is reinstalled in the same
direction as before.
ECDA121B
11. Remove the camshaft from the camshaft sprocket.
12. Remove the crankshaft sprocket and flange.
13. Remove the timing belt idler.
14. Remove the timing belt tensioner.
KDPC008C
ZENITH POWER PRODUCTS - 416
