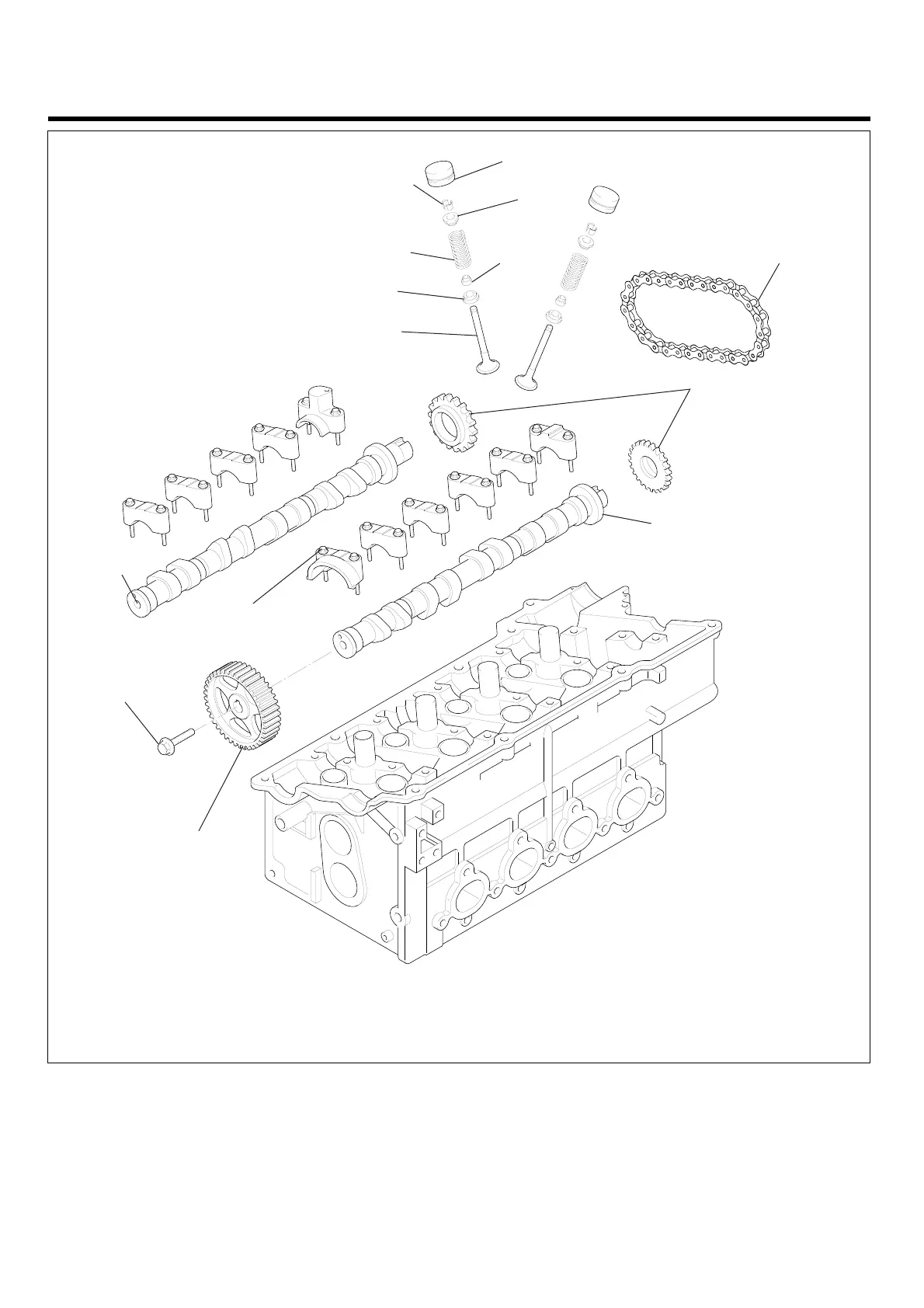

EM -32 ENGINE DOHC
HLA
Retainer
Retainer
lock
Valve spring
Spring seat
Valve
Stem seal
Timing chain
Chain sprocket
Exhaust camshaft
Camshaft
sprocket
80 ~ 100 (800 ~ 100,
59 ~ 74)
12 ~ 14
(120 ~ 140, 9 ~ 10)
Intake
camshaft
TORQUE : Nm (kgf·cm, lbf·ft)
EDKD11 1A
