MAIN MOVING SYSTEM EM -43

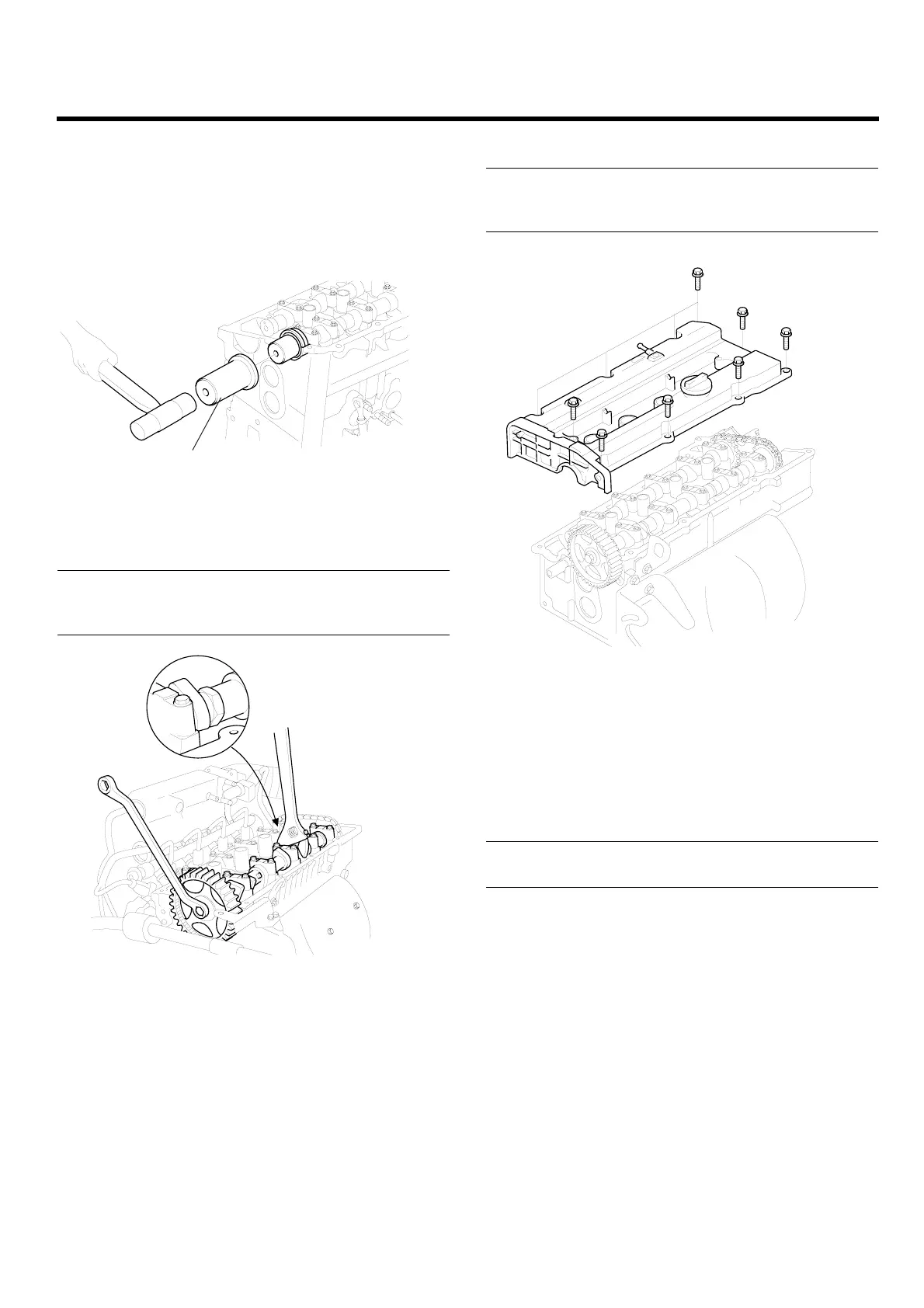

6. Using the special tool, camshaft oil seal installer
(09221 - 21000), press fit the camshaft oil seal. Be
susre to apply engine oil to the oil seal lip. Insert the
oil seal along the camshaft front end and install by
driving the installer with a hammer until the oil seal
is fully seated.
09221-21000
EDKD125A
7. Install the camshaft sprocket bolts to the specified
torque.
Tightening torque
Camshaft sprocket bolt :
80 ~ 100Nm (800 ~ 1000 kg.cm, 59 ~ 74 lb.ft)
EDKE105A
8. Align the camshaft sprocket and crankshaft sprock et
timing marks. Place the poston in the No.1 cylinder to
top dead center on the compression strokie. (Refer to
the timing belt)
9. Install the cylinder head cover.
Tighte
ning torque
Cylind
er head cover bolts :
8~10Nm
(80~100kg.cm,6~7lb.ft)
EDKE104A
10. Install the spark plug cables, ignition coil assembly
and cylinder head center cover.
11. Install the timing belt and then tighten the timing belt
tensioner pulley.
12. Install the timing belt cover.
Tightening torque
Timing belt cover : 8 ~ 10Nm (80 ~ 100 kg.cm, 6 ~ 7 lb.ft)
