MAIN MOVING SYSTEM EM -51

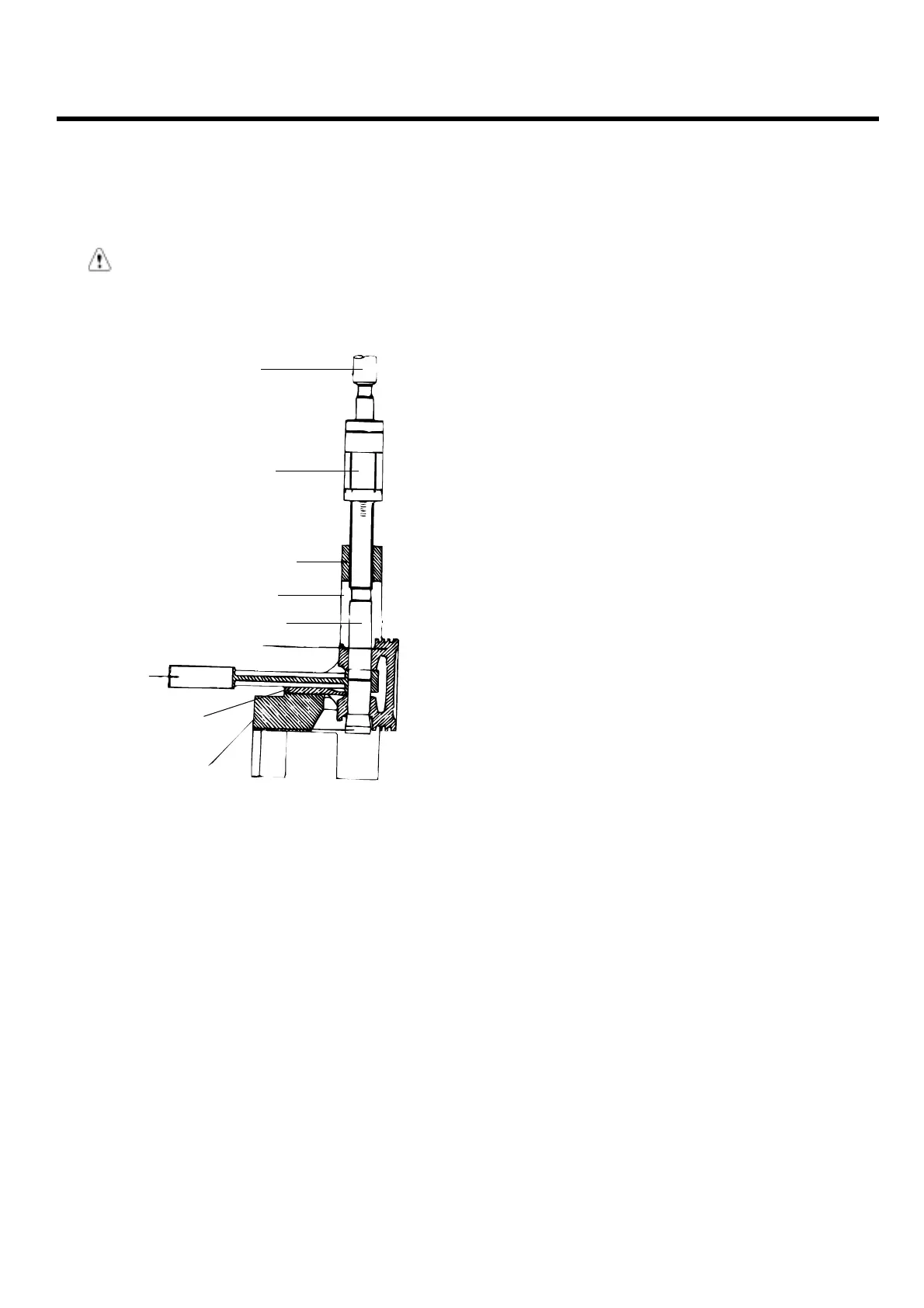

7. Insert the installer tool through the hole in the arch of
the support fixture and use an hydraulic press to force
the piston pin through the rod little end. Continue
pressing until the pin guide falls free and the installer
tool seats against the top of the arch.
CAUTION
Do not exceed 1250 ± 500 kg (2765 ± 1102 lb) of
force when the installing tool seats against the top
of the arch.
Press
Installer
Support fix
Adapter
Piston pin
Piston
Connecting
rod
Universal fork insert
Pin guide
H
EW20A 55
ZENITH POWER PRODUCTS - 416
