BioHarness Bluetooth Developer Kit User Manual
Page 18
This document is confidential and does not constitute a public document.
Possession should only be under NDA or other relevant confidentiality agreement.
This document has been prepared by Zephyr Technology Ltd and is not to be distributed, copied or reproduced without permission.
9700.0026 © Zephyr Technology 2010 2010-06-02

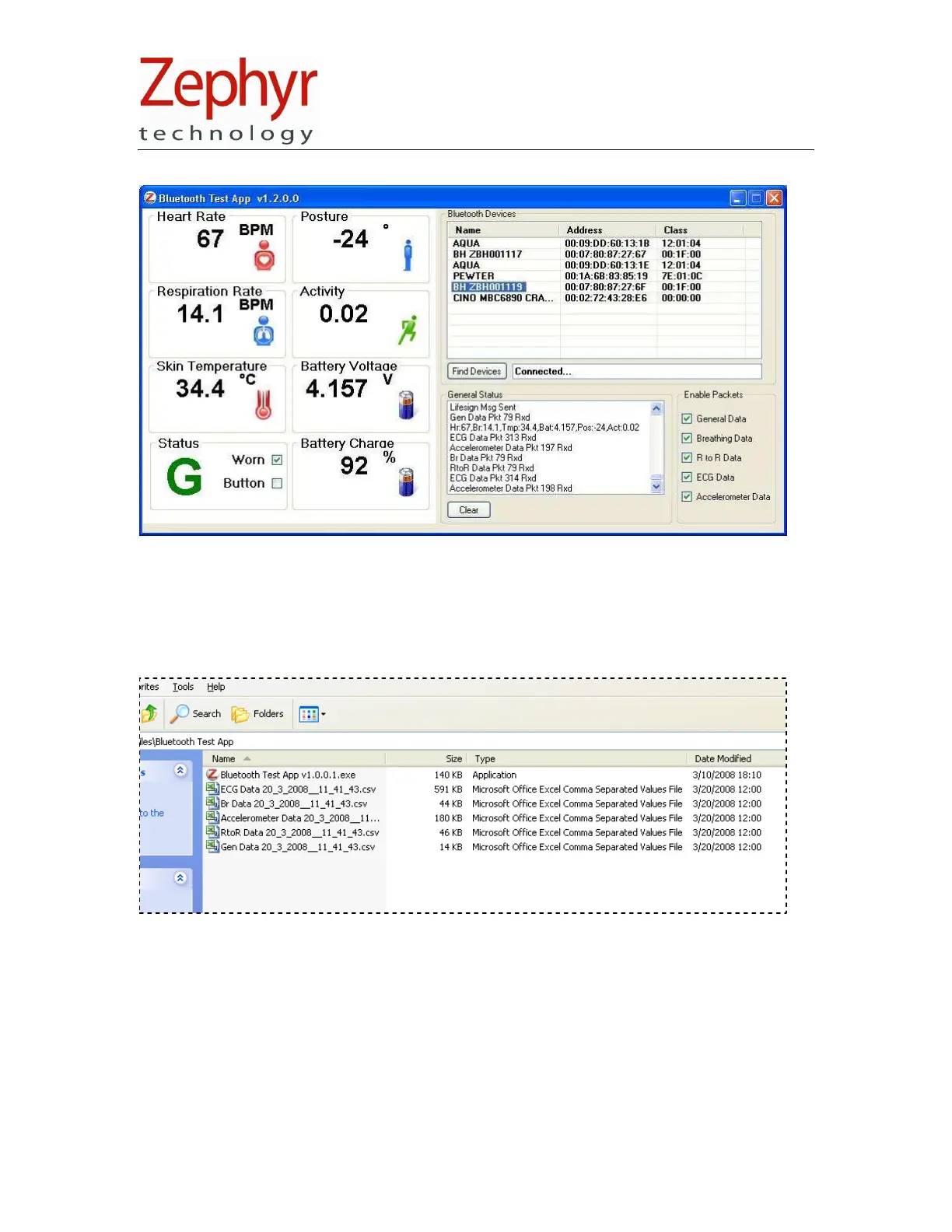

The PC application should now start receiving data from the connected BioHarness:
While connected, the PC application writes all received data to .csv files in the same folder as the
executable so the data can be retrieved later. The files can be accessed when the PC Application
is closed using the “close” icon in the top right corner.
Close the GUI to stop communicating with the BioHarness and close the .csv files:
Note there are five files generated:
• Gen Data Packets: data with 1.008 second resolution e.g. Heart Rate, Battery Voltage.
• Br Data Packets: Breathing Waveform.
• R to R Data Packets: R to R data.
• ECG Data Packets: ECG waveform.
• Accelerometer Data Packets: X,Y & Z axis waveforms.
For more details on the data within each packet, see Section 4.
