4.2. Logged Data
Log data descriptions are fully described in the BioHarness Bluetooth Logging System Interface
[3]
Parameter Reporting
Frequency
(Hz)
Range Units Description
Heart Rate 1 0 – 240 BPM
Breathing Rate 1 0 – 70 BPM
Skin Temperature 1 10 – 60 °C
Posture 1 ±180 Degrees Vertical = 0°
Vector Magnitude 1 ±3.3 VMU(g)
Peak Acceleration 1 ±5.7 g
Battery Voltage 1 3.5 – 4.2 V
Breathing Wave Amp 1 V Indicative
ECG Amplitude 1 V Indicative
ECG Noise 1 V Indicative
X Acceleration Min 1 ±3.3 g
X Acceleration Peak 1 ±3.3 g
Y Acceleration Min 1 ±3.3 g
Y Acceleration Peak 1 ±3.3 g
Z Acceleration Min 1 ±3.3 g
Z Acceleration Peak 1 ±3.3 g
Breathing Sensor output 18 0 - 4095 bits
HR RR Value 18 ms Alternating ± sign on new
detection
Skin Conductance Level 1 nS Indicative

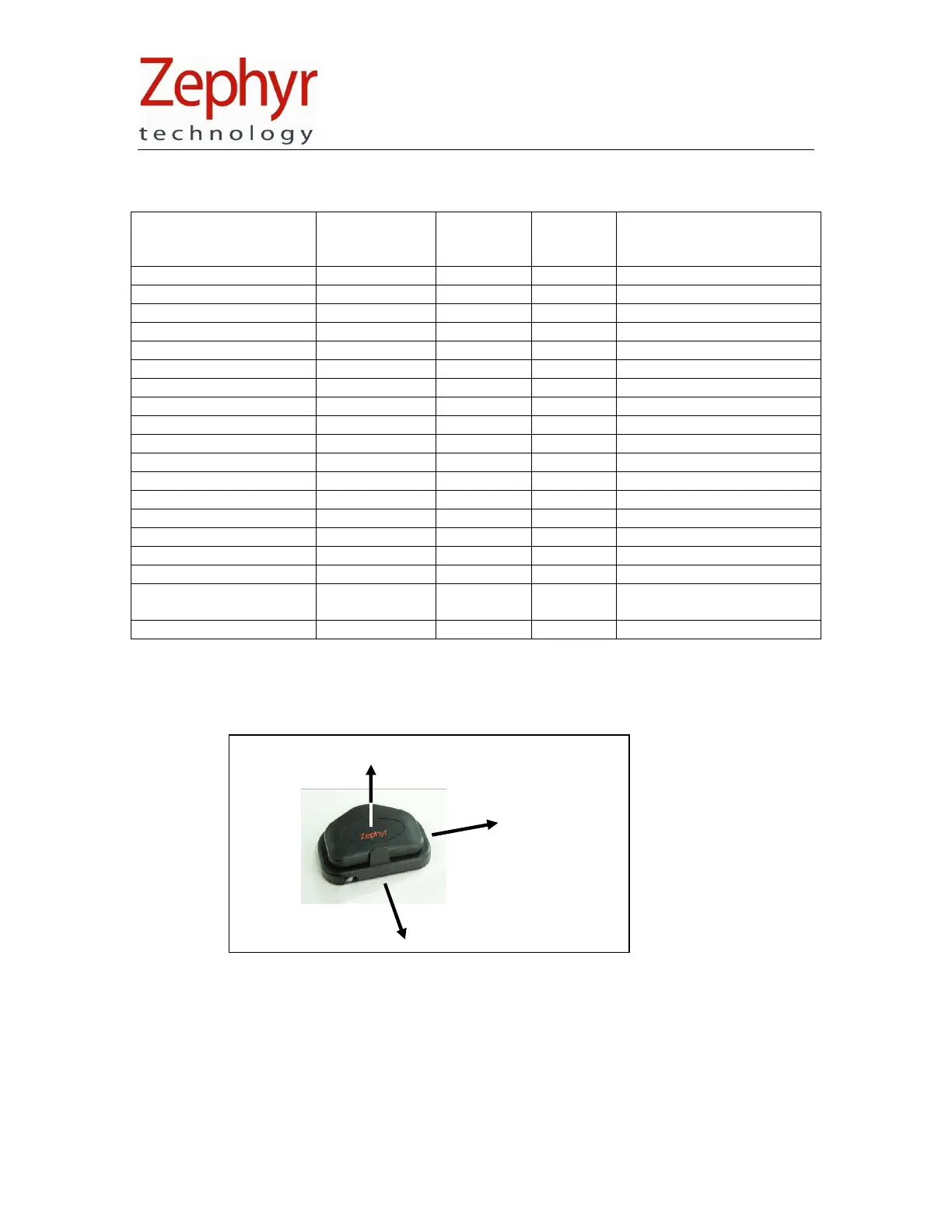

Orientation of Vertical/Lateral/Sagittal axes for acceleration data – the arrows show the direction
for positive data values:
