Installation & Operation • 11
INSTALLATION & OpERATION
6. Place the required number of shims under each base or optional hat channel rail to equal the highest point. Shims should not extend
beyond the front case bases or they will interfere with installing trim. The shims should be oriented to sit under the front and rear bends of
each base. Tape all shims in place (See Figure 11).
7. The case is designed with minimal gaps between adjacent doors to provide a clean appearance. To maintain even, consistent gaps and
proper door operation, the case must be leveled front-to-back and side-to-side. Ensure that the case is set square to within 1/8" (See
Figure 12). After the case is set, use at least a 48" level to ensure the case is level. Add additional shims as needed under specic bases.
This will reduce door sag/sawtooth (See "Door Leveling" on page 17).
C
a
s
e
F
ro
nt

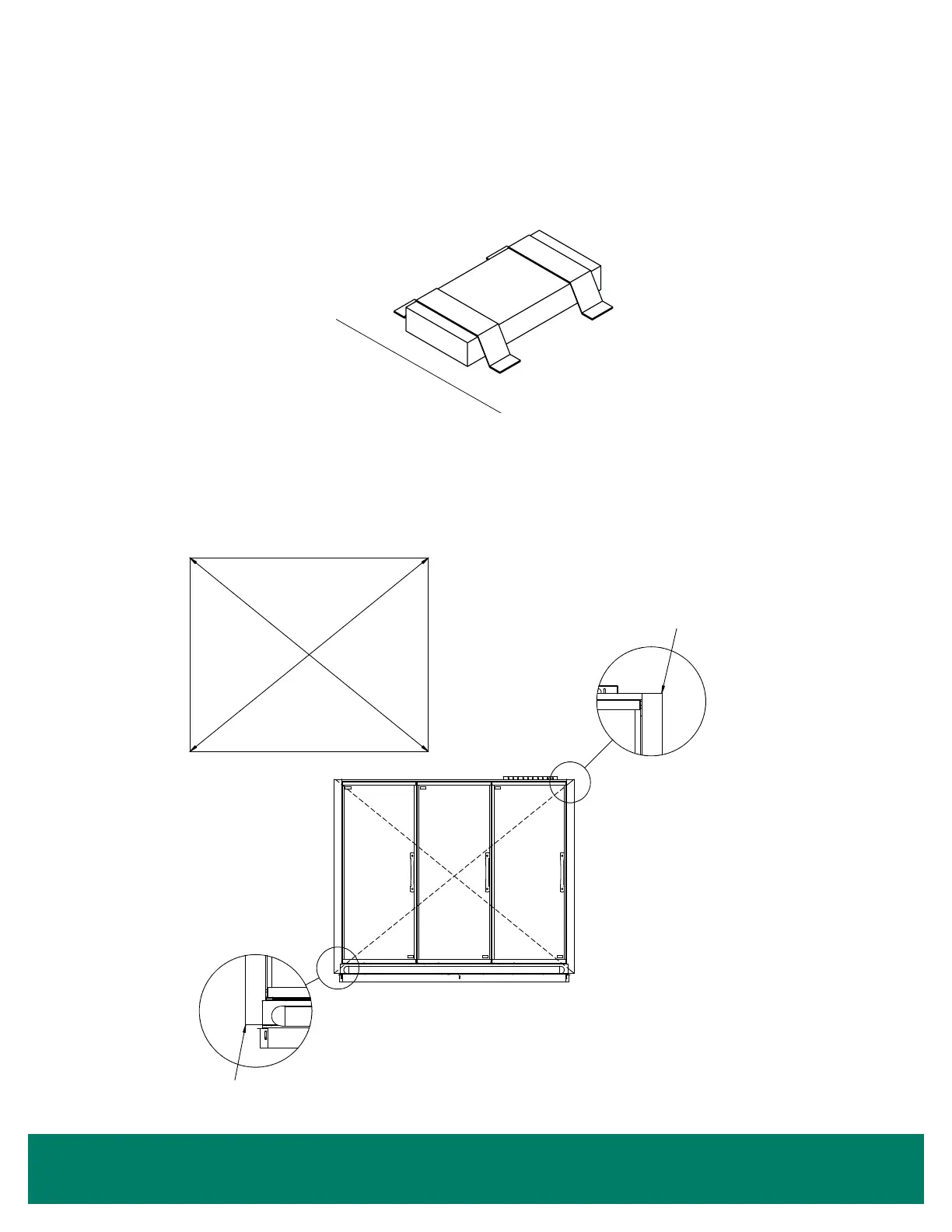

FIGURE 11: Tape Shims on the Floor Under Each Base or Hat Channel Rail
FIGURE 12: Case Squareness
1. Measure squareness from top right corner of the case to the bottom left
corner of the case at the points specied.
2. Measure again from the top left corner of the case to the bottom right
corner of the case.
3. Measurements should be equal. Deviation should be no more than 1/8".
Measure Here
Measure Here
