12 • Installation & Operation
INSTALLATION & OpERATION
8. Standard depth and Deep cases should be set with a slight backward tilt to offset the forward lean of a fully loaded case. We recommend
an additional 3/8" of shims be installed under the front bases after the case is leveled (See Figure 13). Note: Do not add extra shims
under Ultra Narrow cases.
9. When joining a freezer and cooler in a short lineup (2 cases: 1 freezer and 1 cooler), both cases should be tilted back with an additional
3/16" of shims under the front bases after the case is leveled (See Figure 14).

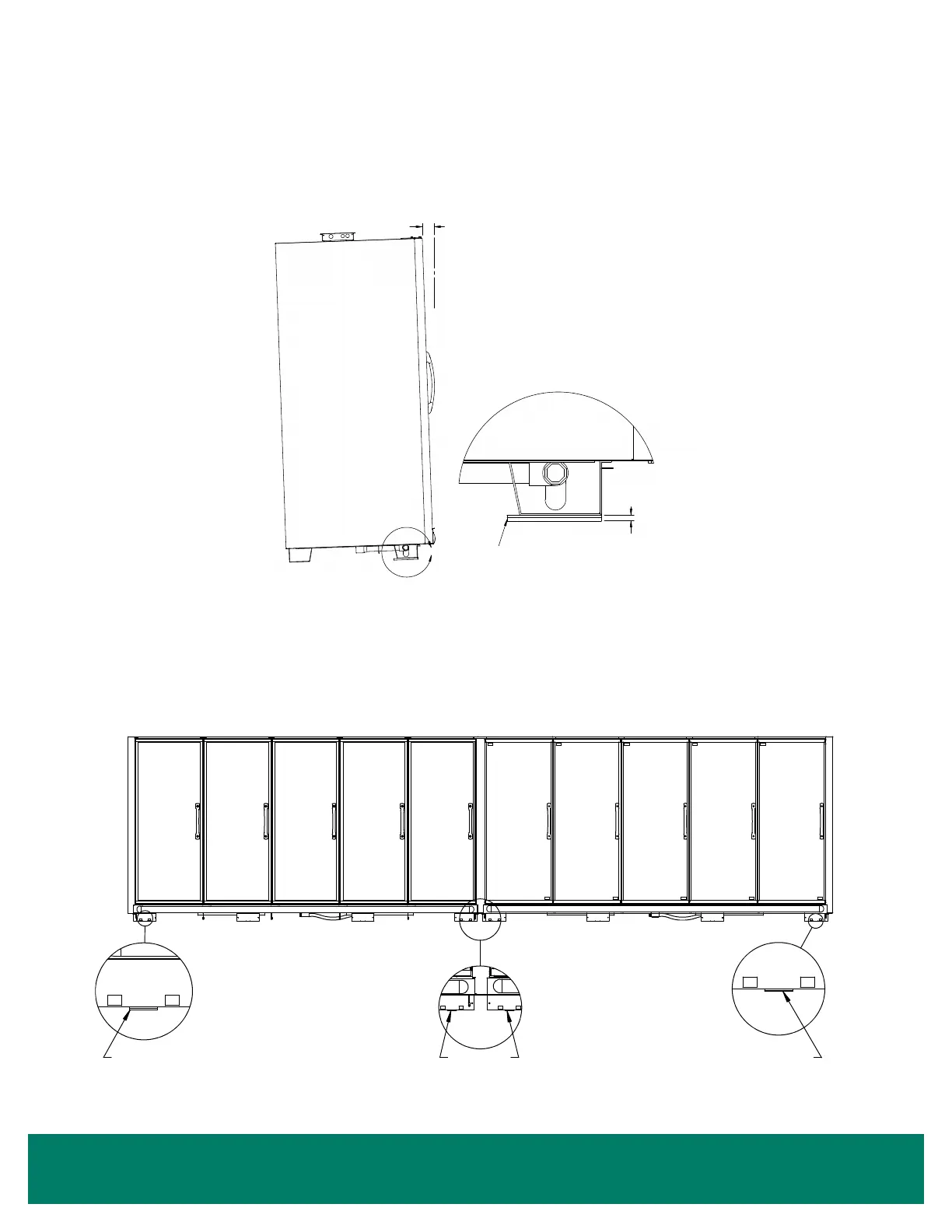

FIGURE 13: Tilt Back
Add 3/8" of shims under front bases
for proper tilt back.
Approximate tilt back of empty case:
1" on standard depth case
7/8" on Deep case
FIGURE 14: Cooler to Freezer Leveling for Short Lineup (2 cases)
Freezer Cooler
