General Maintenance
6.30
Fuses
Whenever there is an excessive amount of current flowing
through a circuit the fusible element will melt and create an
open or incomplete circuit. Fuses are a one-time protection
device and must be replaced each time the circuit is
overloaded. Replace the fuse with one of equal current
and voltage rating. If the fuse melts repeatedly, have the
electrical system inspected by your dealer.
To access the 12 volt fuse center and the ABS fuse, the
RH front body panel has to be removed.
Removing the RH front body panel
1. Remove seat.

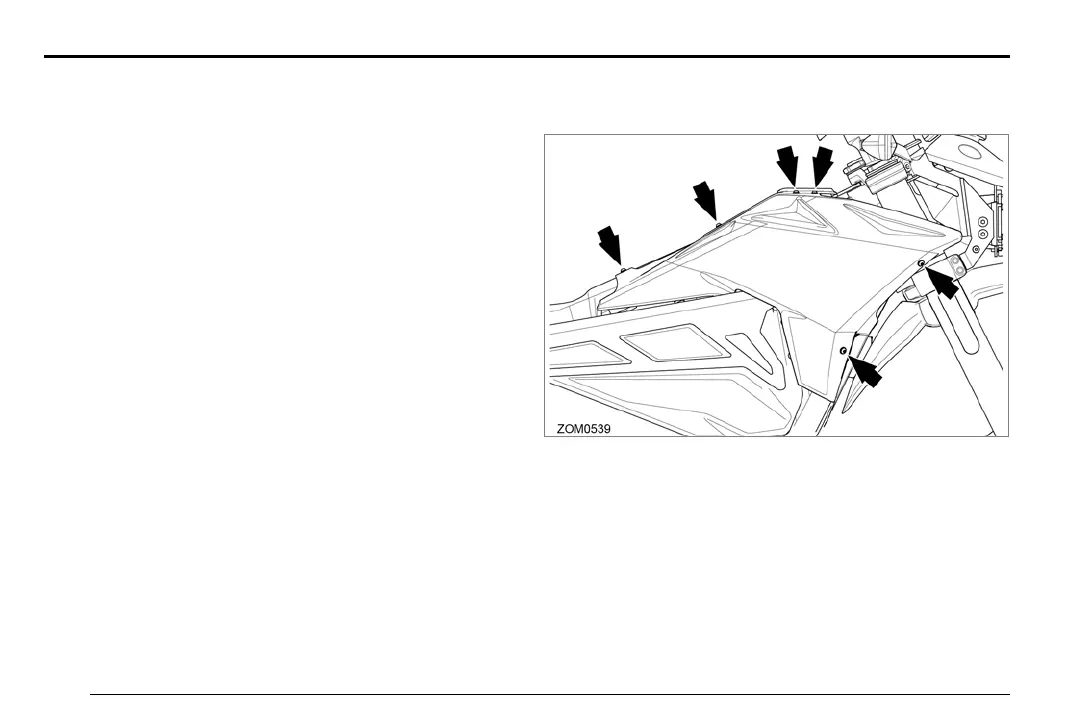

2. Remove 6 Torx fasteners securing the body panel to
the frame. Torque - 5 lb·ft (7 Nm).
3. Remove body panel.
Note: When installing the body panel, make sure that
no cables/wires are trapped between the frame and
panel before tightening the fasteners.
Zero Owner's Manual (FX and FXS).book Page 30 Monday, September 11, 2017 10:13 AM
