Maintenance and Installation Instructions Edition 11.07.2006 29 of 30
Fill in the transmission oil at GK 40 (Possibility 2)
• Clean magnet on the oil drain plug (Item
03) and always reattach it with a new
sealing ring (Item 04). (See Fig. 14)
Tightening torque: 22 Nm
• Fill in the transmission oil. For oil quantities
and viscosity classes see Chapter „Initial
Operation / Maintenance“ Paragraph „Oil
Grade“ & „Oil Capacity“
• For filling use a funnel with hose.
Maximum outer diameter of the hose is
13 mm.
• After filling in of the specified oil quantity
leave the transmission standing for 2
minutes.
• The correct oil level and the correct oil
quantity is achieved when the oil level is at
the lower edge of the oil filler plug, at least
when oil penetrates at the oil filler plug.
• Attach the oil filler plug (Item 01) with a
new sealing ring (Item 02).
• Tightening torque: 22 Nm

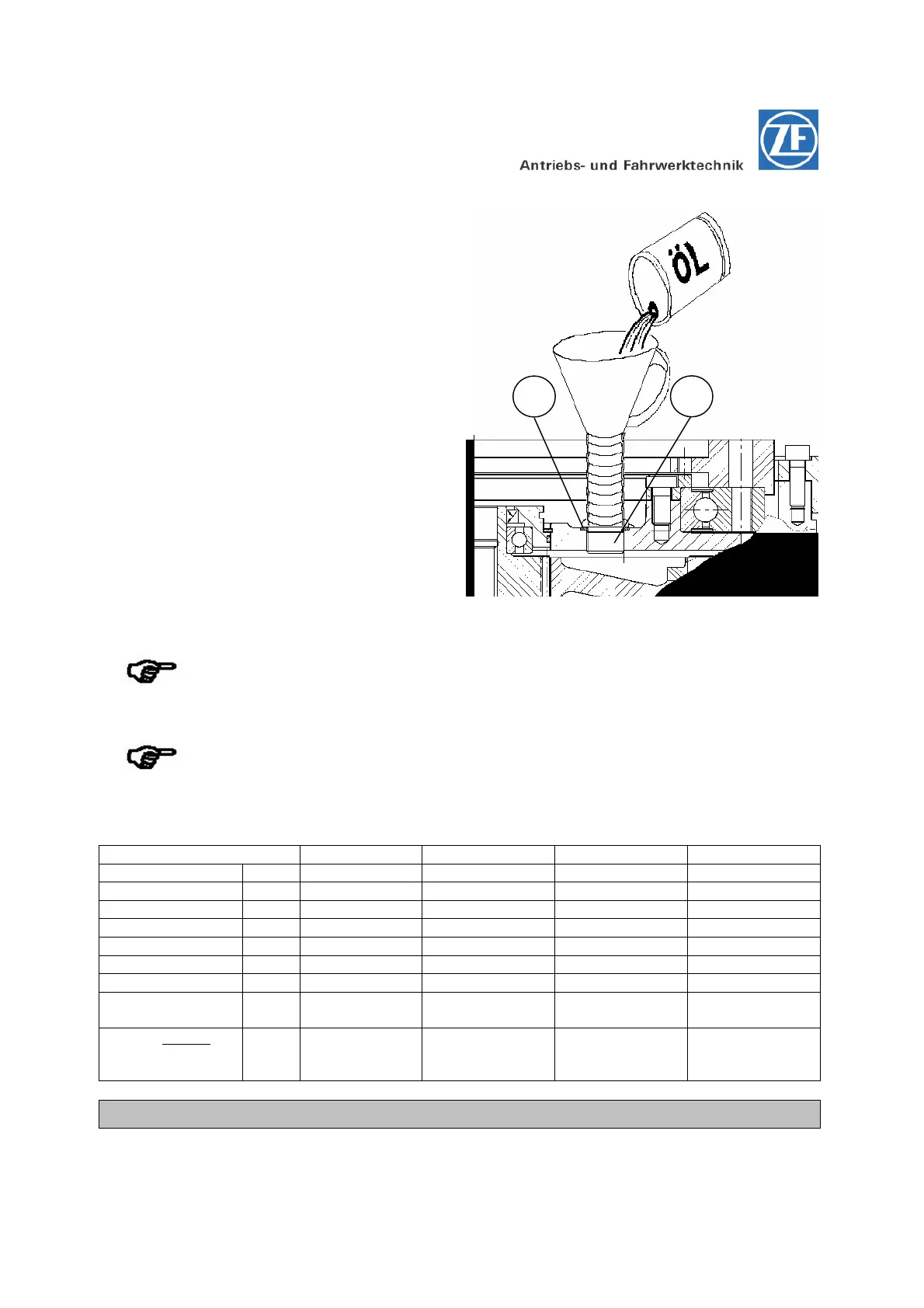

Figure 23
Remove spilled oil with a suitable oil binder.
After 25 operating hours check the oil level once again. Refill oil, if
necessary!
Technical Data of the GK – Product Range
GK – product range GK 20 GK 25 GK 30 GK 40
Max. wheel load kg 2000 2600 3400 4200
Max. wheel size Ø
mm 310 350 406 406
Max. wheel size mm 125 140 160 178
Max. wheel torque Nm 980 1400 1700 2600
Max. speed min
-1
4500 4500 4500 4500
Ratio 10,2 – 25,4 10,0 – 24,3 11,5 – 25,1 15,5 – 19,9
Envelope mm 168 182 208 230
Temperature
range
°C - 30 to + 40 - 30 to + 40 - 30 to + 40 - 30 to + 40
Weight, without oil,
E-motor, drive
wheel
kg 46 57 60 70
Subject to technical modifications.
