ZF GK20 User Manual

Maintenance and Installation Instructions Edition 11.07.2006 6 of 30

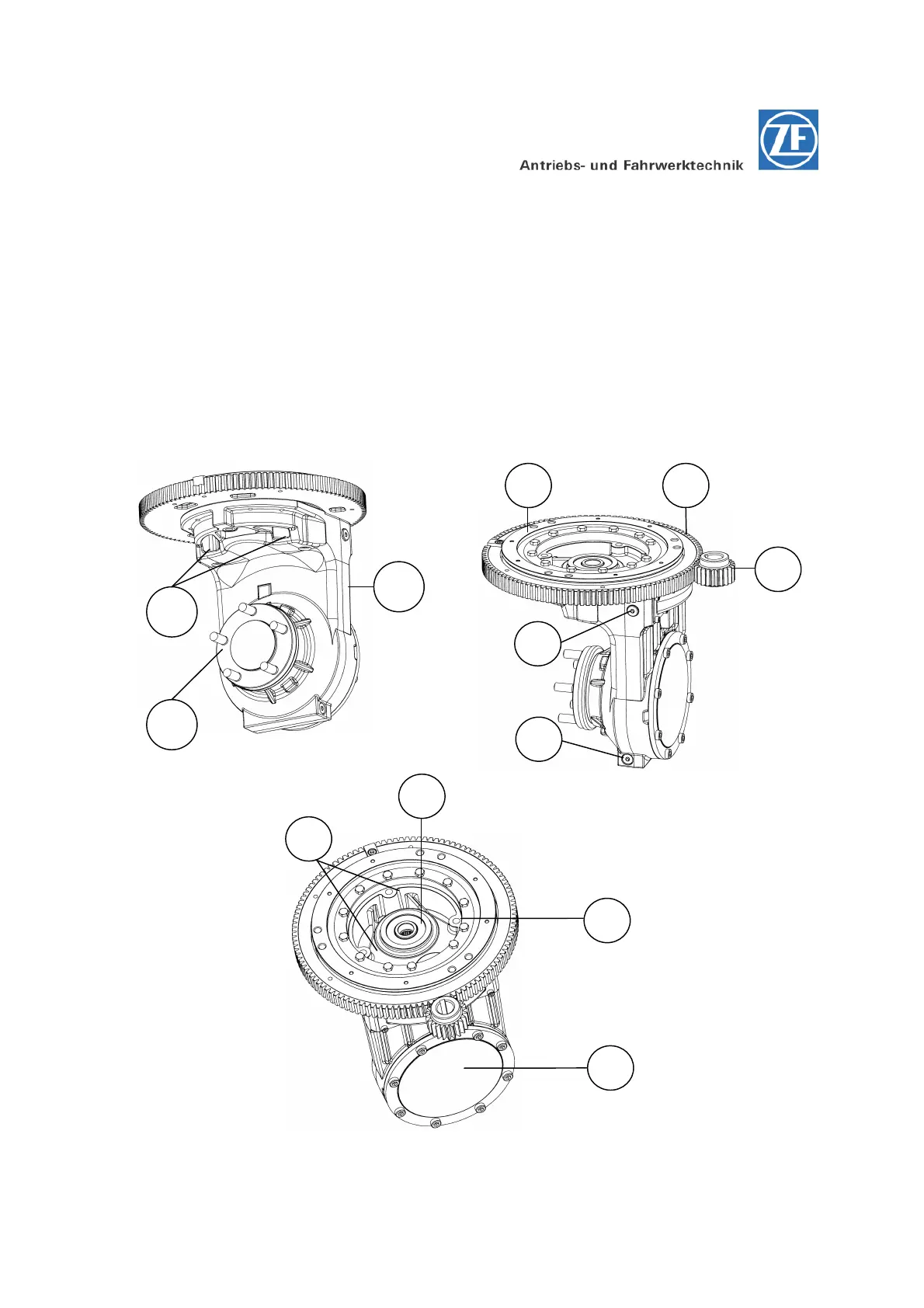

Components and Accessories of a GK Transmission
Item 01 one-piece transmission housing
Item 02 Venthole for electric motor ventilation
Item 03 optional steering: Gear ring with steering pinion (is shown) or
steering chain as alternative
Item 04 Mounting holes (optional)
Item 05 one-piece pivoted bogie bearing (optional)
Item 06 Wheel shaft with centering and locating face for drive wheel
Item 07 fully integrated drive pinion with motor connection profile
Item 08 Housing cover
Item 09 Oil filler plug and oil level check
Item 10 Oil drain plug
Other customer-specific accessories are possible!
Figure 01
03
03
05
09
10
07
04
04
08
01
02
06
