Install the MXK
46 MXK Hardware Installation Guide
Note: For the #8-32 ground stud and hex nuts the recommended
torque is 12 to 16 in/lbs.

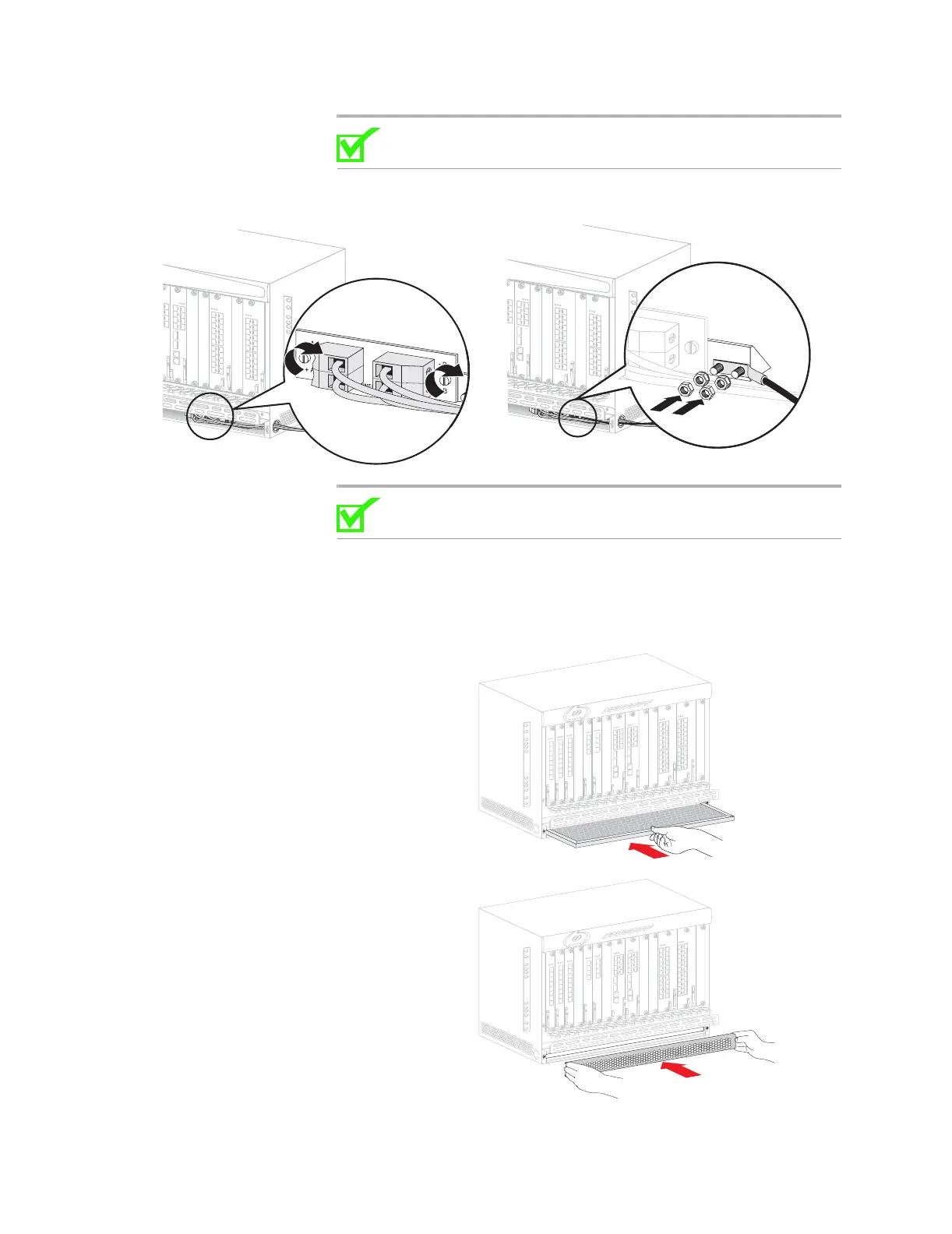

Figure 18: Securing the terminal block and grounding the chassis
Note: Some MXK terminal blocks have a quarter-turn screw. For
these units, turn the screw 1/4 turn clockwise to tighten.
18 Reinstall the air filter (Figure 19).
19 Replace the lower bezel (Figure 19).
Figure 19: Replacing the air filter and bezel
mx0712
