eZ80
®
CPU
User Manual
UM007714-0908
CPU Instruction Set
312

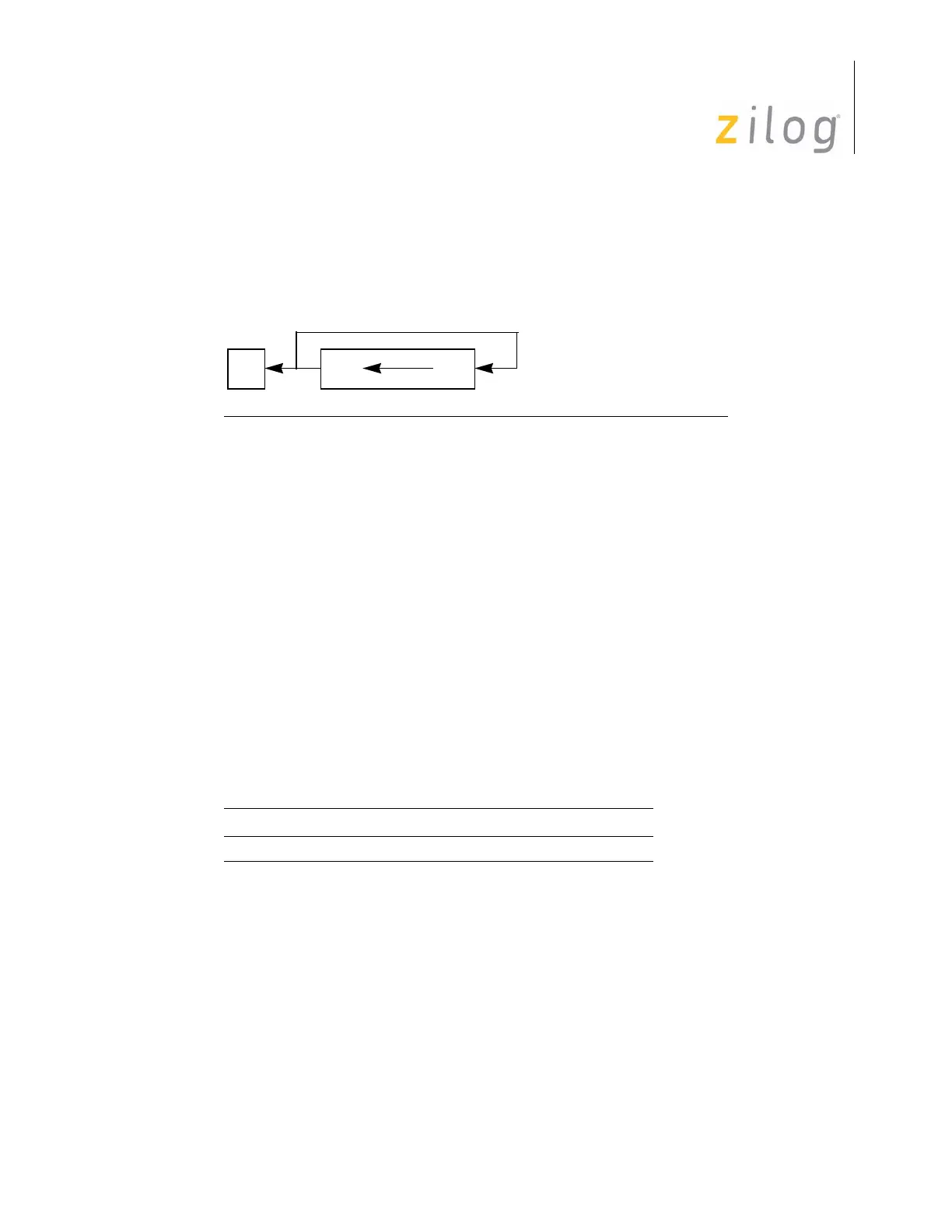

RLCA
Rotate Left with Carry–Accumulator
Operation
Description
The CPU manipulates the contents of the accumu
lator
, A, by rotating them left one bit
position. The CPU next copies bit 7
into the Carry Flag and into bit 0.
Condition Bits Affected
Attributes
S
Not affected.
Z
Not affected.
H
Reset.
P/V
Not affected.
N
Reset.
C
Data from bit 7 of
the accumulator
Mnemonic
Operand
ADL Mode
Cycle
Opcode (hex)
RLCA
—X
1
07
C
7
0
A
320
322
