ZiLOG eZ80 User Manual

eZ80
®
CPU
User Manual
UM007714-0908 CPU Instruction Set
320

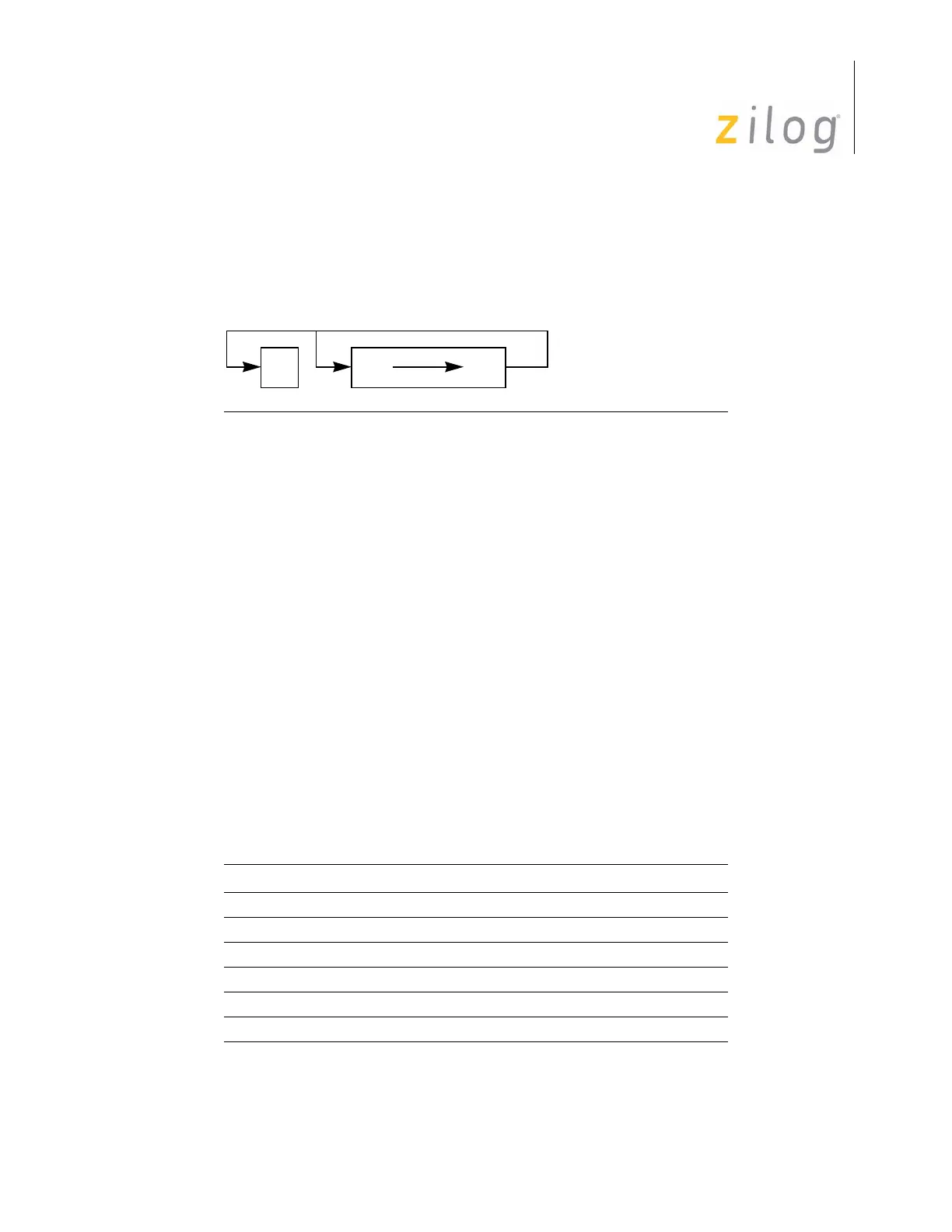

RRC (IX/Y+d)
Rotate Right with Carry
Operation
Description
The ( IX/Y + d ) operand is an 8-bit value at the memory location specified by the contents
of the Index Register, IX or IY, added to the two’s-complement displacement
d . The CPU
manipulates the contents of this memory location, (
IX/Y + d ), by rotating them right one
bit position. The CPU next copies bit 0 into the Carry Flag and into bit 7 of the memory
location (
IX/Y + d ).
Condition Bits Affected
Attributes
S Set if result is negative; reset otherwise.
Z Set if result is 0; reset otherwise.
H Reset.
P/V Set if parity is even; reset otherwise.
N Reset.
C Data from bit 0 of the source.
Mnemonic Operand ADL Mode Cycle Opcode (hex)
RRC (IX+d)X 7 DD, CB, dd, 0E
RRC.S (IX+d)1 8 52, DD, CB, dd, 0E
RRC.L (IX+d)0 8 49, DD, CB, dd, 0E
RRC (IY+d)X 7 FD, CB, dd, 0E
RRC.S (IY+d)1 8 52, FD, CB, dd, 0E
RRC.L (IY+d)0 8 49, FD, CB, dd, 0E
C
7
0
(IX/Y+d)
