Zip InLine ES3 Installation, Maintenance And User Instructions

ES3, ES4 & ES6 Instructions. V1.06 Page 10 August / 2014
186mm
135mm

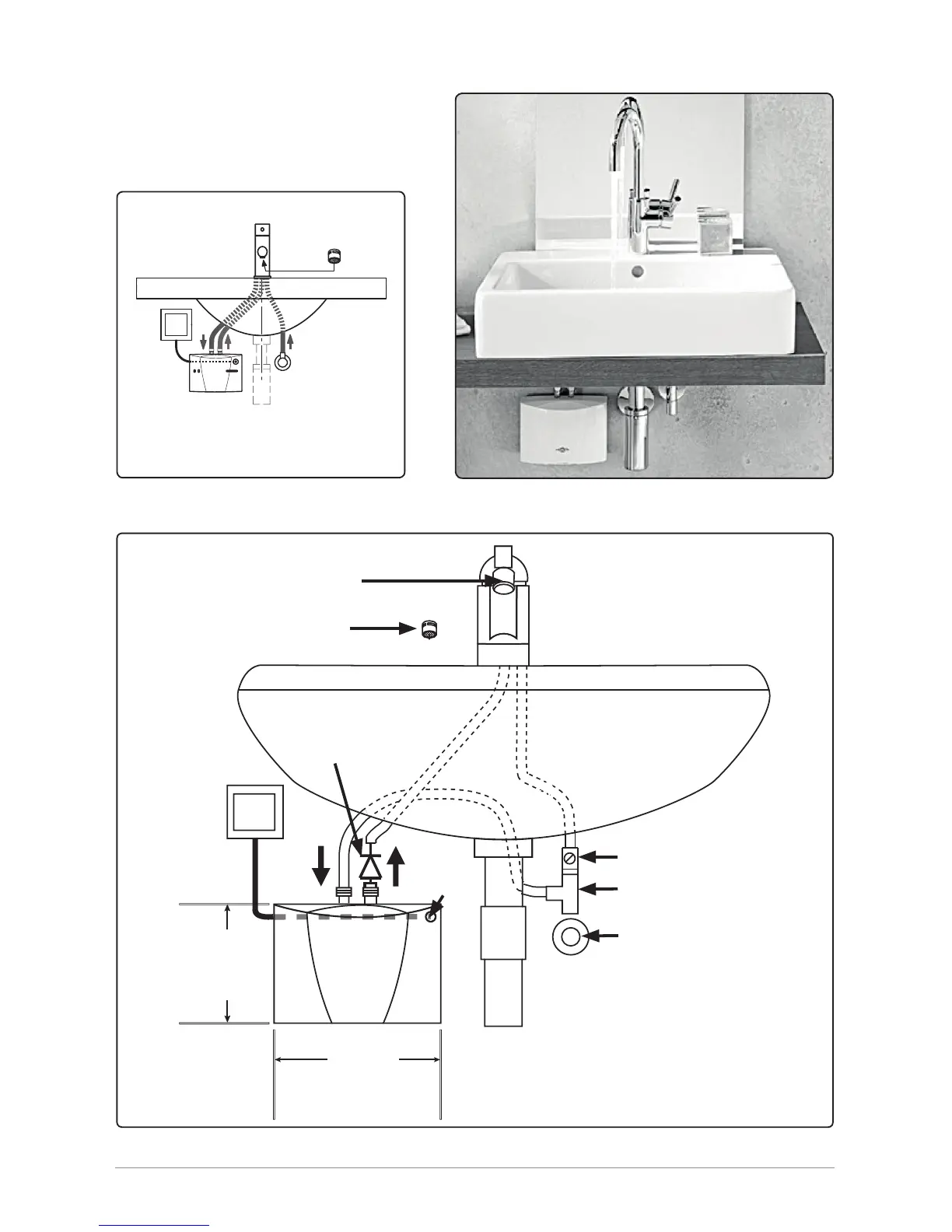

Typical installation
Fig. 4/5 show unvented installation
with closed outlet tap.
Fig. 4a shows open vented installation
Fig. 4
You may also use an open
vented installation.
Fig. 4a
Fig. 5
Service Valve
Flow Control Valve
Mains Supply
Fit Jet Regulator
Jet Regulator
Rear
Cable
Entry
Non-return
valve
