ES3, ES4 & ES6 Instructions. V1.06 Page 9 August / 2014
Seal
Seal
Hot Water
Connection
(outlet)
Filter
Cold Water
Connection
(inlet)

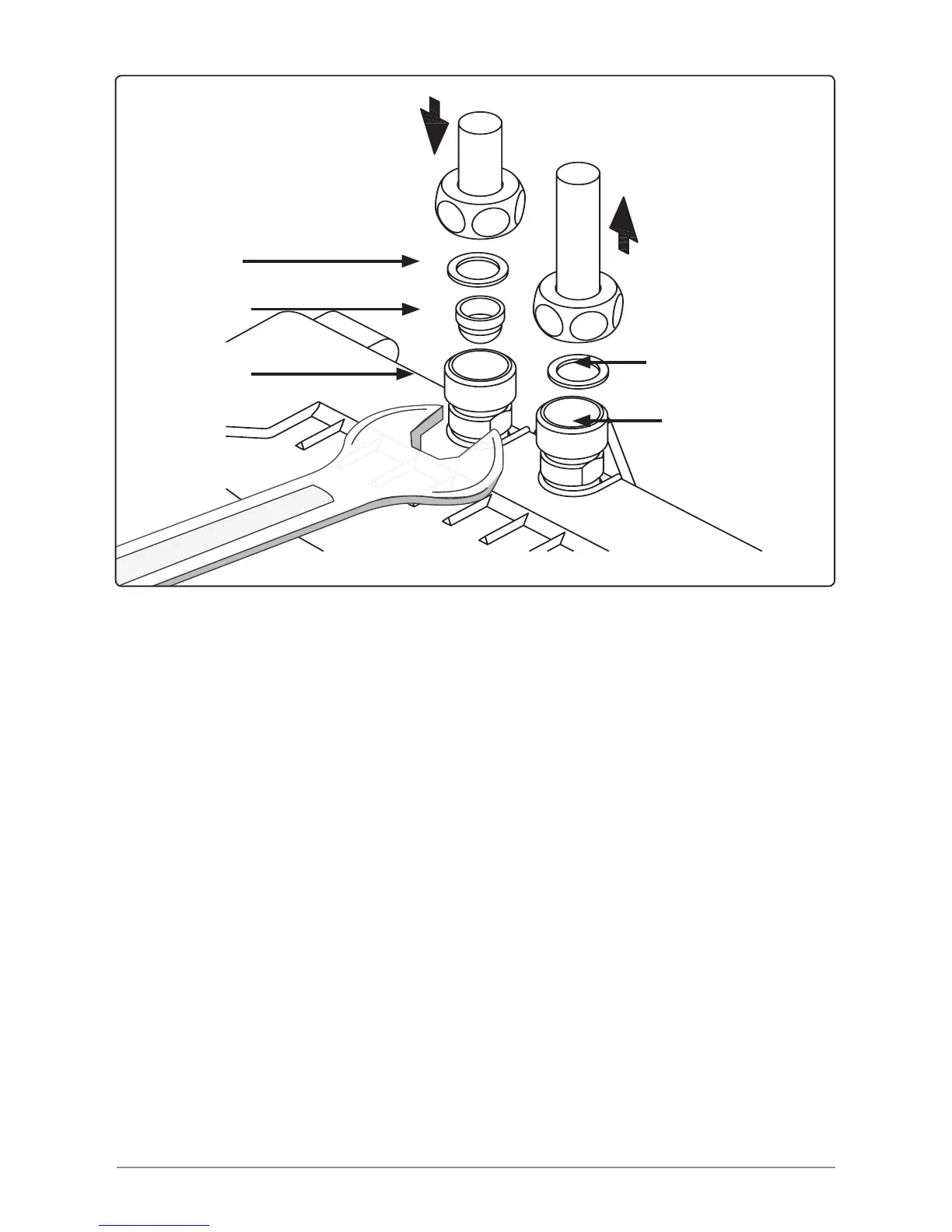

Fig. 3
Plumbing connection (Fig. 3)
1. The cold water inlet (blue) and hot water outlet (red) are marked on the rating plate. Connect
the appropriate pipes from the tap to the water inlet and outlet accordingly. Avoid exerting
any mechanical pressure on the appliance by applying a 13mm spanner on the ats of the
inlet and outlet connections when tightening the pipe connectors (Fig.3).
2. When supplying mixer taps a non-return valve must be tted to the hot water outlet and not
to the cold water inlet (g. 5).
3. A ow control valve may be required on the cold supply to the mixer taps to balance the
ow (g. 5).
4. Thoroughly ush the water supply pipes brfore connection to remove any water borne
debris.
5. Once the water connections have been made, check for any leaks and rectify as necessary.
6. In order to obtain an optimum water jet at low ow rates, always screw the jet regulator
supplied with the unit onto the tap outlet. This insert ts commercially available sleeves
with an M22 or M24 thread.
