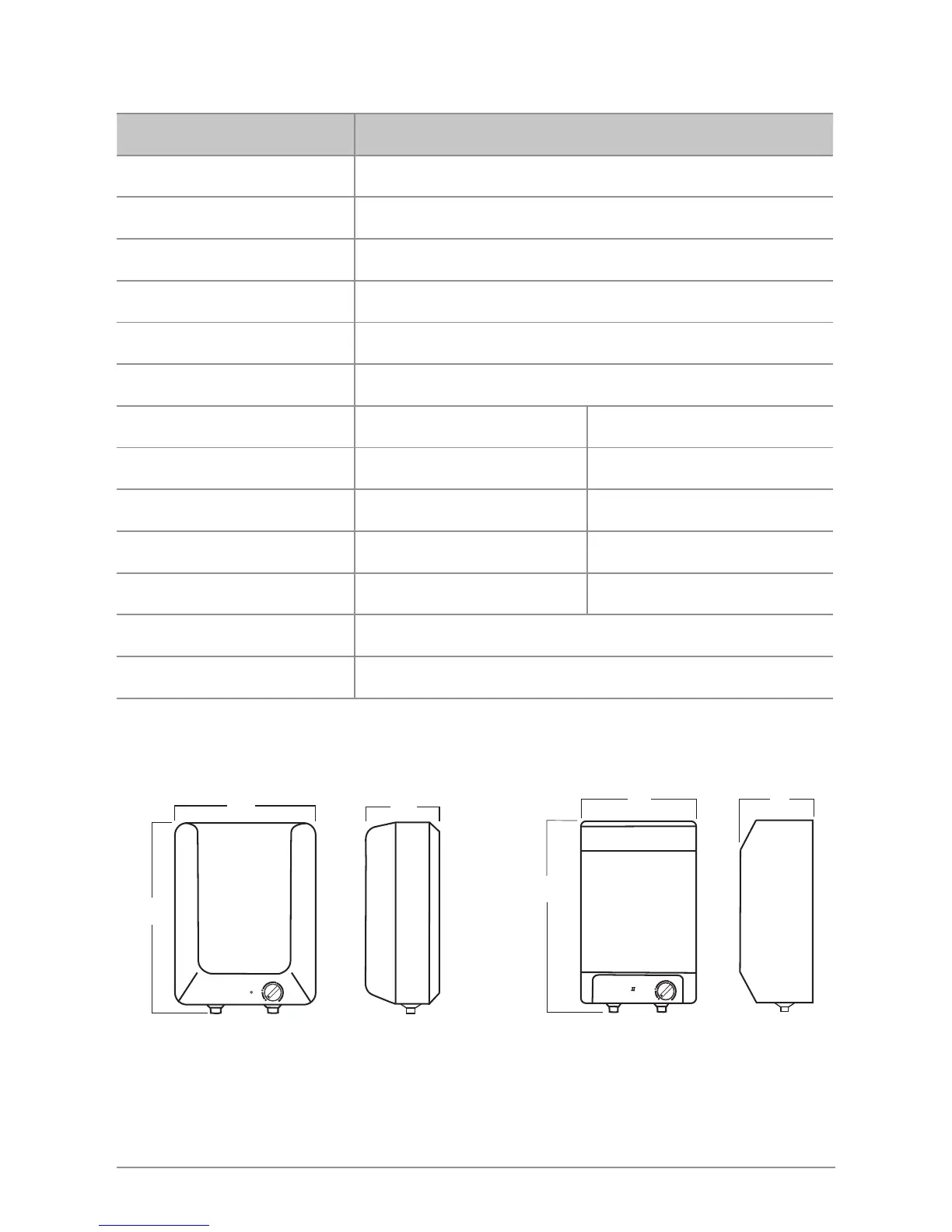

Technical data
Model Tudor II and Contract II models
Nominal supply voltage 1/N/PE 230V~
Power rating (kW) 1.8
Rated Current (A) 7.8
Element type Embedded Rod
Maximum supply pressure 0.35MPa (3.5 bar)*
Temp. Adjustment range 35°C~80°C
Capacity 5 Litre 10 Litre
Dimensions H x W x D (mm) 390x255x215 440x310x265
Minimum weight (kg) (Empty) 3.5 4.0
Maximum weight (kg) (Full)) 8.5 14.0
Rated volume (litres) 5 10
Water connections (BSP) 1/2”
Protection class IP24
All data quoted at nominal supply voltage.
For higher supply pressures it is recommended that a Zip AQ3 (set at 3.5 bar) pressure reducing
valve is used.
ZIP Tudor II
ZIP
CONTRACT
W
D
H
D
W
H
C3/50Tudor II, C2/50 and C2/100
NOTE:
Overbasin and underbasin models are NOT interchangeable. For underbasin applications use
models designated ‘UB’ and use only Zip approved vented tap accessories.
