Zip Tudor II P4/52 User Manual

Instructions. V1.01 Page 6 JUNE / 2013
ITEM Description PART No. P4 MODELS C2 MODELS C3 MODEL
1 Heating element CTO111/4 X X X
2 Element gasket CTO116/4 X X X
3 Fascia CT0130 X
3 Fascia (OB) CT0107/3 X
3 Fascia (UB) CT0108/3 X
4 Thermostat CT0119/4 X X X
5 Re-settable cut-out CT0121/4 X
5 Re-settable cut-out CT0122 X
5a Thermal fuse CT0120 X
6 Neon light indicator CT0129/4 X X
7 Retaining nut CT0115/4 X X X
8 Front cover (5L) CT0103/3 X
8 Front cover. OB (5L) CT0123 X
8 Front cover. UB (5L) CT0124 X
8 Front cover (5L) CT0125 X
9 Back cover (5L) CT0101/3 X X X
8 Front cover (10L) CT0105/4 X X
9 Back cover (10L) CT0102/3 X X
10 Outlet Spout CT0137 X(OB) X X
11 Control valve CT0138 X(OB) X X
12 Control knob with spring CT0106/3 X X X

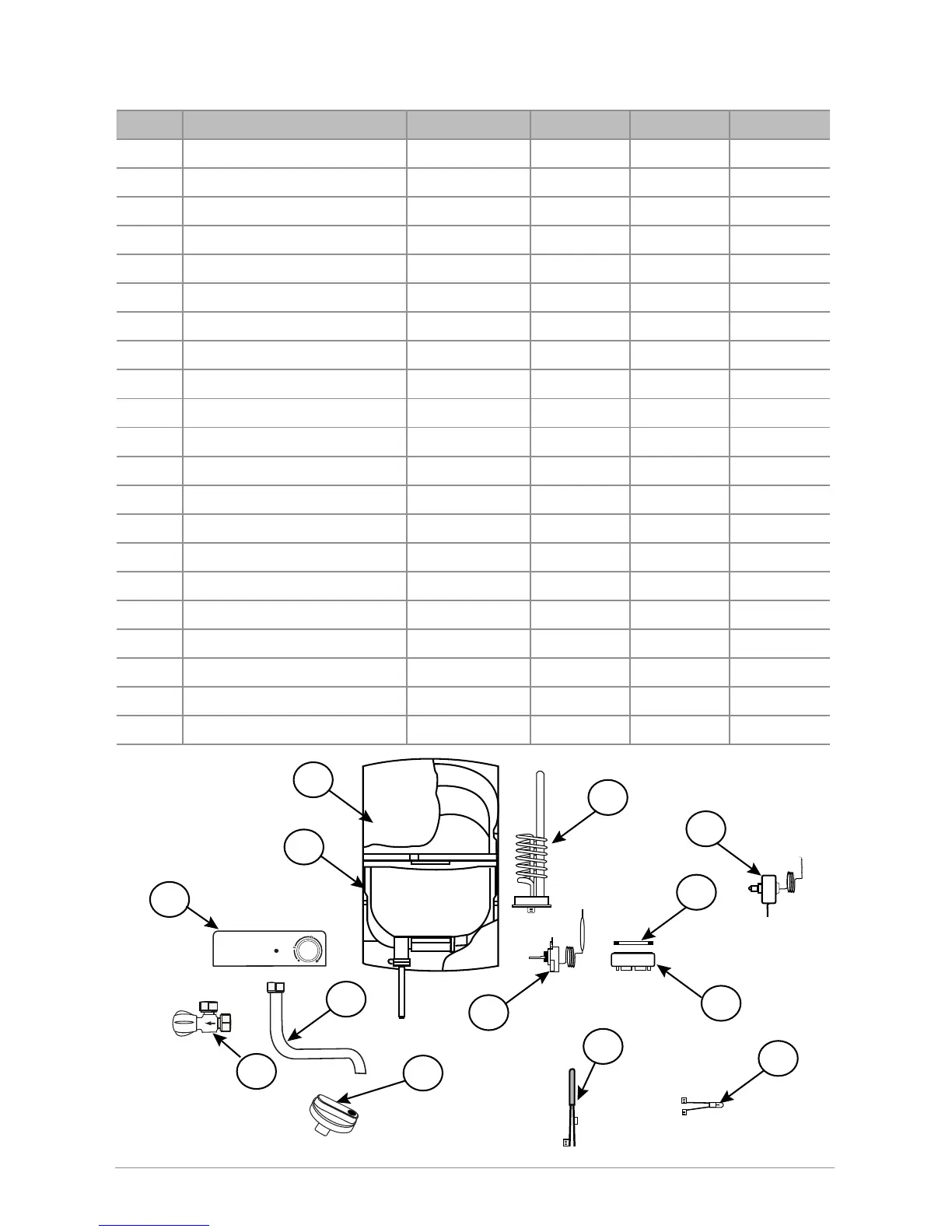

Spare Parts
9
8
1
5
4
2
7
6
5a
11
10
3
ZIP TUDOR II
12

Zip Tudor II P4/52 Specifications

General

Brand	Zip
Model	Tudor II P4/52
Category	Water Heater
Language	English
