ASSEMBLY MANUAL
CAUTION! Follow the steps below during the assembly and use tools supplied with the product.
Prepare sufficient space for the assembly operation.
It is advisable to assemble the product with another person because of the weight of some elements.

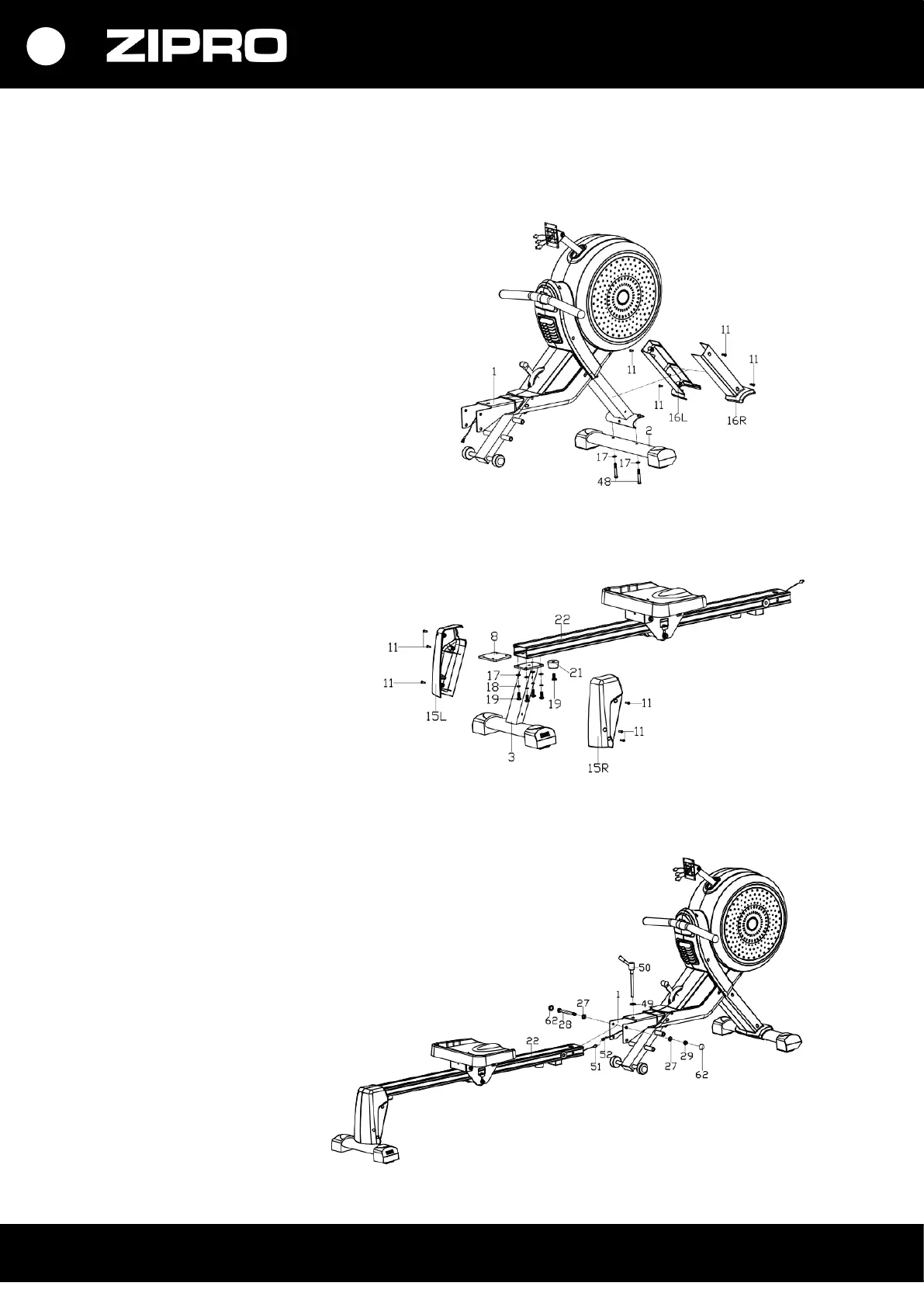

STEP 1.
Install the cover (16 L/R) on the main
frame (1) with screws (11).
Next, attach the lower base (2)
to the main frame (1) using screws (48)
and flat washers (17).
STEP 2.
Slide the mounting plate (8) inside
the slider track (22) so that bolt holes
are aligned. Attach the rear support (3)
to fix all parts with hexagonal screws
(19) with spring washers (18) and flat
washers (17).
NOTE! Make sure screw (19) is screwed
into the mounting plate (8).
Next, put the cover (15 L/R) on the rear
support (3) and fix it with screws (11).
Attach the rubber stopper (21)
to the slider track (22) with screws (19).
STEP 3.
Connect the heart rate cable (51)
with the connecting cable (52).
Then, connect the rail (22) with
the main frame (1) and fix them
with hexagonal screws (28), flat
washers (27), and nuts (29).
Install hole plugs (62).
Lock the slider track (22)
and main frame (1) with the
locking pin (50) and a flat washer
(49).
