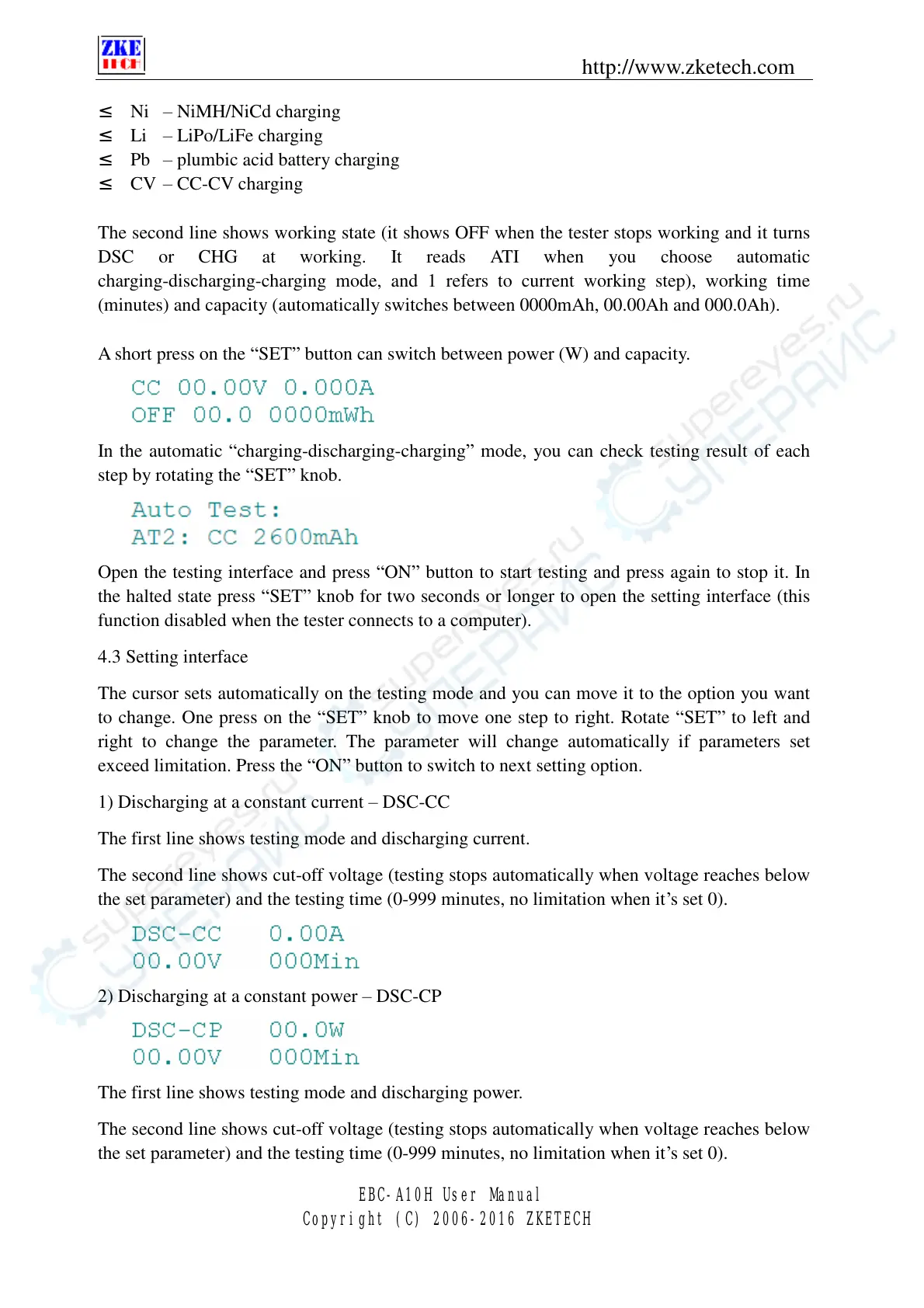

² Ni – NiMH/NiCd charging
² L i – LiPo/LiFe charging
² Pb – plumbic acid battery charging
² CV – CC-CV charging
The second line shows working state (it shows OFF when the tester stops working and it turns
DSC or CHG at working. It reads ATI when you choose automatic
charging-discharging-charging mode, and 1 refers to current working step), working time
(minutes) and capacity (automatically switches between 0000mAh, 00.00Ah and 000.0Ah).
A short press on the “SET” button can switch between power (W) and capacity.
In the automatic “charging-discharging-charging” mode, you can check testing result of each
step by rotating the “SET” knob.
Open the testing interface and press “ON” button to start testing and press again to stop it. In
the halted state press “SET” knob for two seconds or longer to open the setting interface (this
function disabled when the tester connects to a computer).
4.3 Setting interface
The cursor sets automatically on the testing mode and you can move it to the option you want
to change. One press on the “SET” knob to move one step to right. Rotate “SET” to left and
right to change the parameter. The parameter will change automatically if parameters set
exceed limitation. Press the “ON” button to switch to next setting option.
1) Discharging at a constant current – DSC-CC
The first line shows testing mode and discharging current.
The second line shows cut-off voltage (testing stops automatically when voltage reaches below
the set parameter) and the testing time (0-999 minutes, no limitation when it’s set 0).
2) Discharging at a constant power – DSC-CP
The first line shows testing mode and discharging power.
The second line shows cut-off voltage (testing stops automatically when voltage reaches below
the set parameter) and the testing time (0-999 minutes, no limitation when it’s set 0).
