EBC-A10H User Manual
Copyright (C) 2006-2016 ZKETECH

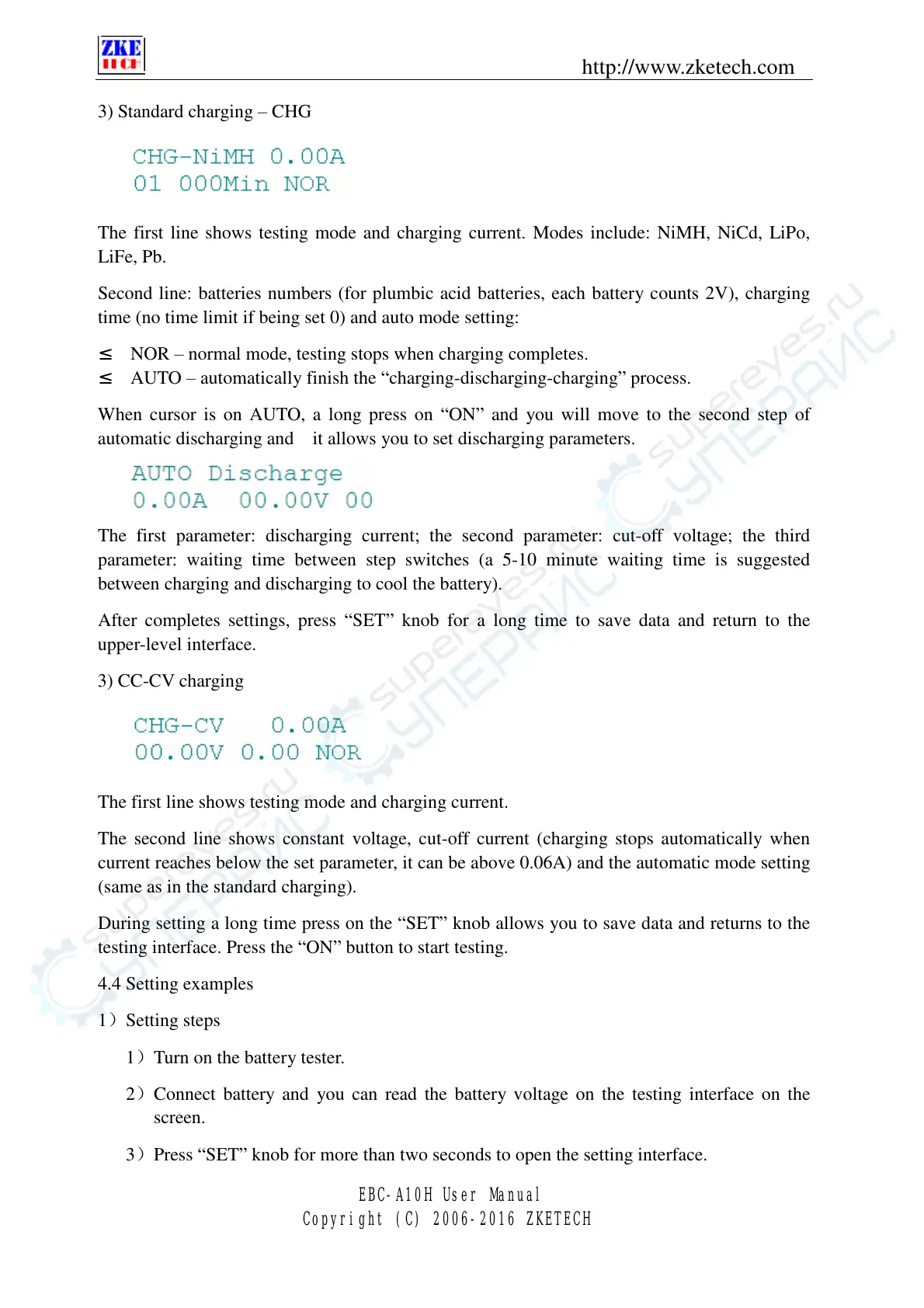

3) Standard charging – CHG
The first line shows testing mode and charging current. Modes include: NiMH, NiCd, LiPo,
LiFe, Pb.
Second line: batteries numbers (for plumbic acid batteries, each battery counts 2V), charging
time (no time limit if being set 0) and auto mode setting:
² NOR – normal mode, testing stops when charging completes.
² AUTO – automatically finish the “charging-discharging-charging” process.
When cursor is on AUTO, a long press on “ON” and you will move to the second step of
automatic discharging and it allows you to set discharging parameters.
The first parameter: discharging current; the second parameter: cut-off voltage; the third
parameter: waiting time between step switches (a 5-10 minute waiting time is suggested
between charging and discharging to cool the battery).
After completes settings, press “SET” knob for a long time to save data and return to the
upper-level interface.
3) CC-CV charging
The first line shows testing mode and charging current.
The second line shows constant voltage, cut-off current (charging stops automatically when
current reaches below the set parameter, it can be above 0.06A) and the automatic mode setting
(same as in the standard charging).
During setting a long time press on the “SET” knob allows you to save data and returns to the
testing interface. Press the “ON” button to start testing.
4.4 Setting examples
1）Setting steps
1）Turn on the battery tester.
2）Connect battery and you can read the battery voltage on the testing interface on the
screen.
3）Press “SET” knob for more than two seconds to open the setting interface.
