EBC-A10H User Manual
Copyright (C) 2006-2016 ZKETECH

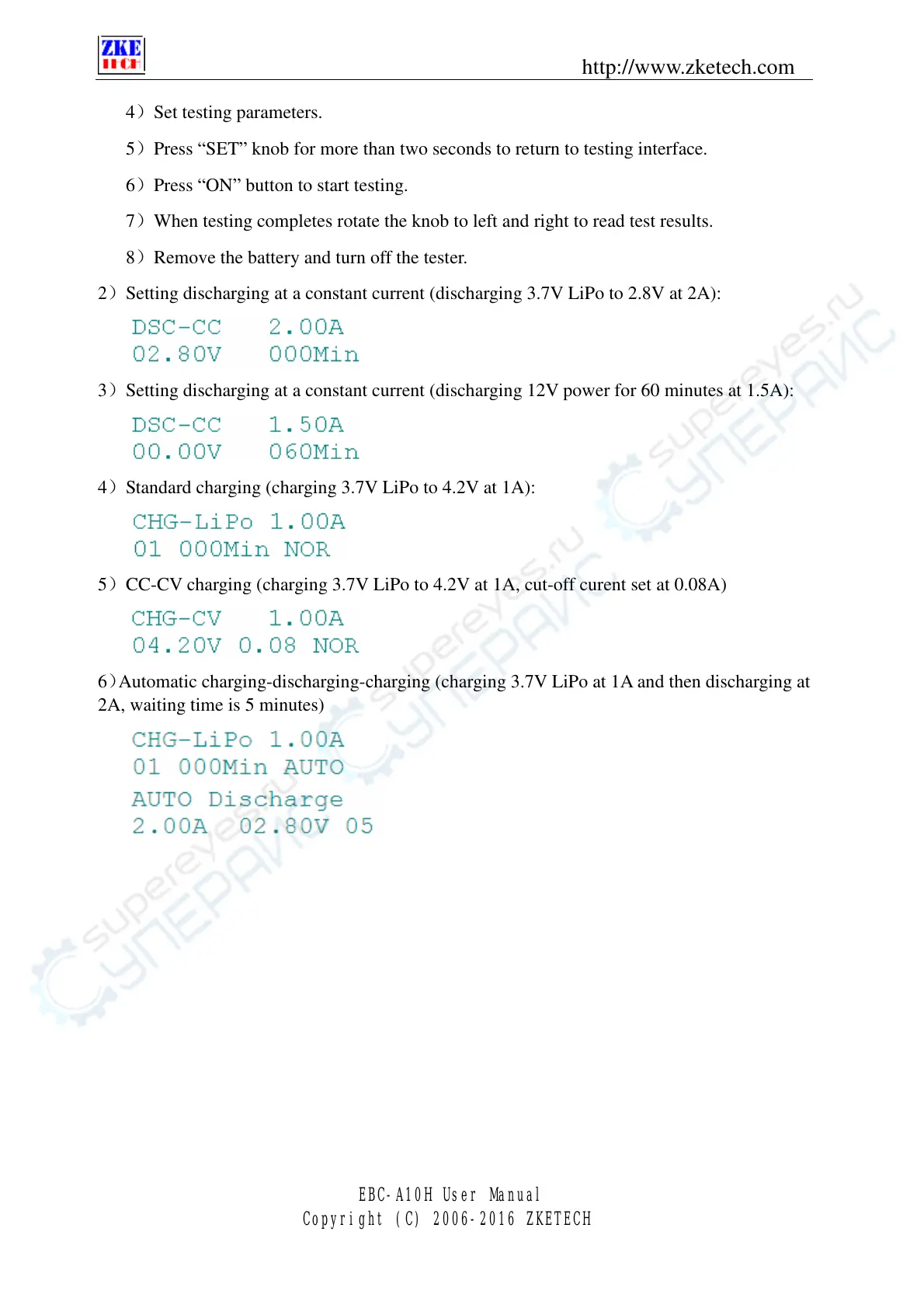

4）Set testing parameters.
5）Press “SET” knob for more than two seconds to return to testing interface.
6）Press “ON” button to start testing.
7）When testing completes rotate the knob to left and right to read test results.
8）Remove the battery and turn off the tester.
2）Setting discharging at a constant current (discharging 3.7V LiPo to 2.8V at 2A):
3）Setting discharging at a constant current (discharging 12V power for 60 minutes at 1.5A):
4）Standard charging (charging 3.7V LiPo to 4.2V at 1A):
5）CC-CV charging (charging 3.7V LiPo to 4.2V at 1A, cut-off curent set at 0.08A)
6）Automatic charging-discharging-charging (charging 3.7V LiPo at 1A and then discharging at
2A, waiting time is 5 minutes)
