LB330 Parking Barrier User Manual
P a g e | 13 Copyright©2022 ZKTECO CO., LTD. All rights reserved.
Boom Arm Installation
5.4.1 Boom Arm Installation Procedure

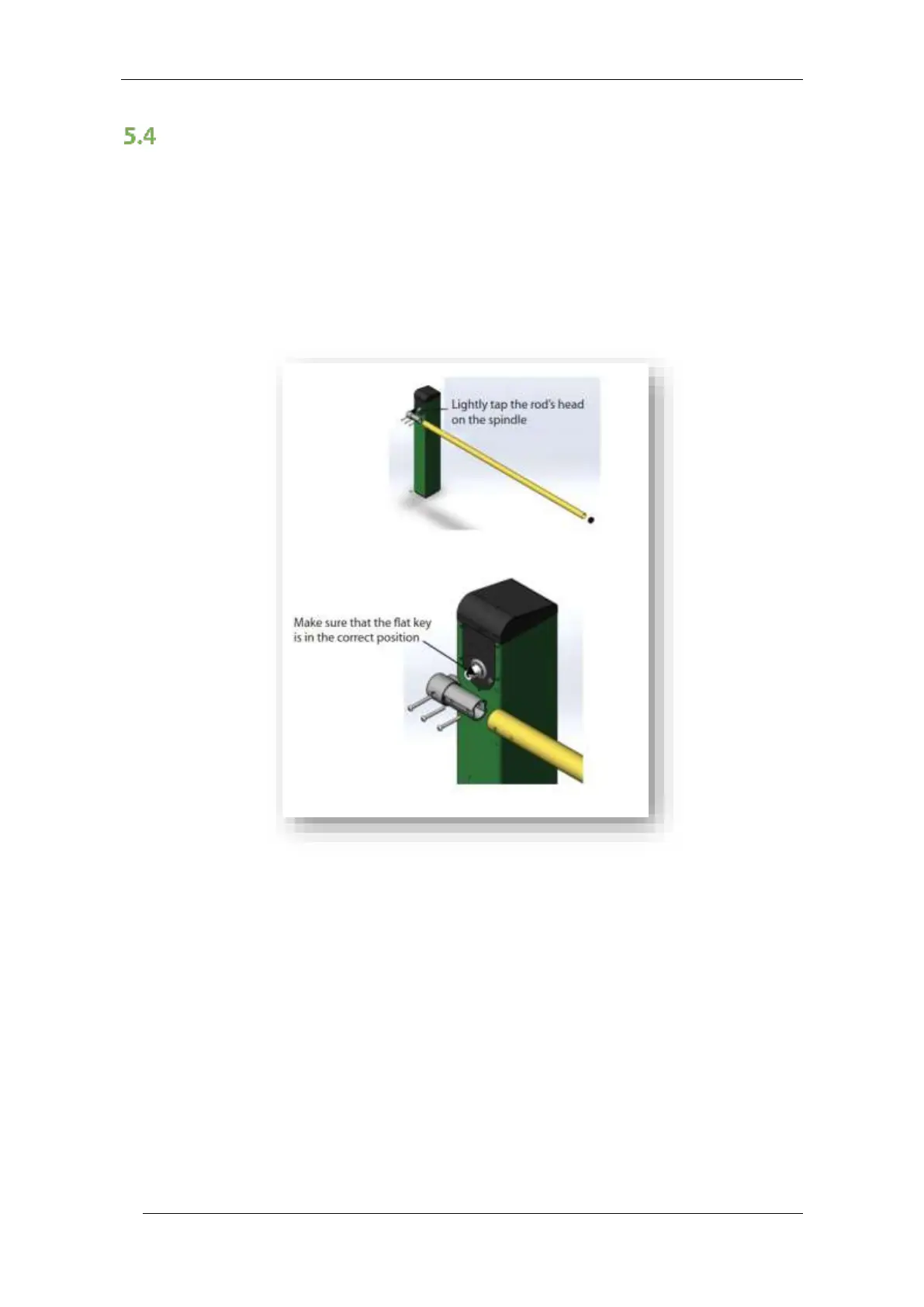

1. Install the handlebar head: Make sure the flat key on the main shaft is aligned with the key
notch on the handlebar head, then gently tap the handlebar head in place. Please see the
figure below.
2. Install the centre screw and tighten it.
3. Attach the boom arm to the boom holder's head.
4. Install the remaining two screws and tighten them.
5. Connect the LED light's power cord.
