LB330 Parking Barrier User Manual
P a g e | 14 Copyright©2022 ZKTECO CO., LTD. All rights reserved.
6 Main Control Board Instructions
1. Before you begin wiring, make sure the power supply is turned off.
2. Make sure that the terminals are securely fastened and that the wiring is secure.
Control Board External Product Requirement
External product requirements for the control board are:
Power supply -24V/4 to 10 A;
Motor type: 24DC Brushless motor.
Vehicle detector or 12V radar ground sensor.

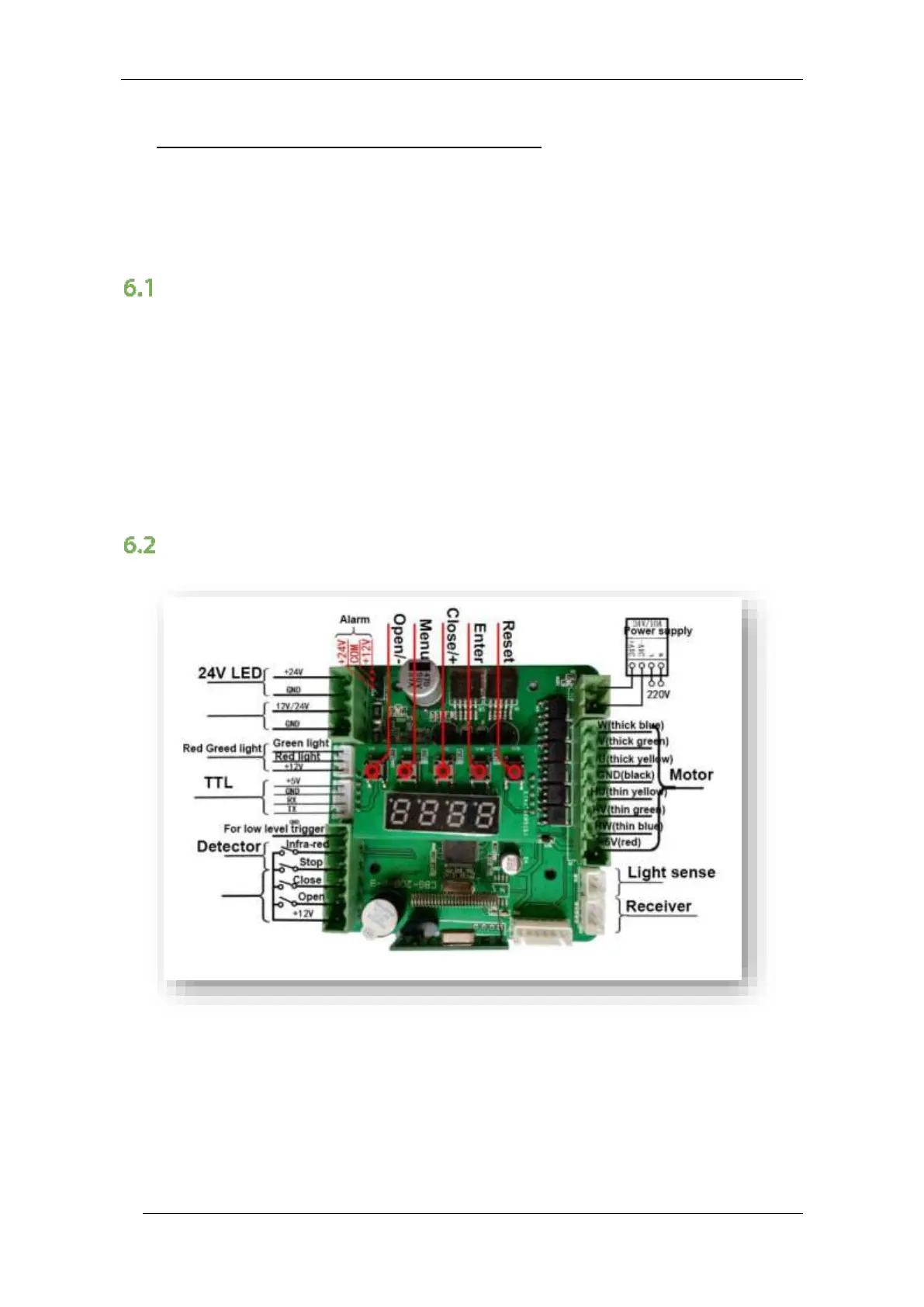

Main Board Wiring Diagram
Note: Network cables must not be connected to any of the control board's external signal
lines. Although the network wires have no connectivity issues, they are easily broken after
numerous tosses. To reduce the issues caused by line faults, it is advisable to use BVR lines.
