2. Installations Guide
JP1 terminal:
JP2 terminal:
NO
Mark
Color
Function
Remark
1
+12V
Red
Power+
For options
2
GND
Black
Power-
3
DATA0
Green
WG DATA0
4
DATA1
White
WG DATA1
5
NC
Brown
Relay NC output
6
COM
Blue
Relay Com output
7
NO
Purple
Relay NO output
NO
Mark
Color
Function
1
+12V
Red
Power+
2
GND
Black
Power-
3
PUSH
BLUE
Low level output
4
OPEN
Yellow
Door Release
5
BELL
Grey
BELL
6
BELL
White
BELL
R
emark:
If
let relay drive electric -
“-” poles.
lock, please connect a reverse diode with the lock’s “+” and

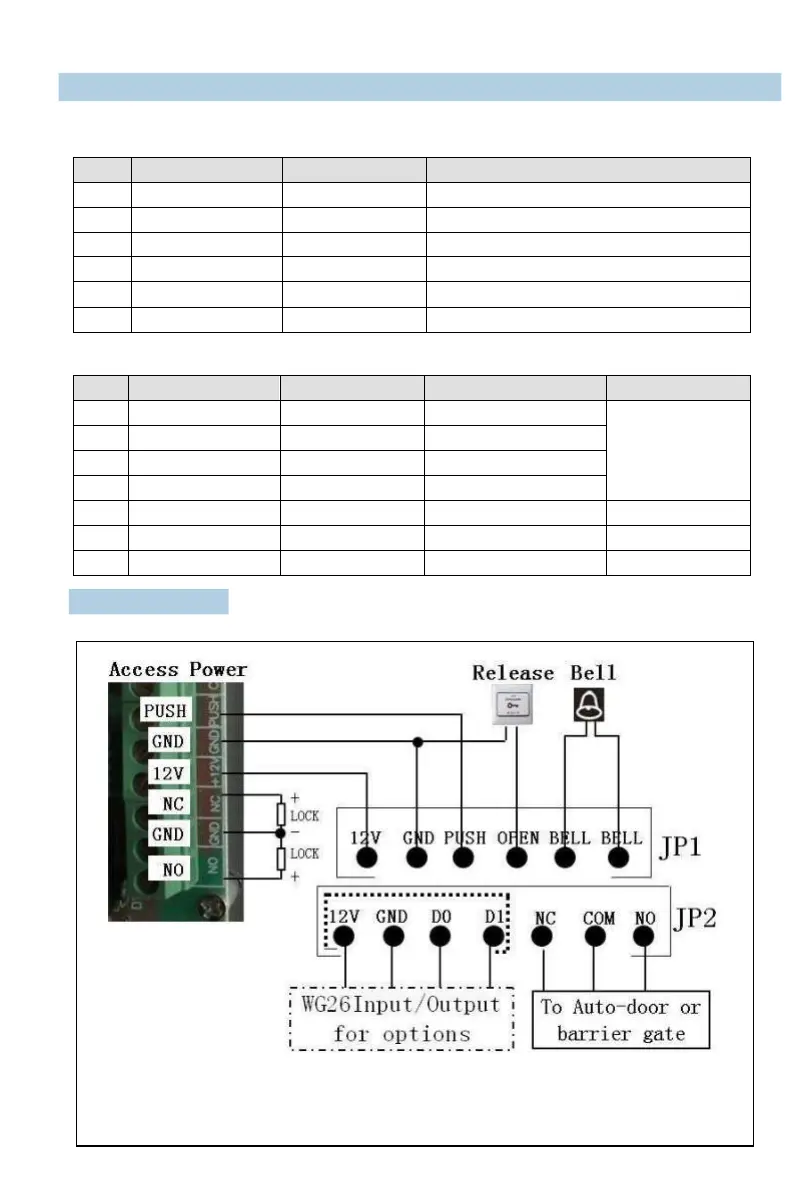

Wiring diagram:
