Reader: The reader reads the data in the card and sends it to the controller.
Control panel: The control panel is the system’s control center that receives signals from the access
controller, performs logical judgment and processing of these signals, and sends executive
commands to the electric motor.
IR sensor: anti-pinch function.
1.5 The working principle of swing barrier turnstile system
1) After powered on, the system performs self-check. If no failure is detected, the machine starts to
operate normally. If a failure is detected, the system displays related messages on the LCD
display screen so that the user can have a quick knowledge of and solve the problem.
2) When the reader detects a valid card, the buzzer will give a nice audible prompt to the
pedestrian, indicating that the card is being read successfully. And then, the reader sends signals
to the access controller to request permission to pass through the passage. If the signal is legal,
the access controller will send the open signal to the master control panel.
3) After receiving the signal from the access controller, the control panel sends valid control signals
to the electric motor and opens the barrier.
1.6 Product related parameters
Dimension(mm) SBT1000S: L=200, W=185, H=1100
Input voltage
AC100-120V/200-
240V,50-60Hz
Output voltage DC 24V
Input control signal Switching signal Relative humidity 20%-93%
temperature -28℃-60℃ Pass speed Maximum: 30/minute
Infrared sensor 1
Working
environment
Indoor/Outdoor（If shelter）

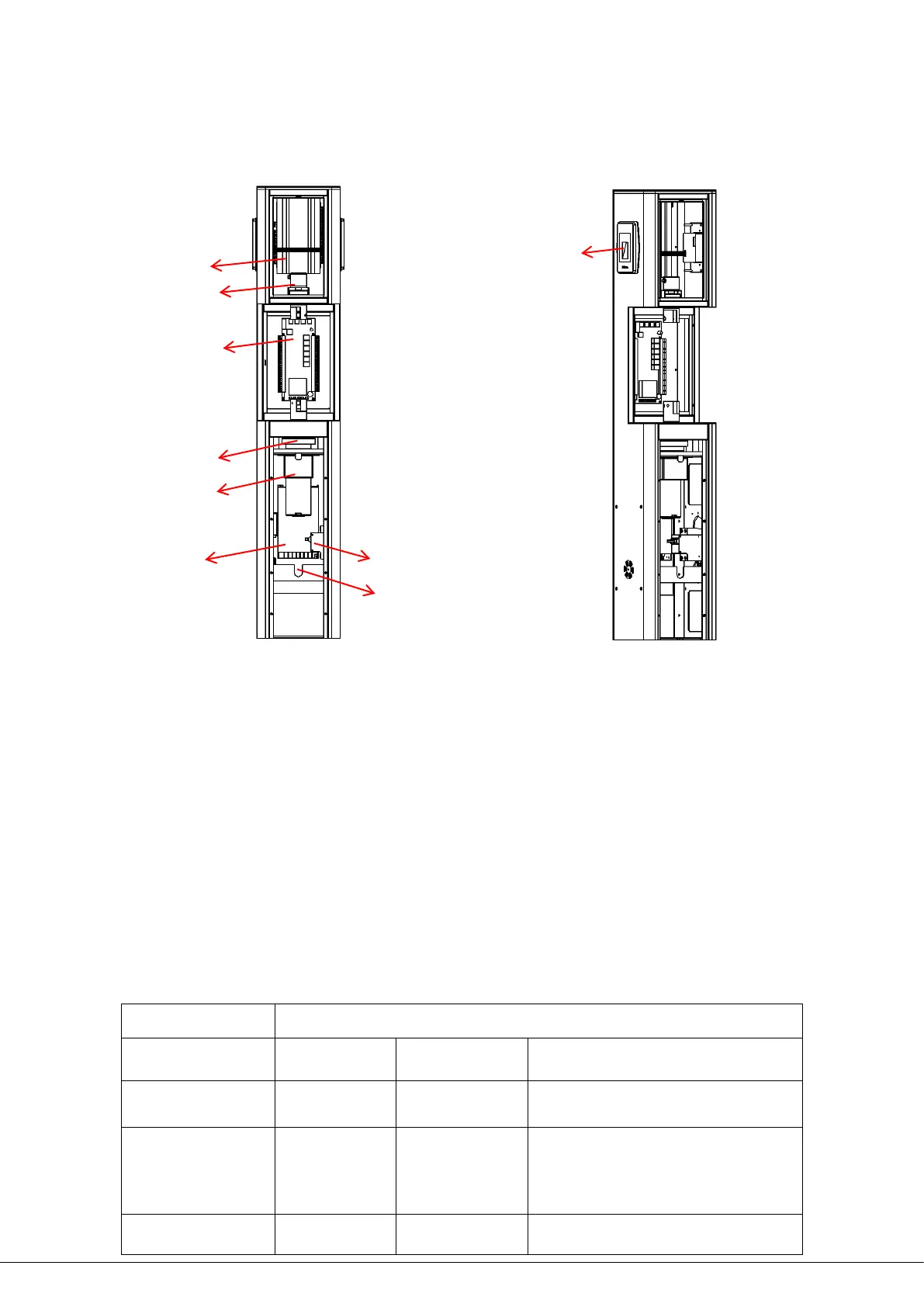

Air switch
Access controller
IR Sensor
24V power supply
Encoder
Control board
Clutch
Reader
