ZKTeco SpeedFace-V5L Quick Start Guide

Method 2: Register on ZKBioAccess IVS Software
Please set the IP address and cloud service server address in the Comm. Menu option
on the device.
11

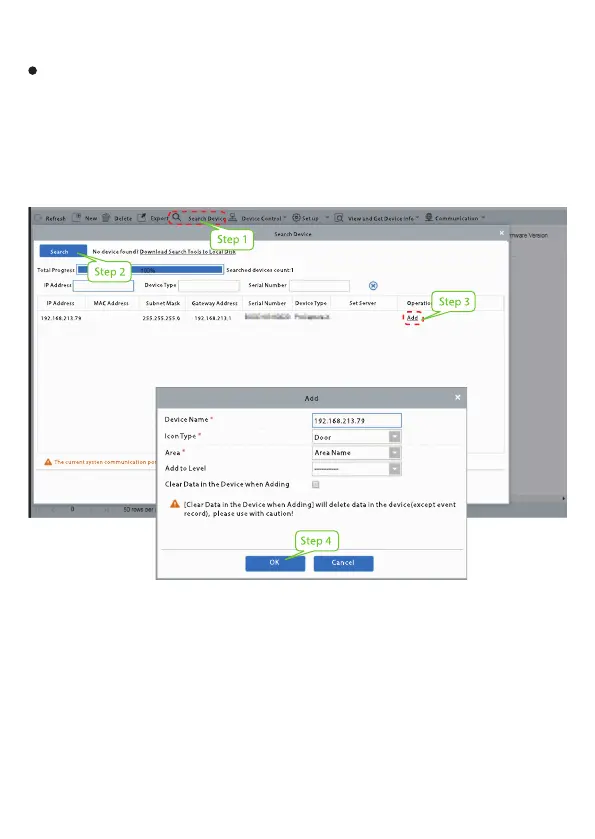

Click [Access] > [Access Device] > [Device] > [Search Device] to search the device
on the software. When an appropriate server address and port is set on the device,
the searched devices are displayed automatically.
1.
Click [Add] in operation column, a new window will pop-up. Select Icon type, Area,
and Add to Level from each dropdowns and click [OK] to add the device.
2.
Click [Personnel] > [Person] > [New] and fill in all the required fields to register a
new users in the software.
3.
Click [Access] > [Device] > [Device Control] > [Synchronize All Data to Devices]
to synchronize all the data to the device including the new users.
4.
For more details, please refer to the ZKBioAccess IVS User Manual.
Register on the PC

ZKTeco SpeedFace-V5L Specifications

General

Face capacity	6000
Housing color	Black, Grey
Event capacity	200000
Built-in processor	Yes
Face recognition duration	1 s
Operating temperature (T-T)	-10 - 45 °C
Temperature measurement range	34 - 45 °C
Temperature measurement accuracy	0.3 °C
Temperature measurement distance	30 - 50 cm
Operating relative humidity (H-H)	10 - 90 %
Input current	3 A
Input voltage	12 V
Ethernet LAN (RJ-45) ports	1
Screen shape	Flat
Display diagonal	5 \
Display technology	TFT
Sensor type	CMOS
Camera resolution (numeric)	2 MP
Type	Face recognition terminal

Weight and Dimensions

Depth (with stand)	22.5 mm
Width (with stand)	91.9 mm
Height (with stand)	220 mm
