X Series User’s Manual Chapter 2 Installation & Operation
Chapter 2 Installation & Operation
Setting up
Before setting up the printer you should consider the following:
1. Make sure there is adequate space around the printer for loading consumables and proper ventilation.
2. Make sure the printer is close to the host so the interface cable is easily accessible at either end.
Parts and Features

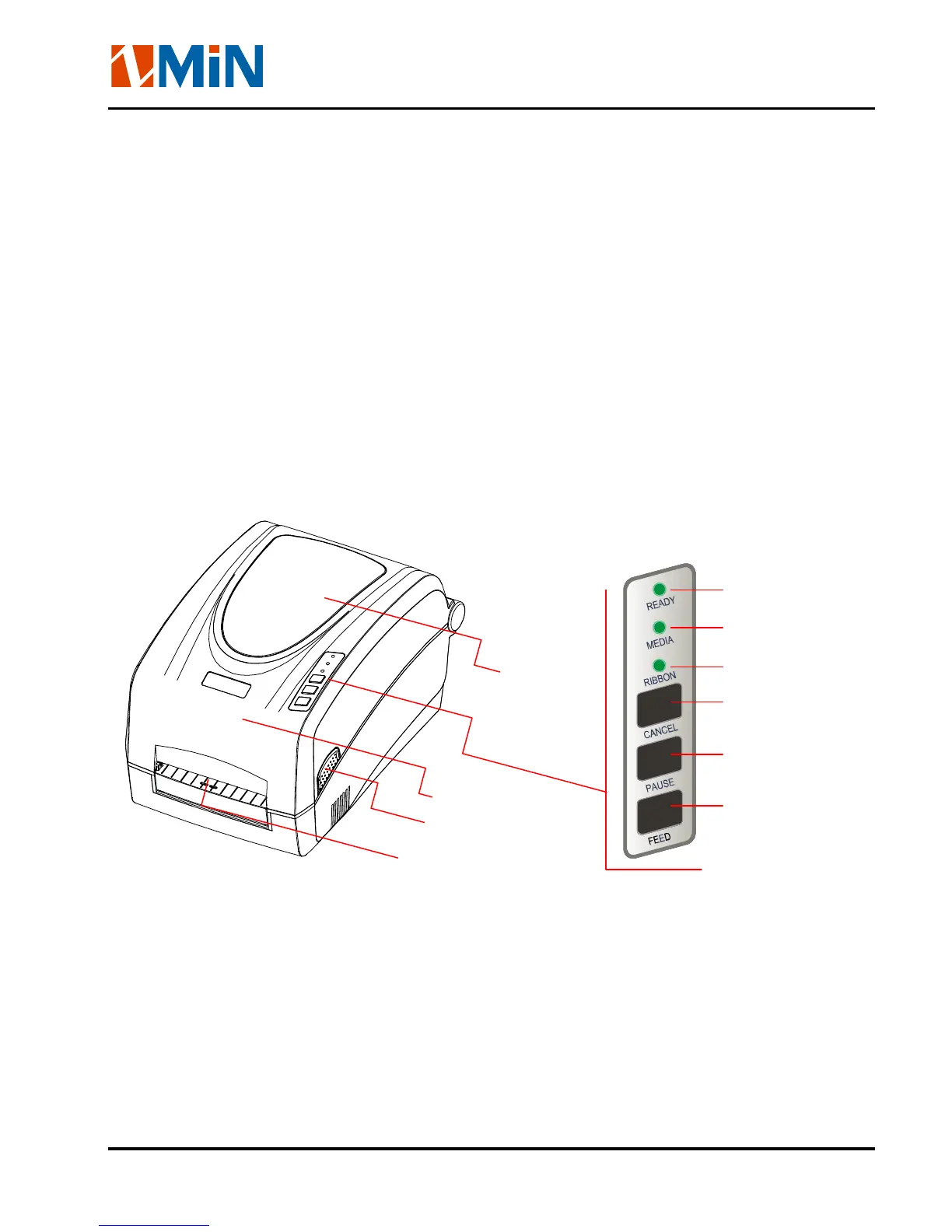

Figure 2
1. Front Panel 2. Media Exit 3. Top Cover
4. Top Cover’s Latch Button 5. Consumables View Window
6. FEED Key 7. PAUSE Key 8. CANCEL Key
9. READY Indicator Light 10. MEDIA Indicator Light 11. RIBBON Indicator Light
