Zmotion ZMC420SCAN Hardware Manual

ZMC420SCAN Motion Controller
18
3 IN16 Enter 16
4 IN17 Enter 17
5 IN18 Enter 18
6 IN19 Enter 19
7 IN20 Enter 20
8 IN21 Enter 21
9 IN22 Enter 22
10 IN23 Enter 23
2.2.5 General output:

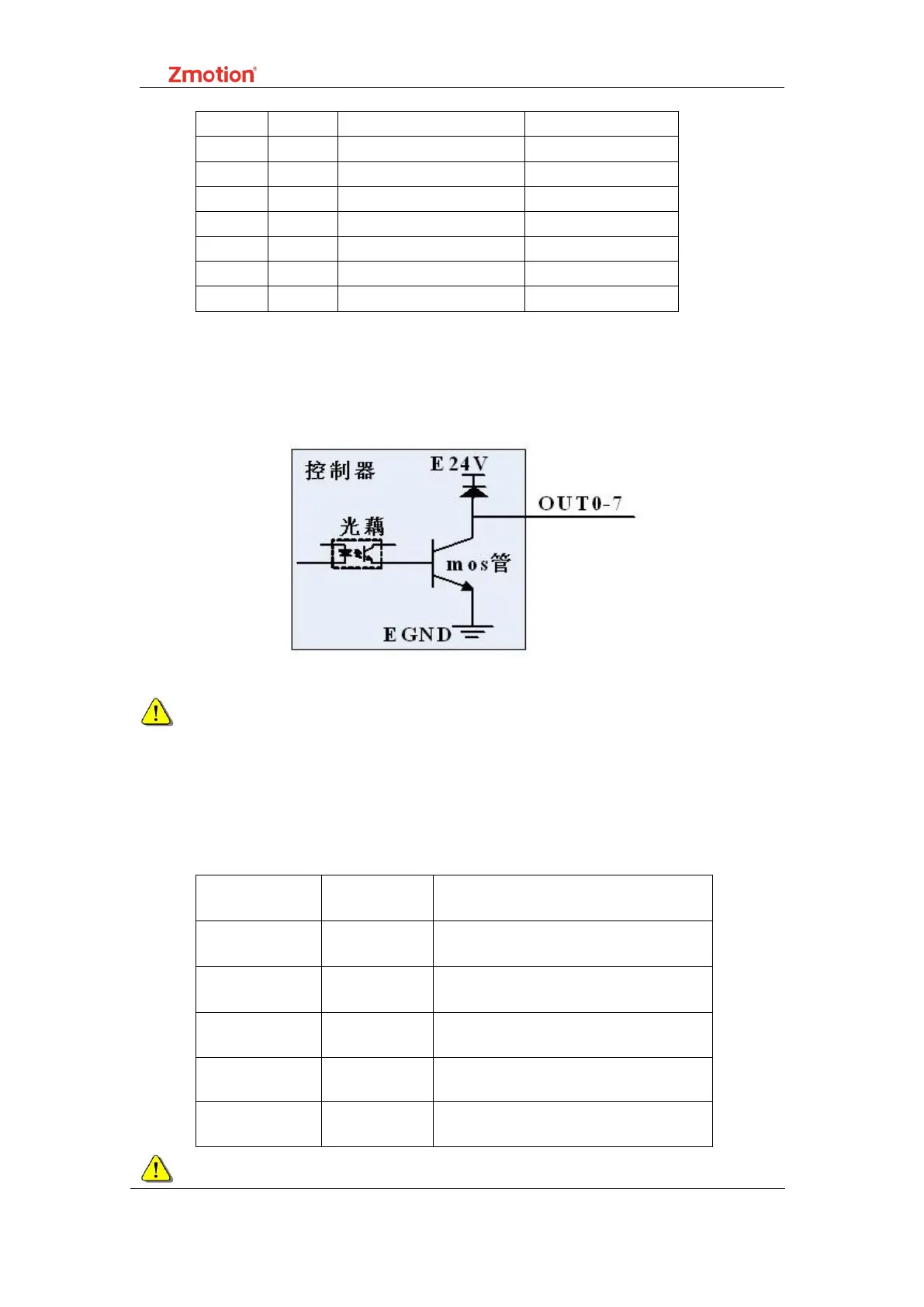

Output circuit
There is another universal output port without current amplification in each axis
signal, see the description of the axis interface.
2.2.5.1 Output 0-2:
Pin
number
name Explanation
6
EGND External power
ground
7
E5V External 5V power
output.
8 OUT0 Output 0, PWM0,
PUL6
9 OUT1 Output 1, PWM1,
DIR6
10 OUT2 Output 2, PWM2,
PUL7
OUT0 --- 11 has the function of PWM, when PWM is off, it is a general
