SECTION 5 – DIAPHRAGM ASSEMBLY
Diaphragm Assembly:
Prior to reinstalling the diaphragm, rinse the diaphragm and the inner extension
pipe thoroughly to remove any grit or algae. Make sure grey retaining ring is fitted
onto diaphragm. Make sure grey retaining ring is fitted onto diaphragm.

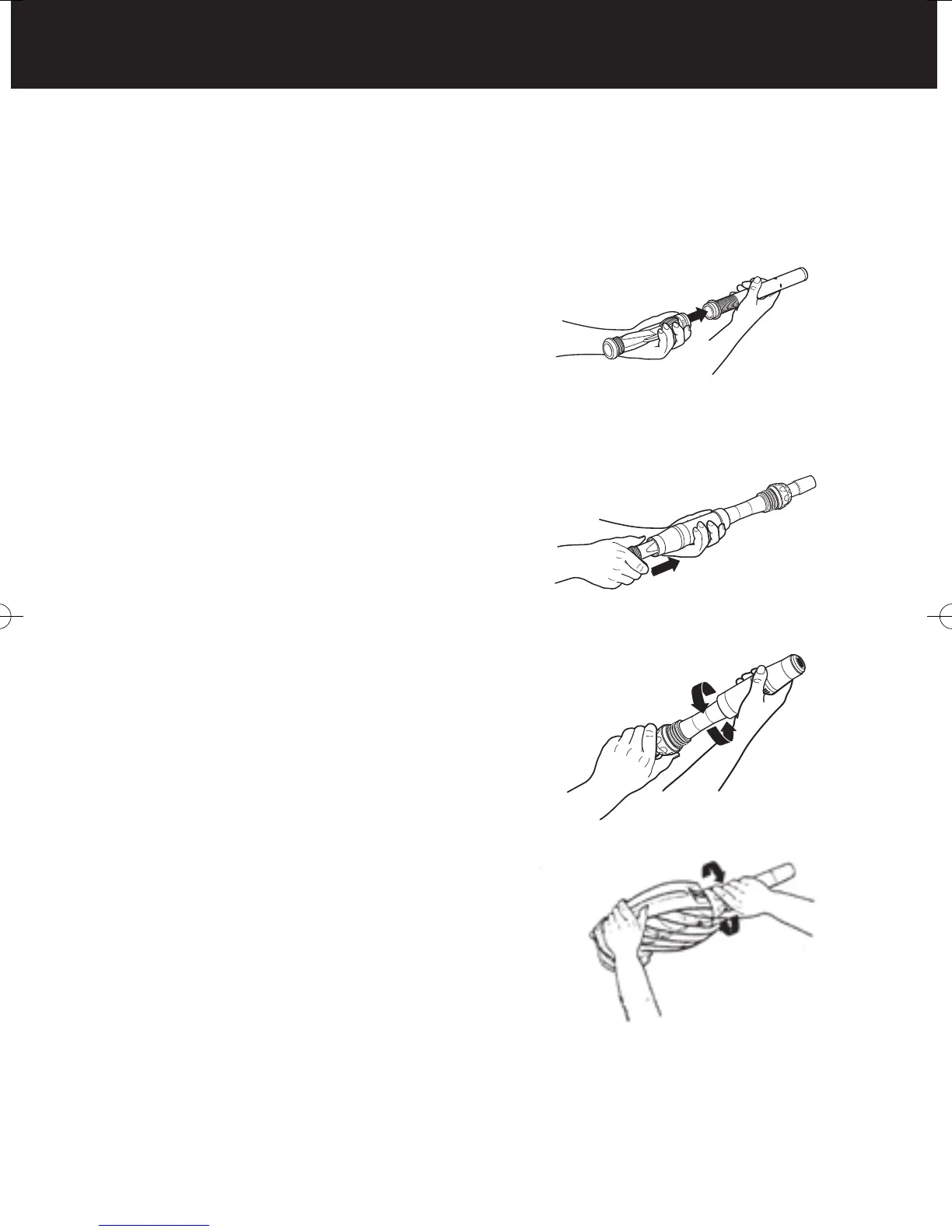

Step 1:Push the diaphragm onto the end of
the inner extension pipe until it sits
flush against the raised lip.
Step 2:Push the inner extension pipe through
the narrow end of the yellow cassette
chamber (this will make a grating noise)
Step 3:Fit the inner extension pipe back into
the blue outer extension pipe body and
twist until secure
Step 4:Hold the machine head and slide the
yellow cassette chamber back into the
head of the machine.Turn in a
clockwise direction until firm
(approximately three turns).
Do not over tighten.
