SECTION 1 – INSTALLATION
ASSEMBLING THE WEIR FITTINGS
With your hose lengths and cleaner connected, add the hose protector to
the last hose which will be connected to the weir.

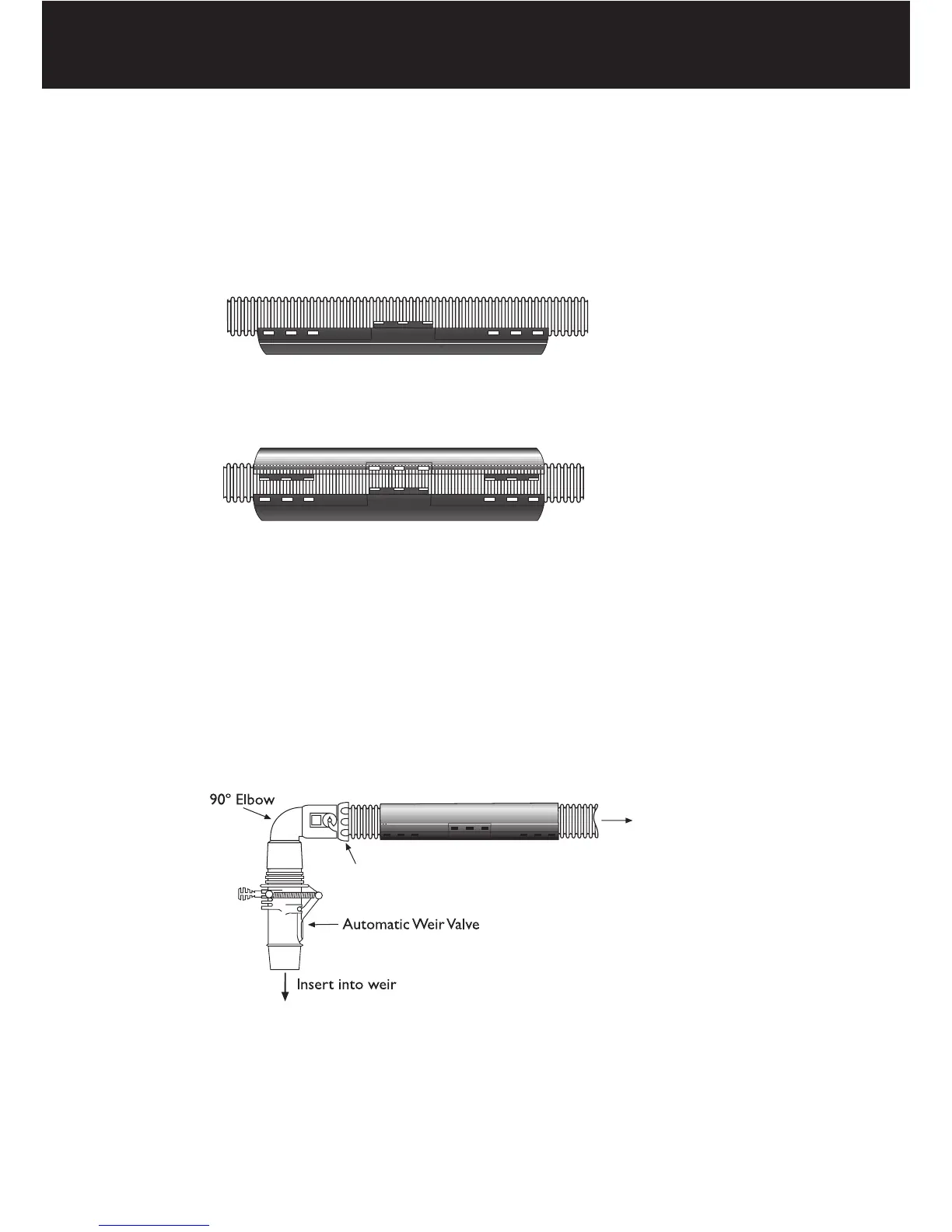

1. Place the hose into one half of the Hose Protector.
2 . Place the other half of the Hose Protector over the hose ensuring that
the clips line up.
3 . Apply pressure to both halves of the Hose Protector until both halves
clip into place.
POSITIONING THE WEIR FITTINGS
The ideal position to t the Hose Protector is directly after the hose cuff.
Note: If the hose is connected directly to the Auto Weir Valve (not
advised), position the Hose Protector approximately 10cm from the
hose cuff.
Now connect this hose to the 90º Elbow and Auto Weir Valve as shown
in Figure 1. Plug the Auto Weir Valve and hose into the weir. Your cleaner
should begin cleaning your pool.
To Automatic
Pool Cleaner
(APC)
Male Hose Cuff
Fig. 1
