ECG MONITORING 740 SELECT
21-22-0335 Rev D Page 13 of 40

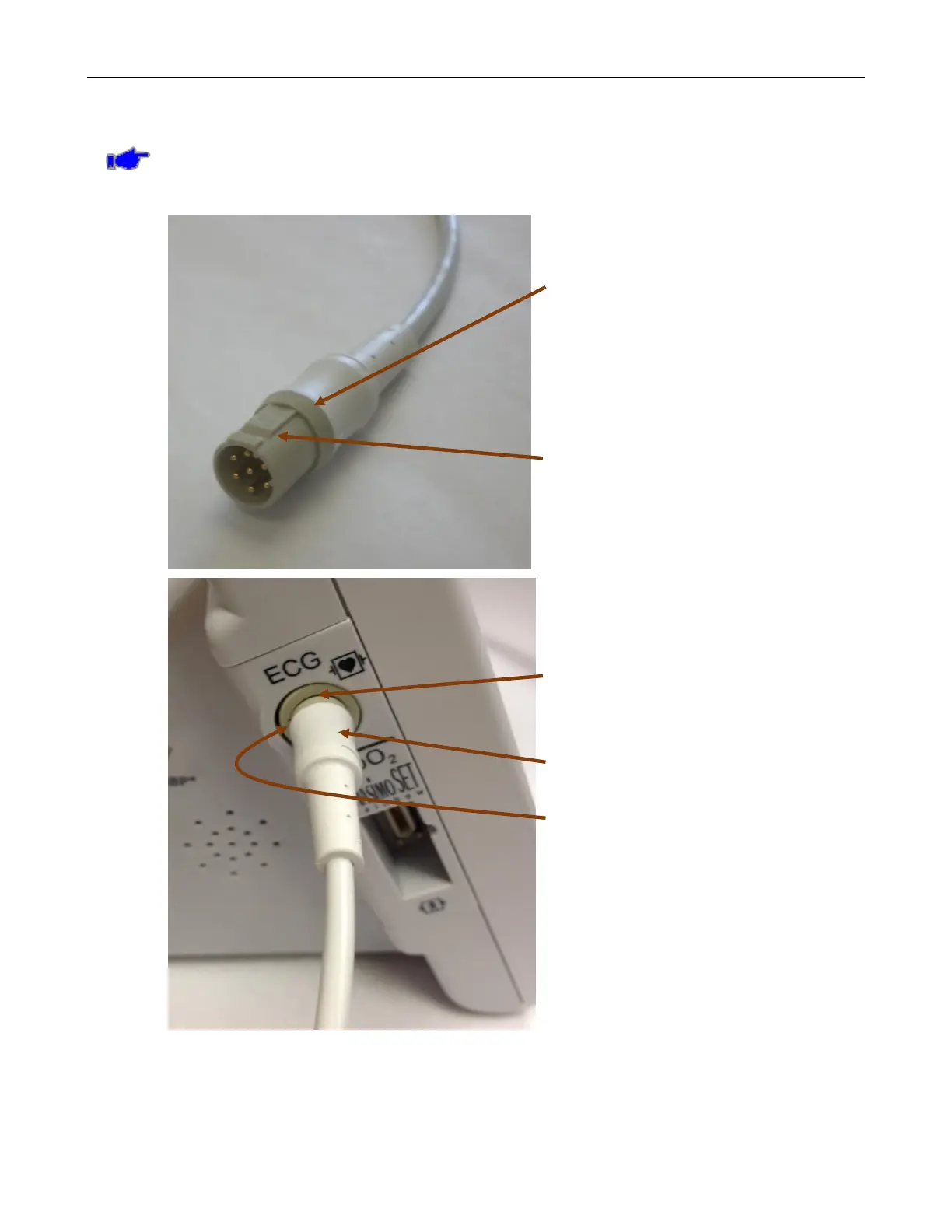

Insert the ECG Patient Cable to the ECG Patient Cable Receptacle located on the on the
left side of the Monitor. Refer to Figure 2.
Note: The ECG Receptacle is keyed so that the ECG Patient Cable can only be inserted
into the monitor in one orientation. The key on the ECG Patient Cable Receptacle is located
towards rear of monitor.
ECG Patient Cable connector
Connector key
ECG Patient Cable connected to Monitor
Receptacle and Connector key mated
Key is towards rear of monitor
(not shown)
Figure 2: ECG Patient Cable connected on Monitor
