12 Volt backup sump pump system model 507 & model 510
Application - For Clear Water, emergency backup usage when power is off or primary pump fails.
Extra Protection - When the primary AC pump fails due to power outages or system problems.
• Storms
• Brownouts
• Wiring or electrical problems
Extra Protection - When the primary pump fails to keep up with excessive water due to rain or overloading.
Includes:
- Pump and control
- Charger
- Fittings
- Battery Case
(Battery Not Included)
For submersible or pedestal installations.
See FM1311 (507) or FM1139 (510) for information. Suitably sized basin required.
*MINIMUM DISTANCE 2" BETWEEN PUMPS
On some installations it may be desirable to install an independent hanger for the level control switches to avoid possible hang ups on the pumps, piping, valves,
etc. Float hangers are available from Zoeller Company on Catalog Sheet FM0526 or can be fabricated from standard pipe and fi ttings.

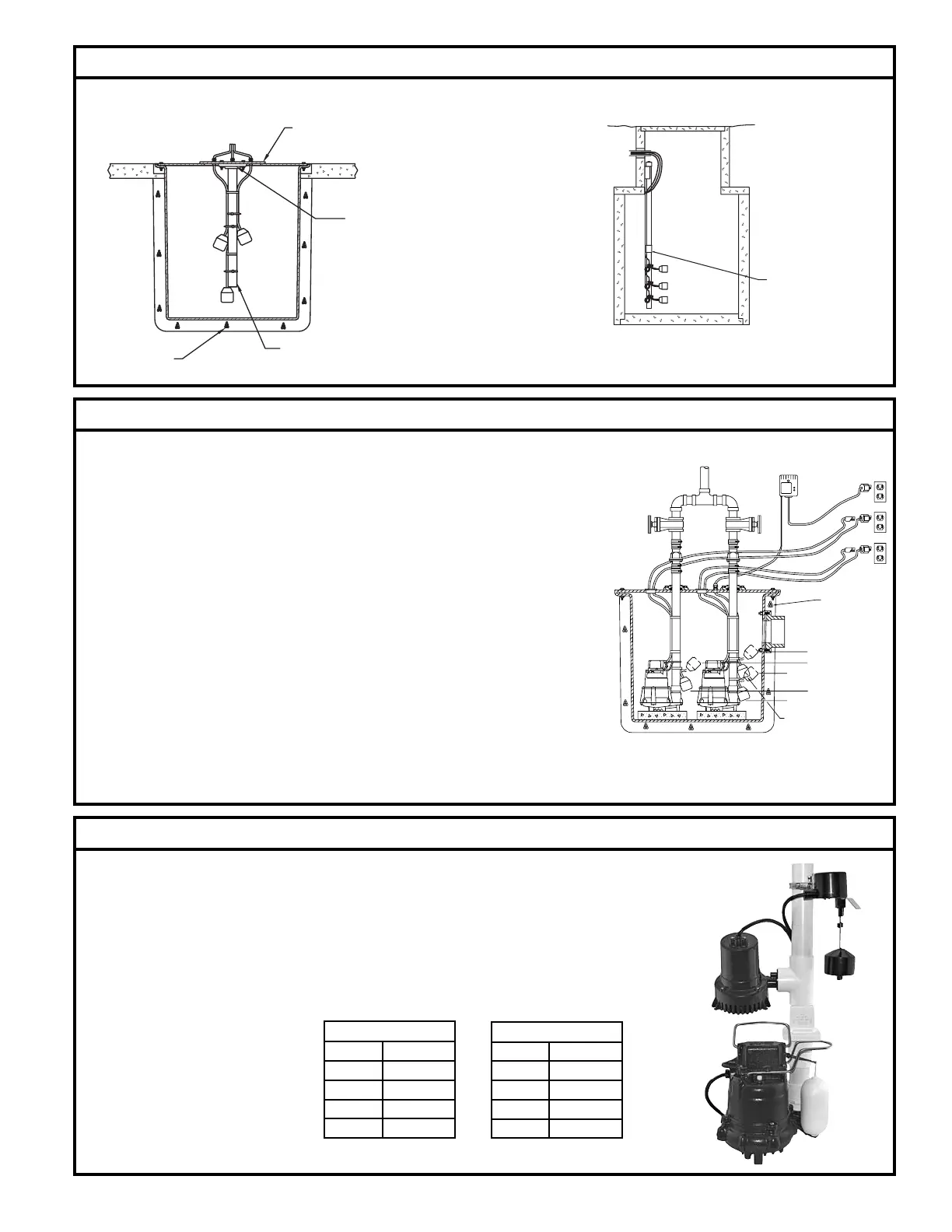

SUGGESTED METHODS OF FLOAT INSTALLATION
TYPICAL FLOAT HANGER ON CONCRETE PITS
OR SEPTIC TANK RISERS
TYPICAL FLOAT HANGER ON STEEL COVER PITS
“EXTRA PROTECTION SYSTEMS”
THE BASEMENT SENTRY
®
TWO PUMP SYSTEM
The “Extra Protection” Two Pump system is an economical solution to the costly duplex al ter nat ing
pump system and it's easy to install.
The “Extra Protection” Two Pump Systems consists of:
a. The two nonautomatic pumps with VLFS of your choice
b. One Alarm System
c. Two Unicheck Valves as required
ADVANTAGES
(1) The Two pump systems offers high pump per for mance without the high price. It is a system that
fi ts your needs and your budget.
(2) Delivers more dependability than a single pump sys tem and great ly reduces the chance of costly and
time consuming problems as so ci at ed with wear out or dam ag es and the re sult ing system failures.
(3) Affords greater satisfaction and peace of mind to all concerned by providing state of the art protection
for costly and expensive surroundings.
(4) Ability to change lead and lag positions by changing pump plug connection.
(5) Easy and economical to install.
ACCESS COVER
STANDARD PIPE
FLANGE
PVC OR LIGHT WEIGHT
STAINLESS STEEL PIPE
PEAGRAVEL
TYPICAL FLOAT HANGER ON CONCRETE PITS
OR SEPTIC TANK RISERS
10-1457 FLOAT TREE
WITH 3 FLOATS SHOWN
PUMP 1 ON
PUMP 1 OFF
PUMP 2 ON
PUMP 2 OFF
ALARM ON
VARIABLE LEVEL FLOAT SWITCH
(ALARM)
PUMP 1
PUMP 2
ALARM
P/N 10-1494 ILLUSTRATED
PEAGRAVEL
SK1217
SK1218
SK878
MODEL 507
TDH (ft) Flow (GPM)
523
10 15
15 5
17.5 Shut-off Head
MODEL 510
TDH (ft) Flow (GPM)
5 33.8
10 21.6
15 10.6
19.9 Shut-off Head
