Monitoring (Cont.)

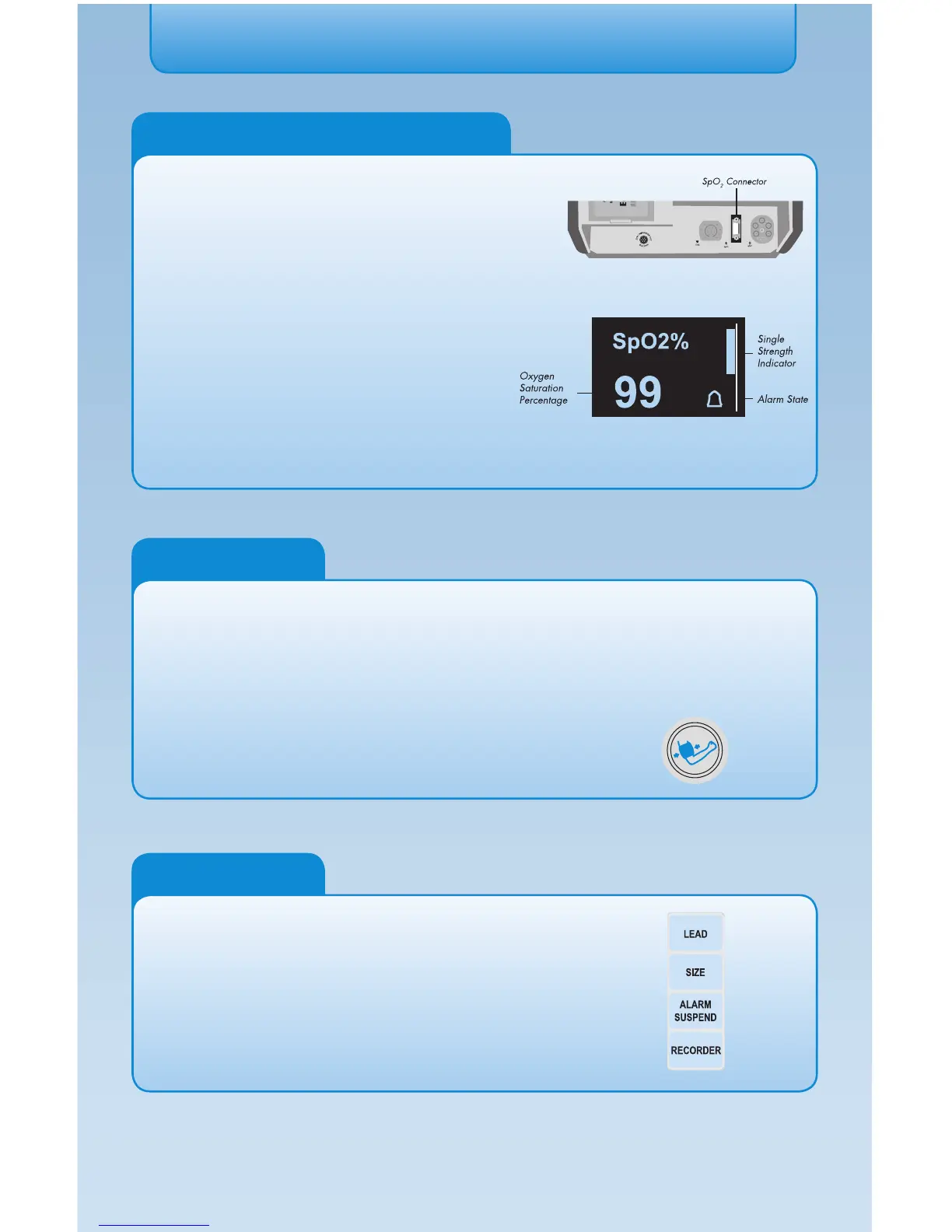

SpO
2
1. Connect the SpO
2
cable to the patient sensor and to
the blue SpO
2
port on the rear of the unit labeled SpO
2
.
2. Attach sensor to patient’s finger.
3. Turn selector switch to grey area labeled MONITOR on
the R Series ALS. If using BLS or Plus device, turn ON,
then press Manual then Confirm softkeys to use
in ALS mode.
4. If properly attached, the SpO
2
values will display
on the screen.
5. To display waveform: Press Options softkey.
Press Traces softkey. Press Trace 2 or Trace 3
softkey. Select SpO
2
softkey.
NIBP
1. Plug NIBP cable into the back of the unit in silver port marked NIBP.
2. Attach appropriate BP cuff to patient’s arm or thigh.
3. Turn selector switch to grey area labeled MONITOR. If using BLS or Plus device,
press Manual then Confirm softkeys to use in ALS mode.
4. For ALS: Press the Param softkey, then press the NIBP soft key.
5. On BLS or Plus device, press illuminated blood pressure icon on
bottom left to take measurement.
Alarms
1. Press the Alarms softkey to select alarms.
2. Press Return softkey to activate alarms.
3. To mute for 90 seconds: Press ALARM SUSPEND button.
4. To reactivate muted alarm: Press ALARM SUSPEND button.
5. To disable: Press and hold ALARM SUSPEND for 3 seconds.
Note: Alarms are still active, but silent.
