ZOLL R Series Quick Reference Guide

Page 2
Applying Therapy

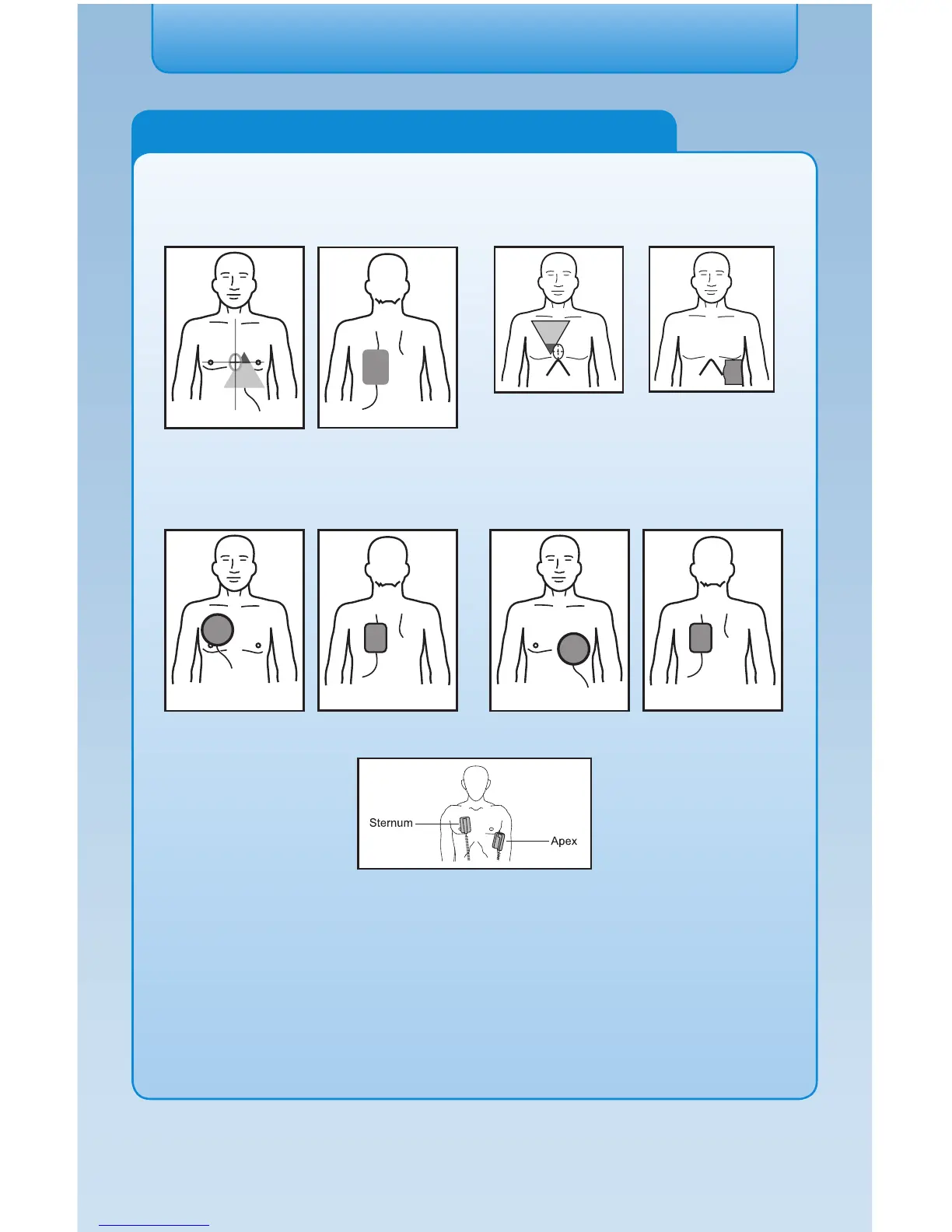

Proper Electrode or Paddle Placement
Paddle Placement
1. Grasp paddles on each side of unit.
2. Press down on RELEASE latches with thumbs and remove the paddles from their holders.
3. Apply gel to electrode surfaces or gel patches to patient. If using gel, rub electrodes
together to spread gel.
4. Place sternum paddle to the right of sternum, just below clavicle.
5. Place apex paddle left of nipple on anterior-axillary line.
6. Press paddles firmly against patient’s skin.
BACKFRONT
OneStep Complete Resuscitation Electrode
Anterior/Posterior Placement
OneStep CPR Anterior/Anterior
Electrode Placement
BACKFRONT
Atrial Arrhythmias
Cardioversion Electrode
Anterior/Posterior Placement
BACKFRONT
Ventricular Arrhythmias
Cardioversion Electrode
Anterior/Posterior Placement
Electrode shown is OneStep CPR Anterior/Anterior

ZOLL R Series Specifications

General

Defibrillator Type	Manual and AED
Pacing	Yes
ECG Monitoring	Yes
SpO2 Monitoring	Yes
FAST-SpO2	Yes
IP Rating	IP55
Defibrillator Waveform	Biphasic
Energy Levels	1-360 Joules
Display	LCD
Pacer Type	Demand
Pacer Rate	30-180 ppm
Pacer Output	0 – 140 mA
EtCO2 Monitoring	Optional
NIBP Monitoring	Optional
Temperature Monitoring	Optional
Printer	Integrated
Battery Type	Lithium-ion
CPR Feedback	Yes
Data Storage	Internal memory
Connectivity	USB
