5

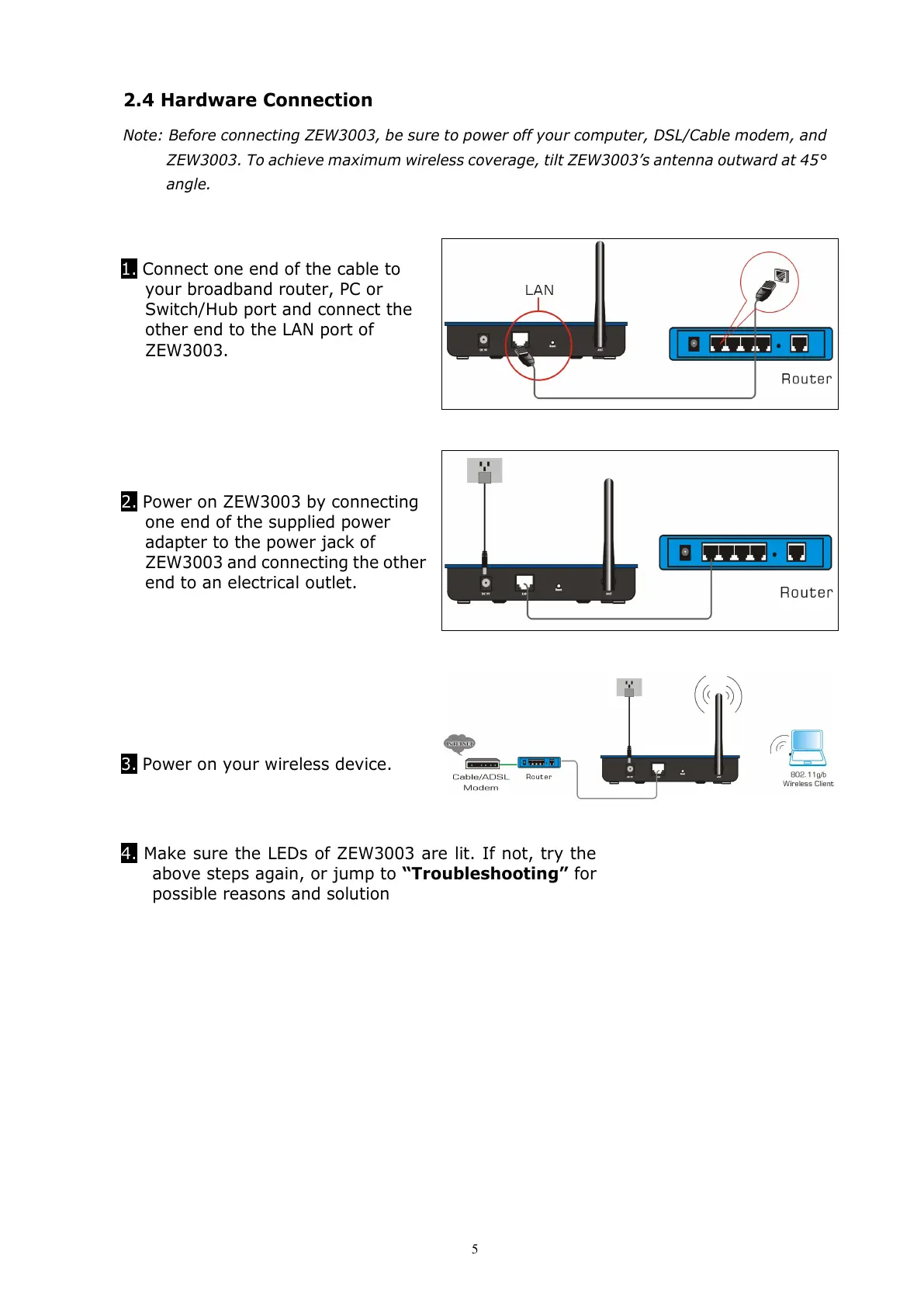

2.4 Hardware Connection
Note: Before connecting ZEW3003, be sure to power off your computer, DSL/Cable modem, and
ZEW3003. To achieve maximum wireless coverage, tilt ZEW3003’s antenna outward at 45°
angle.
1. Connect one end of the cable to
your broadband router, PC or
Switch/Hub port and connect the
other end to the LAN port of
ZEW3003.
2. Power on ZEW3003 by connecting
one end of the supplied power
adapter to the power jack of
ZEW3003 and connecting the other
end to an electrical outlet.
3. Power on your wireless device.
4. Make sure the LEDs of ZEW3003 are lit. If not, try the
above steps again, or jump to “Troubleshooting” for
possible reasons and solution
