USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0
58
5 Configuration Examples
5.1 Example One – PPPoE on the WAN
Sales division of Company ABC likes to establish a WLAN network to support mobile
communication on sales’ Notebook PCs. MIS engineer collects information and plans
the WLAN Broadband Router implementation by the following configuration.
WAN configuration:
PPPoE
User Name H890123456
Password PW192867543210
LAN configuration
IP Address 192.168.1.254
Subnet Mask 255.255.255.0
Default Gateway 0.0.0.0
DHCP Client Range 192.168.1.100 – 192.168.1.200
WLAN configuration
SSID MyWLAN
Channel Number 11
Internet
xDSL/ CM
Power adapter
Ethernet
Cable
Ethernet cable
SSID: MyWLAN
Channel: 11
DHCP client
SSID: MyWLAN
Channel: 11
DHCP client
SSID: MyWLAN
Channel: 11
DHCP client
SSID: MyWLAN
Channel: 11
DHCP client
DHCP client
Bridge mode
PPPoE connection parameters:
User Name: H890123456
Passwrod: pw192867543210
SSID: MyWLAN
Channel: 11
DHCP range: 192.168.1.100 to 192.168.1.200

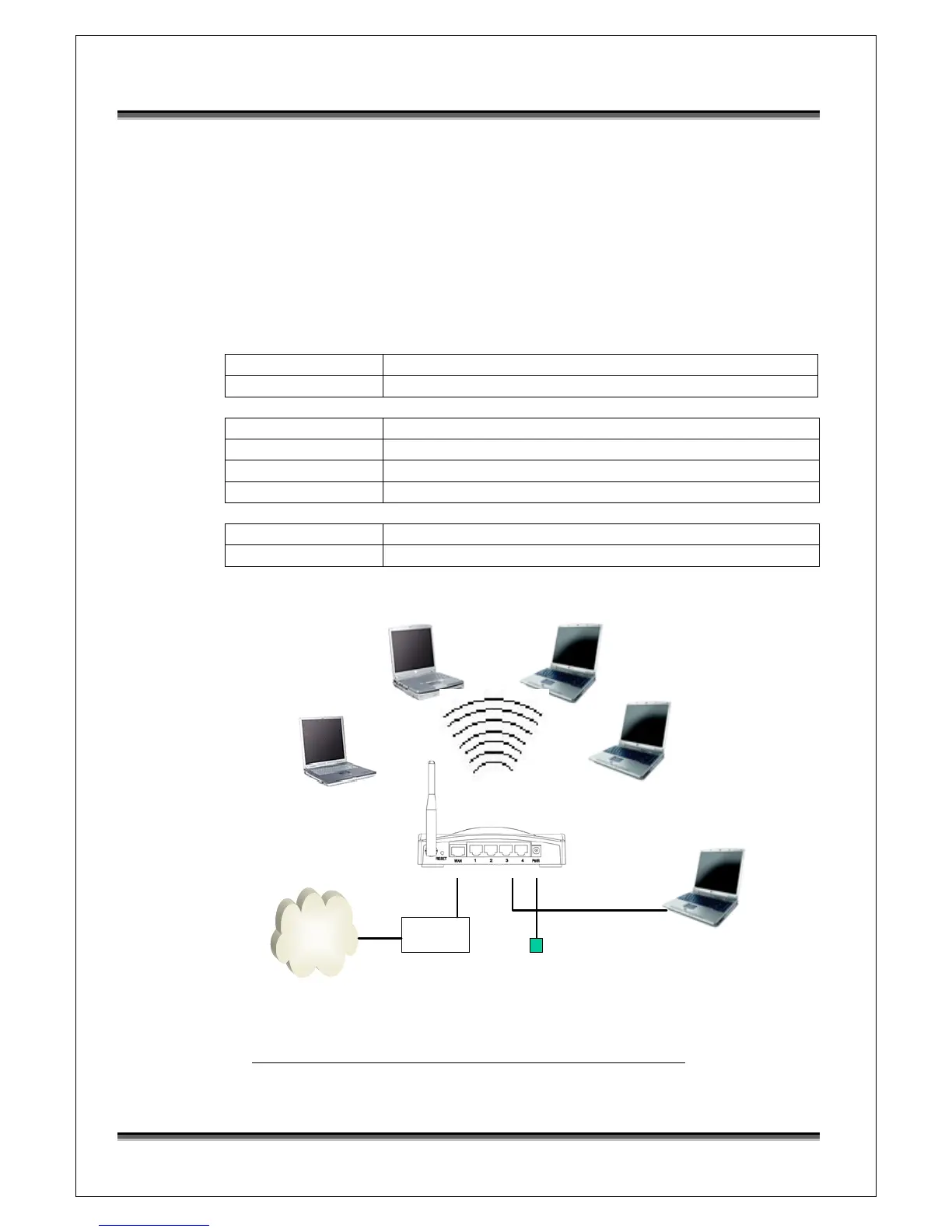

Figure 3 – Configuration Example One – PPPoE on the WAN
