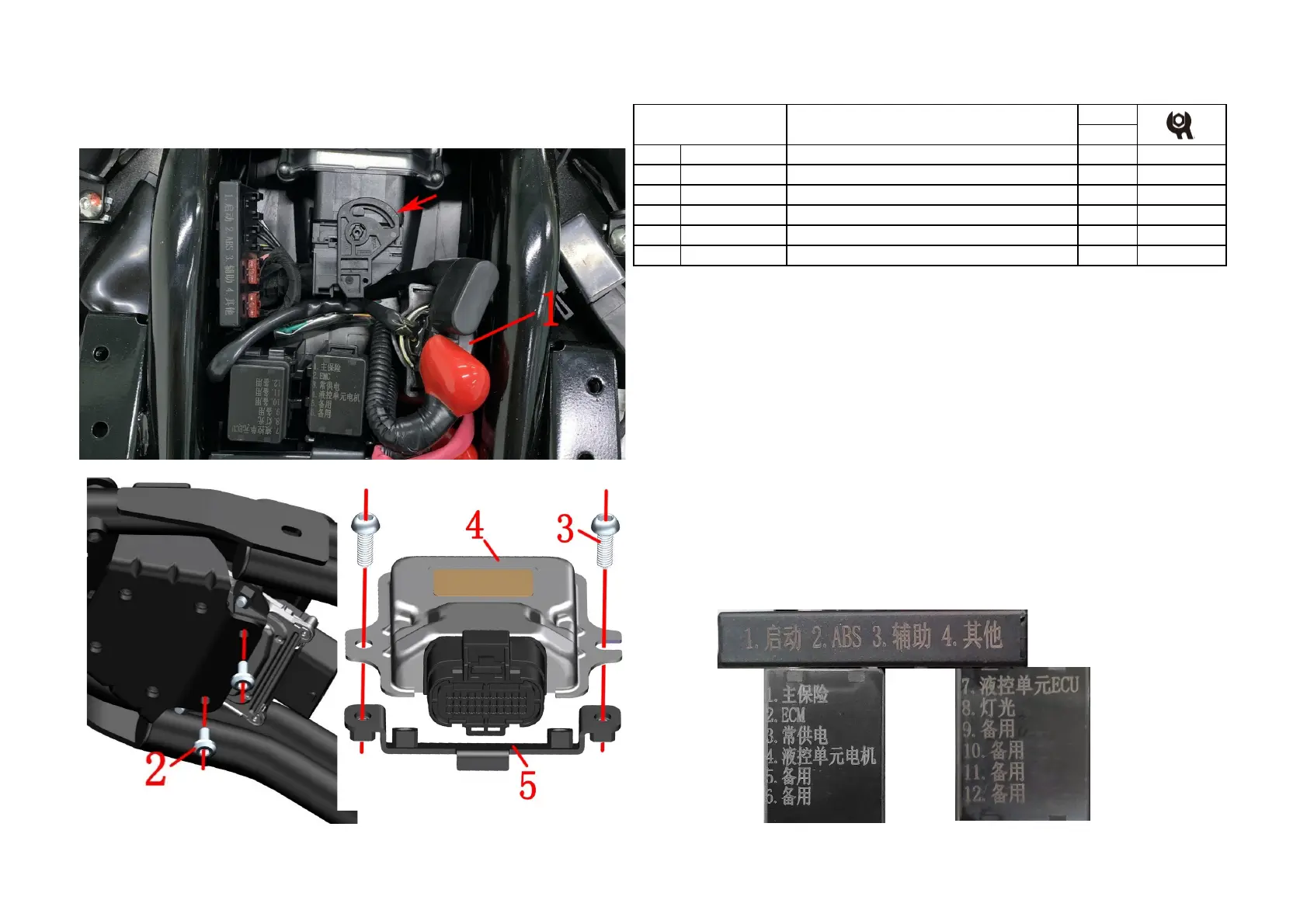

1-FRAME&ELECTRONIC COMPONENT
9
CHK
ADJ
NO. PART NO.
1 1184300-002000 ZT350 starting relay 1
2 1251100-119093
Non-standard bolt M6×12 (environmental color) 2
3 1251100-120093
Non-standard bolts M6×16 (environmental color) 2
4 MSE8.0 controller-ZT152MI (Euro 5) 1
5 1271200-204000 KD150 MSE8.0 Controller Bracket 1
7
A
BS ECU
1 Main fuse
8
l
ights fuse
2 ECM
9
R
esrve
3 ACC
10
R
esrve
4 ABS motor
11
R
esrve
5 Resrve
12
R
esrve
6 Resrve
PROCEDURE:
●Relay
Turn off the positive and negative.protective rubber caps (red for the positive and black for the negative) of the
starter relay⑴
.Using 10#sleeve remove nuts then remove the positive and negative connectors, and screw the
nut back onto the relay stud to preventloss.Take off plug of the start relay and main hamess.
●ECU
After pressing the anti release buckle,rotate the ECU cable plug counterclockwise and pull it out.
Remove the bolt ⑵ at the bottom of the frame with a 5# hexagon socket, and then remove the ECU assembly.
Using 5# inner hexagon socket remove 2pcs bolts⑶ then take off the ECU⑷ from the ECU bracket⑸.
CAUTION:
●The cushion and rear cover should be removed in advance.
●When Take off the plug can't drag any cable.
●Please refer to the driver's manual for details about the related content of the EFI fault code. The latest electronic
version of the driver's manual can be downloaded from the corresponding model introduction page of the
official website.
Fig.3FRAME&ELECTRO
NIC COMPONENT
Electronic parts COMPONENT 3
Start ABS Aided Other
