3-INTAKE SYSTEM COMPONENT
17
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251112-001093 M6×16 Hexagon flange bolts (color zinc) 2
2 1050956-010000
KD150-G1 EFI High Pressure Tubing Sub-assembly 1
3 1051468-007000 31.8×2 fluorine rubber O-ring 1
5 1051356-010000 Φ45×10 pipe clamp assembly 1
6 1050956-021000 ZT29 Throttle body assembly 1
7 1050968-003000 EV14 injector G06 1
8 1050968-002000 ZT1P58MJ injector holder 1
9 1251100-061093
M6×22 Hex flang bolt thread level 8.8 (color Zinc) 1
11 1050961-003000
External intake air pressure sensor
1
12 1050956-025000
KD150Fixed bracket for external intake pressure sensor
1
CAUTION:
●First it need to remove the cushion,side cover,oil tank outside cover and liner,rear shock absorber
a
nd electrical device box etc.
●When removing the high pressure oil pipe,It is sure to operate until the engine and muffler are
completely cooled.
●Fireworks, answering or dialing should be strictly prohibited near the car-breaking site to prevent
accidents.
PROCEDURE:
●High-pressure oil pipe
Press
the anti-trip buckle on the high-pressure fuel pipe ⑵ and then connect the oil pan to contain the
remaining fuel. Be careful not to let the fuel drip onto the bike body.
●Throttle valve body assembly
Unplug the connector of the throttle valve body, remove the throttle cable and use an 8# wrench to remove
the 2 bolts (1) Remove the throttle valve body assembly.
Remove the O-ring ⑶, check carefully for damage before reinstalling.
Remove theconnection hose⒀ at the A-end.
Use 8# wrench to remove the bolt ⑼,take off the External intake air pressure sensor component,injector
holder⑻and injector ⑺
After loosening the clamp ⑸, remove the throttle valve body assembly ⑹and intake manifold assembly⑷ ,
and then remove the clamp ⑸.
●External intake air pressure sensor
Using screwdriver for cruciform head remove the bolt ⑽,take off the sensor⑾and support⑿,then remove
the connection hose⒀.
4
ZT158M Intake pipe assembly (with intake pressure
sensor)
1
13 1050956-022000

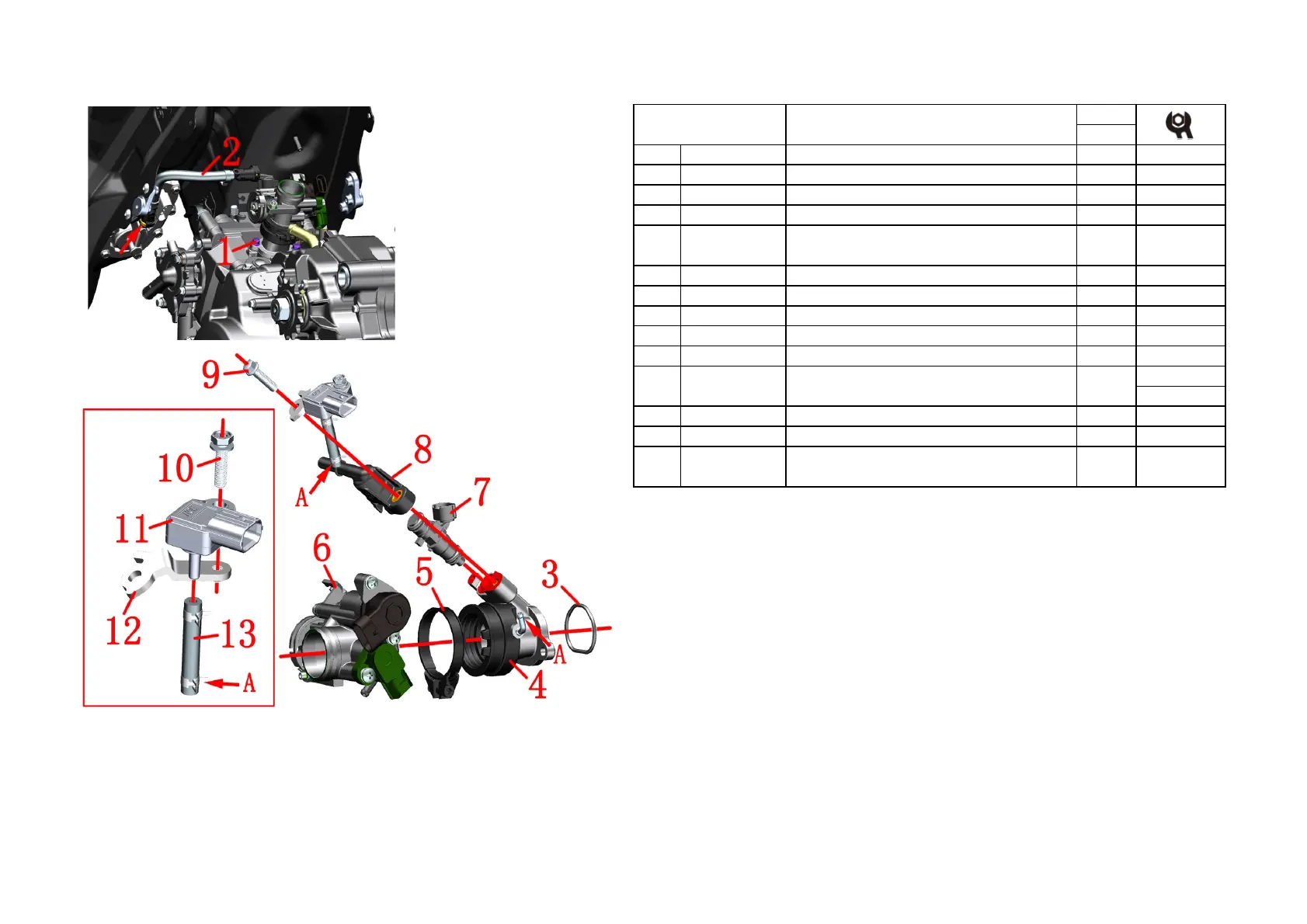

Fig.2 INDUCTION
SYSTEM COMPONENT
Throttle valve body component
Intake pressure sensor connection hose(φ3.5×φ7.5×
L38.5)
1
1
GB9074.13 Hexagon cross groove spring,flat cushion
combination bolt M5×20
1250106-11200010
