Zontes ZT125-GK User Manual

11-REAR COVER COMPONENT
78
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1250303-011093
GB6177.1M8
（
color zinc
）
2
2 1271200-185000
KD150
－
GK PKE bracket
1
3 1271200-144000
KD150
－
G1 battery holder (gel battery)
1
4 1251100-102000 Non-standard bolt M6×16(304 stainless steel) 2
5 1274100-057095
Flanging bushing φ6.2×φ8.4×3.5
＋
φ14×1.5
2
6 1244100-052000
Buffer rubber of flanging bushing
（
φ8.5×φ14×1
）
2
7 1184200-137000
ZT310 PKE new version
（
band version
）
1

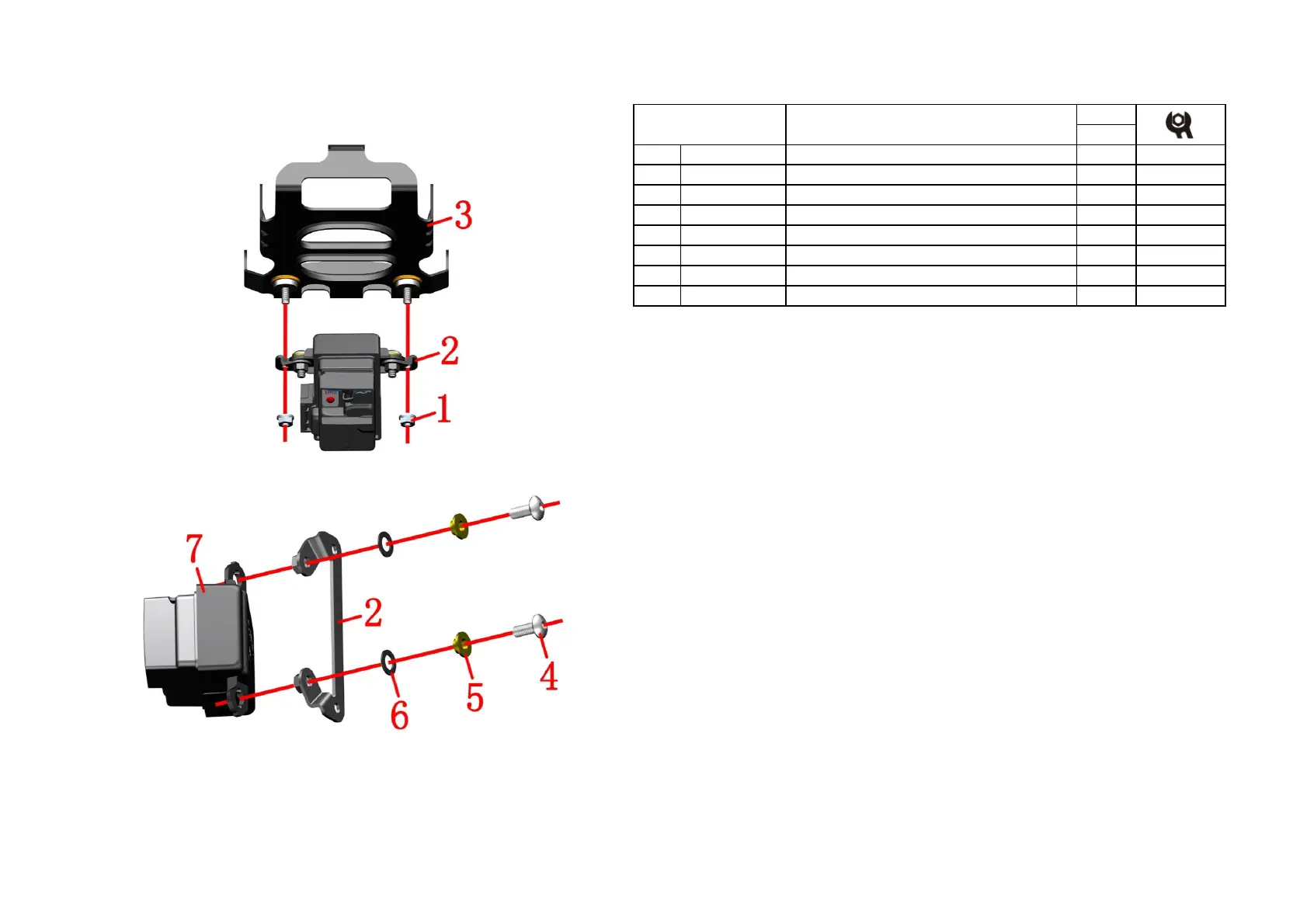

Fig.8 REAR COVER
COMPONENT
Electrical device box component
PROCEDURE:
●PKE coponent
Using 10# sleeve to respectively remove the 2bots⑴,then take out the PKE component on battery holder⑶.
Using 4# inner hexagon socket remove 2pcs bolts⑷,take off the bushing⑸ and the cushion rubber⑹.
CAUTION:
●When removing the buckle, pay attention to the strength to prevent damage to the buckle.
●When reassembling, check whether there is any pressure on the wire to prevent short circuit when tightening
the bolt.

Zontes ZT125-GK Specifications

General

Displacement	124.7 cc
Transmission	6-speed
Fuel System	Electronic Fuel Injection
Cooling System	Liquid-cooled
Seat Height	795 mm
Tires Front	110/70-17
Tires Rear	130/70-17
ABS	Dual-channel ABS
Engine Type	Single-cylinder, 4-stroke
Power	14.7 hp @ 9000 rpm
Fuel Tank Capacity	20 liters
Brakes	Disc (front and rear)
Rear Suspension	Mono shock absorber
Front Suspension	Upside-down telescopic fork
