11-REAR COVER COMPONENT
71
CHK
ADJ
NO. PART NO.
1 4021200-036021
KD150-G1 right rear rack (matte black )
1
2 4021200-035021
KD150-G1 left rear rack (matte black ) 1
3
1251100-101000
（
）
4 1251100-123093
Non-standard bolt M8×25 (color zinc) 4
5 1224100-010000
－

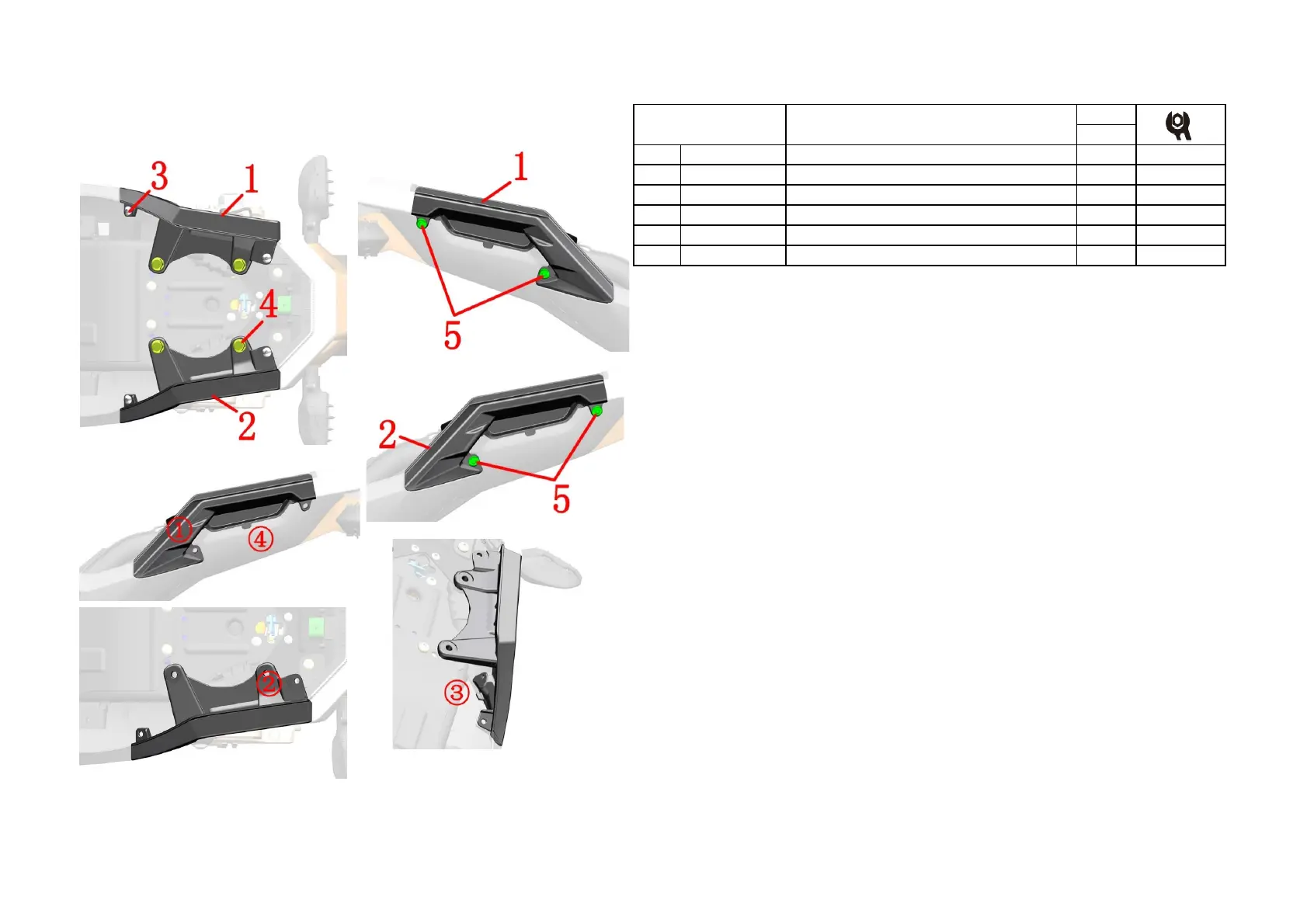

Fig.1 REAR COVER
COMPONENT
Rear armrest assembly
PROCEDURE:
●Rear armrest assembly
Remove the rear armrest: use 4# inner hexagon to remove 4 bolts ⑶, then use 14# sleeve to remove 4 bolts ⑷,
and finally remove 4 expansion nails ⑸. First grasp the position ① with your left hand, and then grasp the
position ② with your right hand, and slightly lift the position ② and rotate it counterclockwise about a quarter
turn to remove the rear armrest.
Installation of the rear armrest: first snap the small convex platform at ③ into the groove of the rear cover.
Note: The inner wall at ③ is between the rear cover and the electrical device box. Then snap the platform at ④
into the groove on the electrical device box. Finally, install 4 expansion nails ⑸, 4 bolts ⑷, and 4 bolts ⑶.
CAUTION:
●The cushion need to be removed in advance.
●The parts should be protected during the disassembly process.
●When reassembling, first check if there is any pressure on the wire to prevent short circuit when tightening
the bolt.
