Reference [Mixer]
This section explains the functions and operation of the mixer built into the MRS-8.
About the mixer
The MRS-8 incorporates a mixer that processes the audio
track output signals as well as the drum kit/bass program
output signals (the drum track/bass track) into a stereo
mix that is supplied to the MASTER OUTPUT jacks.
The mixer adjusts parameters such as level, panning, EQ,
and send/return effect intensity for each track.
The level for the audio tracks is adjusted with the
corresponding faders in the fader section.
The [MASTER] fader adjusts the stereo mix/master track
volume.
The level of the drum track and bass track is adjusted with
the [RHYTHM] fader after selecting either drum track or
bass track with the [DRUM/BASS] key.
Similarly, mute on/off for the audio tracks is switched
using the status keys (1 – 4, 5/6, 7/8), and mute on/off for
the drum/bass track is switched using the [RHYTHM]
status key.
The [MASTER] status key switches the master track
between recording and playback.

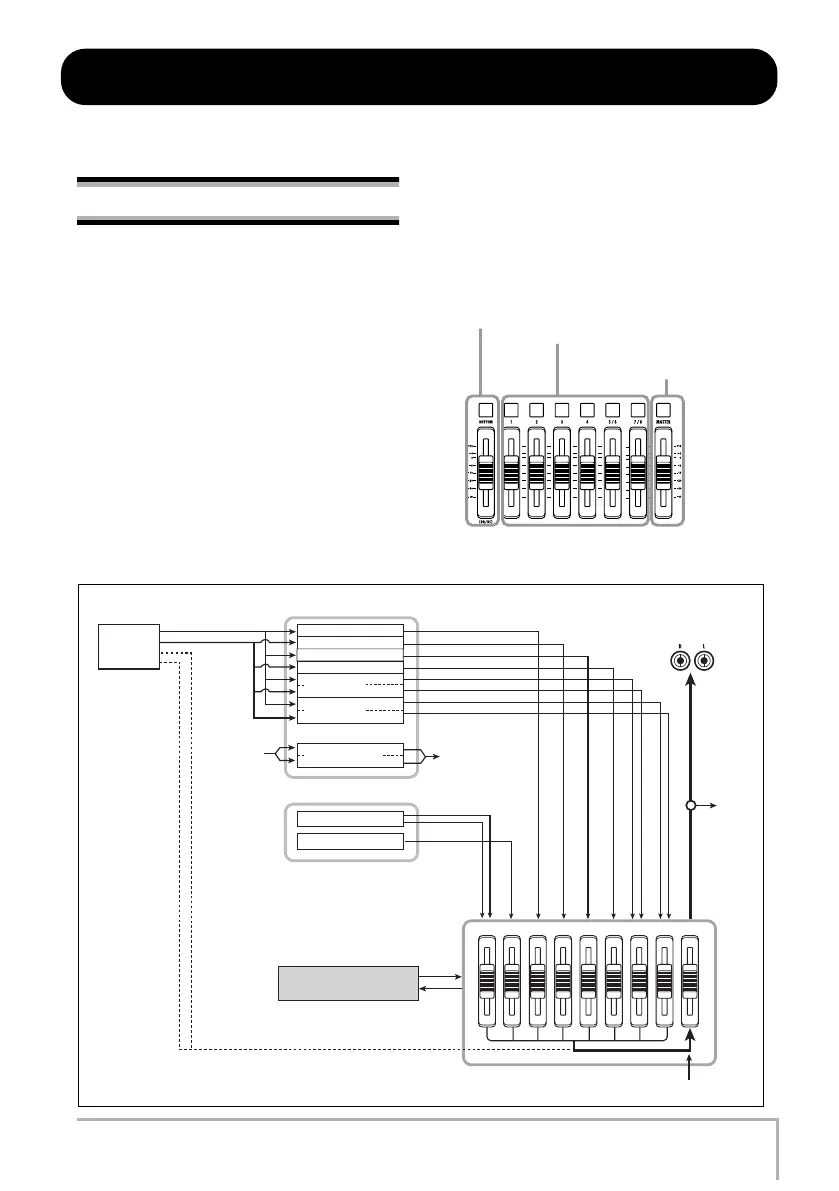

Control of drum track/bass track
Control of tracks 1 - 8
Control of stereo mix or master
track
