Zoom PodTrak P4 Quick Guide

2

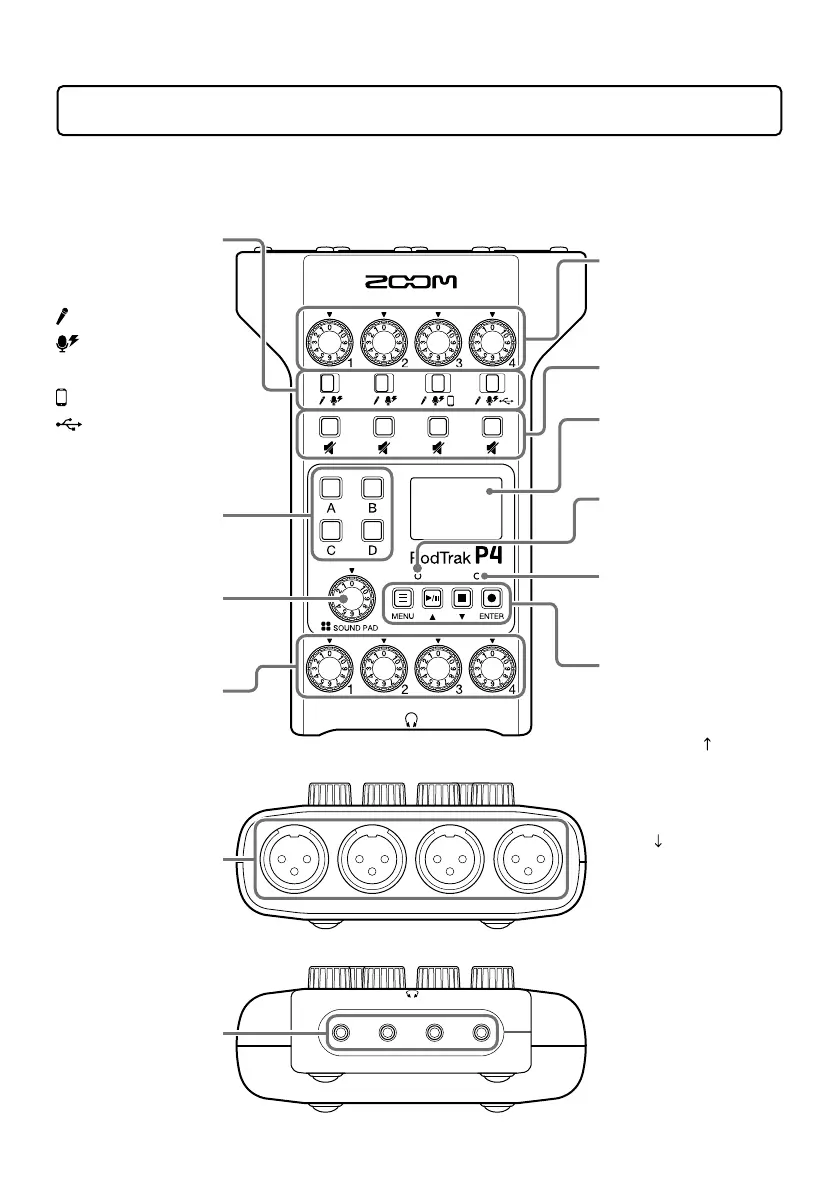

Functions of parts
■
Top/Back/Front
INPUT knobs 1–4
Use to adjust input
signal levels.
MUTE buttons 1–4
Use to mute (lit) and
unmute (unlit) signals.
INPUT SELECT switches
1–4
Set these according to the
connected equipment.
Dynamic mic
Condenser mic
(supplies +48 V
phantom power)
Smartphone, etc.
USB audio return
signal output from
computer
Display
This shows the recorder
status and MENU screen.
MENU button
Use to open the MENU
screen and to return to
the previous screen.
PLAY/PAUSE/
button
Use to play/pause
recorded les.
Use to move the cursor
up in the MENU screen.
STOP/
button
Use to stop recording/
playback.
Use to move the cursor
down in the MENU
screen.
REC/ENTER button
Use to start/stop
recording.
Use to conrm a
selection in the MENU
screen.
PHONES knobs 1–4
Use to adjust the
volumes of signals
output from PHONES
jacks 1–4.
SOUND PAD A–D
Use these to play the
sounds assigned to
them.
SOUND PAD knob
Use to adjust SOUND
PAD volumes.
PLAY indicator
This lights during playback
and blinks when paused.
Input jacks 1–4
These input jacks have
built-in mic preamps.
PHONES jacks 1–4
These output the signals
adjusted by PHONES
knobs 1–4.
REC indicator
This lights during
recording and blinks when
recording is paused.

Zoom PodTrak P4 Specifications

Audio Specifications

number of input channels	4 (mono/stereo)
number of output channels	1 (headphone × 4)
phantom power	+48 V

Ports & Interfaces

connectors	MIC XLR jacks (2: HOT)
smartphone connection jack	TRRS mini jack (4 contacts, TIP: L, RING1: R, RING2: GND, SLEEVE: MIC)
USB	USB Type-C

Power

dc power supply	5 V USB Type-C
battery type	2 AA batteries (alkaline, NiMH or lithium)
ac adapter	DC 5 V/1 A

Battery Life

alkaline batteries operation time	about 4 hours
nimh batteries operation time	about 4.5 hours
lithium batteries operation time	about 9 hours

Weight and Dimensions

external dimensions	112 mm (W) × 155 mm (D) × 47 mm (H)
weight	290 g
