ADSL Modem User’s Manual
7
77
7

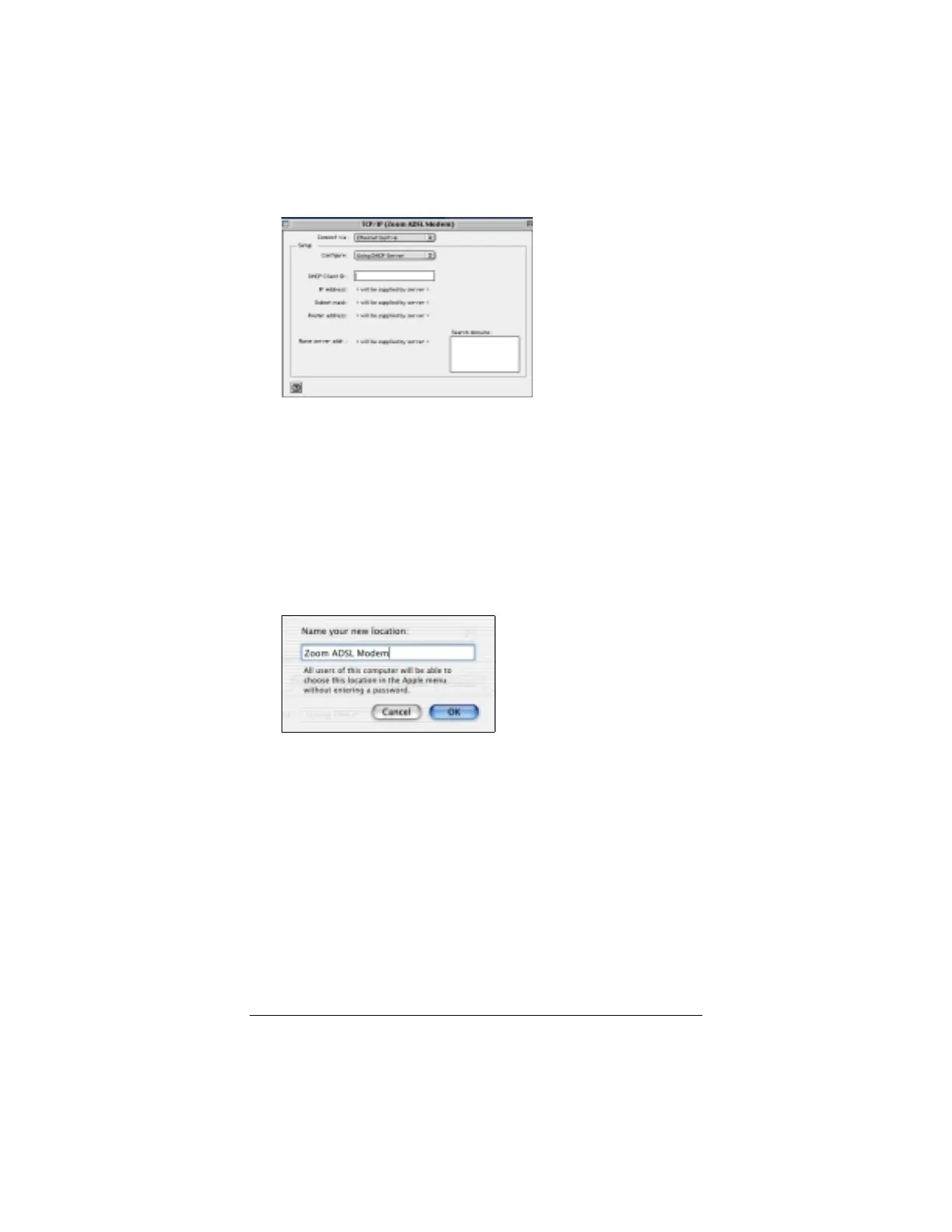

Close the
TCP/IP
dialog box. You will be asked if you want
to save the changes. Click
Save
.
For Mac OS X
For Mac OS XFor Mac OS X
For Mac OS X
1
11
1
From the
Dock
, choose
System Preferences
and then
Network
. The
Network
pane appears.
2
22
2
From the
Location:
drop-down list box, select
New
Location…
. In the box, type a name of your choosing, such
as “
Zoom ADSL Modem
,” and click
OK
.
3
33
3
Under the
Configure
drop-down tab, choose
Built-in
Ethernet
or
Ethernet
.
4
44
4
Make sure that the
TCP/IP
tab is foremost.
Make sure that
Using DHCP
is highlighted in its
Configure:
dropdown list box. Do not enter anything into the
DHCP
Client ID
field.
Note:
If you want to use a static IP address—for example, if
you were setting up a virtual server (page 22) or a DMZ (page
25)—you would highlight
Manually
in the
Configure:
menu
and then enter the static IP address, subnet mask, etc.
