Zotac H67ITX series User Manual

17

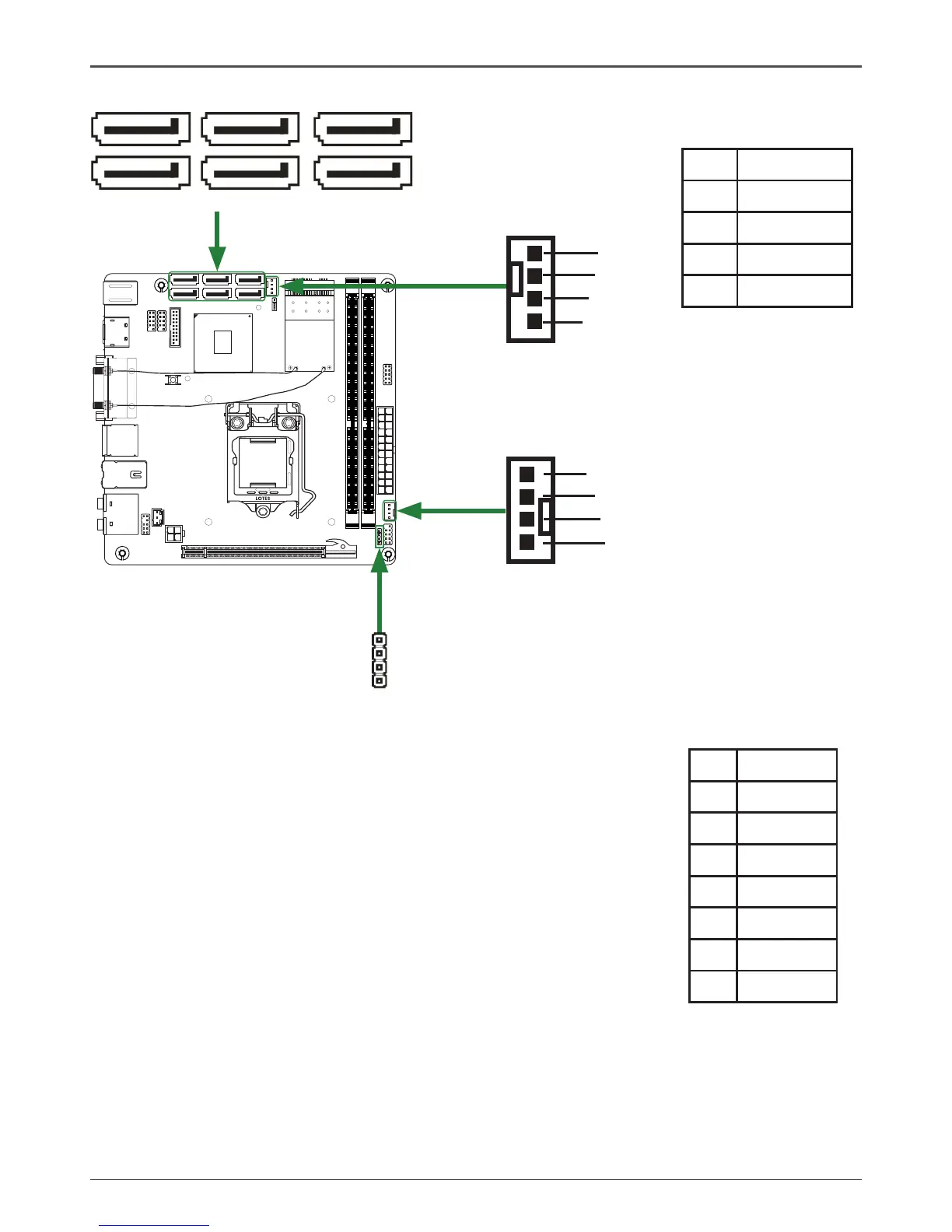

Hardware Installation
Speaker Header-SPK1
Serial-ATA (SATA) Connectors (SATA1~6)
The Serial ATA connector is used to connect the Serial ATA
device to the motherboard. These connectors support the
thin Serial ATA cables for primary storage devices. The
motherboard incorporates four SATA II ports with maximum
transfer rate up to 3.0 Gb/s each and two SATA III ports with
maximum tranansfer rate up to 6.0 Gb/s each.
SPK1-Pin Denition
PIN Assignment
1 VCC
2 NC
3 NC
4 SPK-
SATA-Pin Denition
Pin Signal
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
Fan Connectors
There are two fan connectors on the motherboard, including
system fan connector-SYSFAN1 and CPU fan connector-CPU-
FAN1.
SPK1
1
120
240
121
120
240
121
1.5V 1.5V
115XLM
LGA1156
REMOVE
LOTES
+
SATA1
CPUFAN1
GND
+12V
Sense
Control
SATA2
SATA3
SATA4 SATA6
SATA5
GND
+12V
Sense
Control
SYSFAN1
