Zotac H67ITX series User Manual

18
Intel H67-ITX series Motherboard
Mini PCIe Slot-MINI_PCIE1
There is one Mini PCIe slot, reserved for the WiFi Module.
PCIe x16 Slot-PCIE_X16
There is one PCIe x16 slot reserved for graphics card. It is fully compliant with PCIE 2.0
specication.
Jumper Settings
This section explains how to congure the motherboard’s hardware. Before using your
computer, make sure all jumpers and DRAM modules are set correctly. Refer to this section
whenever in doubt.
CMOS Clear Jumper-JP1
Close Open * = Default setting.
If you want to clear the system conguration, use the JP1 (Clear CMOS Jumper) or SW1 (Clear CMOS Button) to
clear data.
Notice:
1. Be sure to save the CMOS setting when exit the CMOS.
2. If the CPU is frequency multiplier locked, no CPU speed change will be seen even if the
frequency multiplier setting in CMOS setup is changed.
JP1 Selection
1-2* Normal*
2-3 CMOS Clear
1
1
120
240
121
120
240
121
1.5V 1.5V
115XLM
LGA1156
REMOVE
LOTES
+
151
252
MINI_PCIE1
PCIE_X16

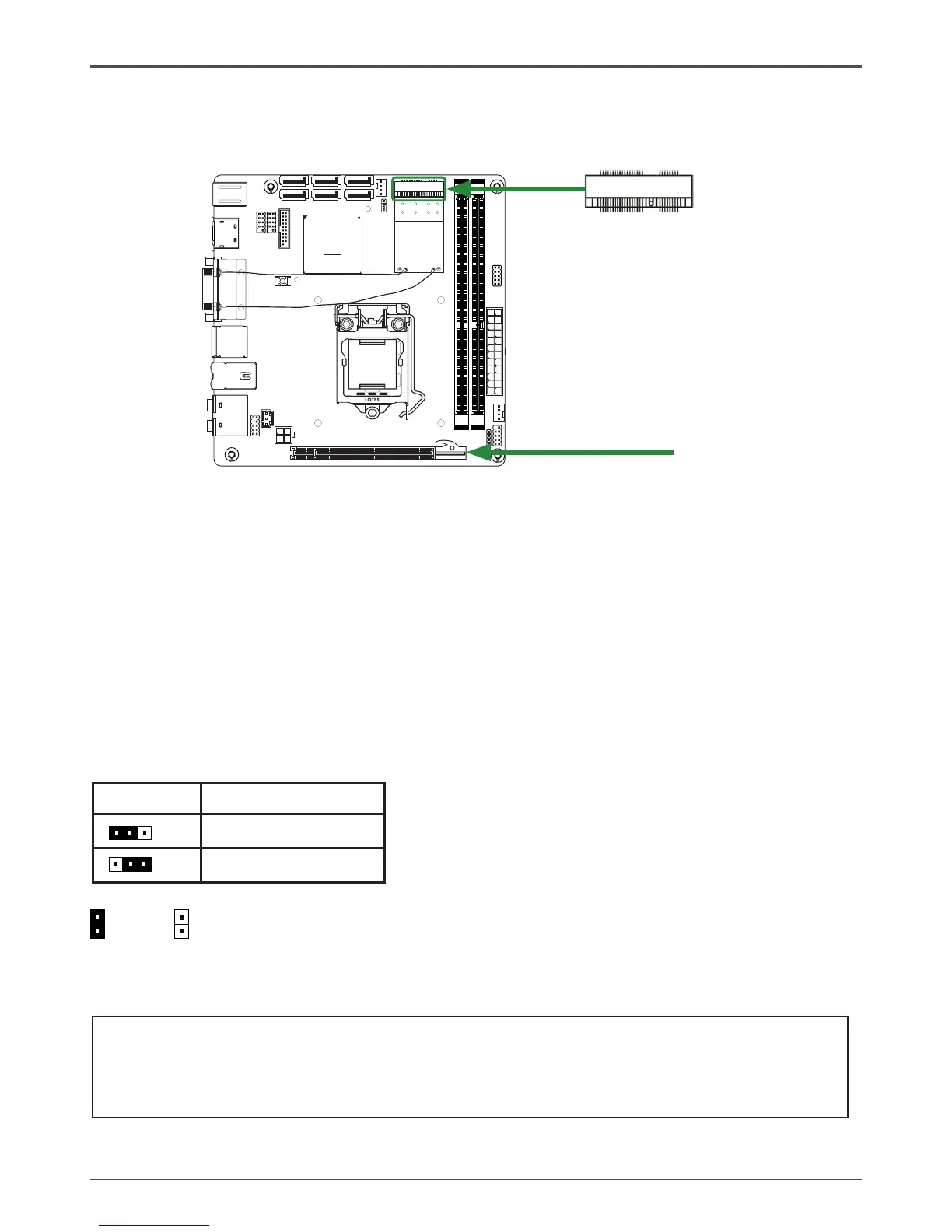

Expansion Slots
The motherboard contains two expansion slots, one Mini PCIe slot and one PCIe x16 slot.
